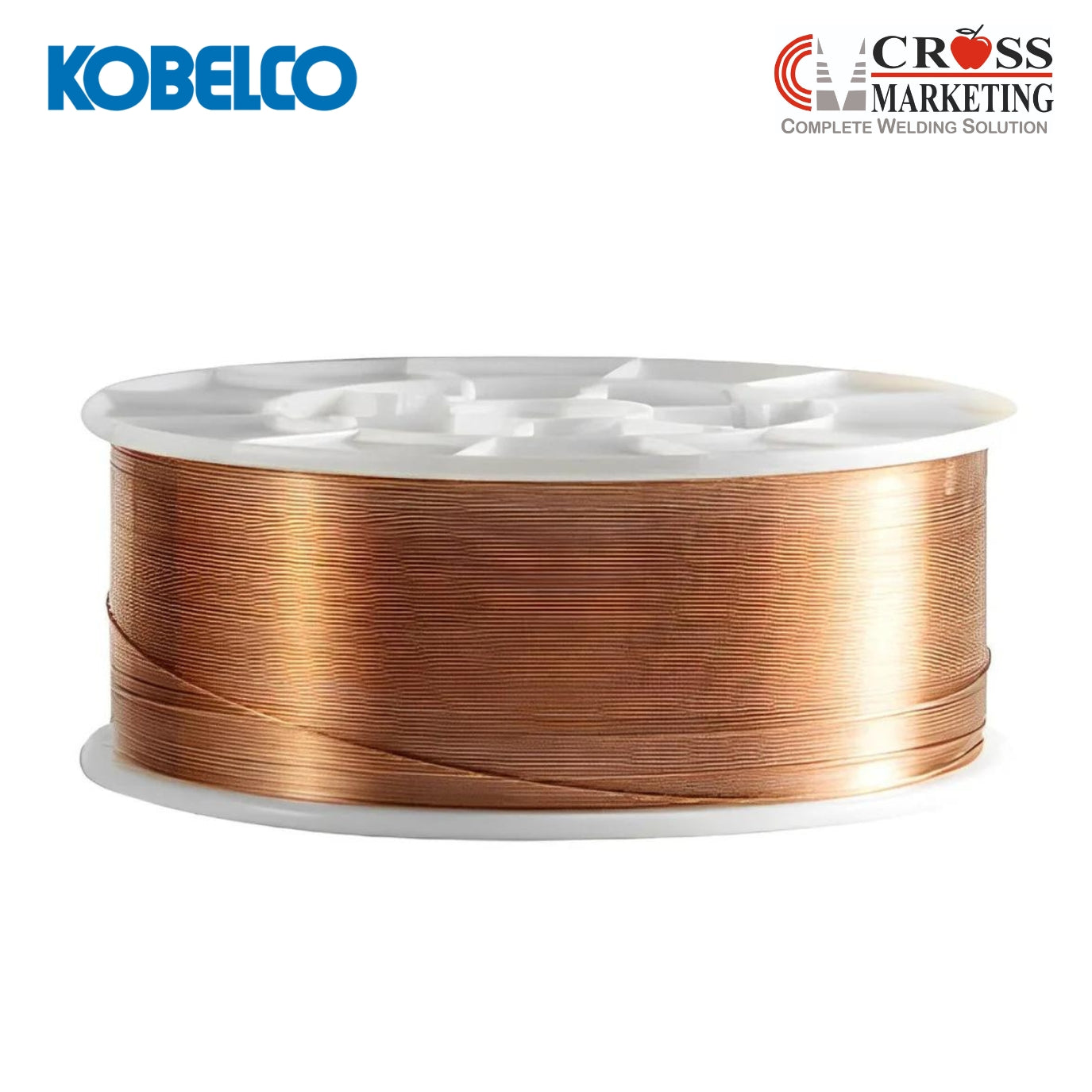

Kobelco; AWS A5.17 F7A2-EH14, F6P2-EH14; G-80/ US-36; SAW (flux and wire combination)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.17 F7A2-EH14, F6P2-EH14; G-80/ US-36; SAW (flux and wire combination)

Kobelco; AWS A5.17 F7A2-EH14, F6P2-EH14; G-80/ US-36; SAW (flux and wire combination)

Description

Features:
  • Suitable for welding of medium or heavy thick plate
  • Good Mechanical properties in multi-pass welding
Classification: AWS A5.17 F7A2-EH14, F6P2-EH14
Type of flux: Fused
Redrying Conditions: 150-350°Cx1h
Polarity: AC



Packaging data

Flux Mesh Can



G-80 12x65
12x200
20x200
32x200
20xD
 25kg
25kg
25kg
25kg
25kg



Volume mm 240W, 350H, 240L



Wire φ mm Spool Coil Drum
US-36 1.6 10kg
 20kg -
 -
 -
 -

2.0 10kg
 20kg -
 -
 -
 -

2.4 10kg
 -
 25kg 76kg -
 300kg

3.2 - -
 25kg 76kg -
 300kg

4.0
 - -
 25kg 75kg 150kg 300kg

4.8 - -
 25kg 75kg 150kg -

6.4 - -
 25kg 78kg
 159kg -
Volume mm 240W, 110H, 240L 300W, 110H, 300L 430W, 90H, 430L 740W, 110H, 740L 840W, 110H, 840L 680φ,
770H(2.4φmm)
600φ, 920H(3.2,4.0φmm)

Composition (wire mass%)

  Typical Guarantya
C 0.12 0.10-0.20
Si 0.03 0.10
Mn 1.95 1.70-2.20
P 0.013 0.030
S 0.005 0.030
Cu 0.11 0.35
Note: aSingle values are maximium.

Composition (weld metal mass %)


 Typical
C 0.09
Si 0.46
Mn 1.41
P 0.018
S 0.011

Weld mechanical properties

  Typical Guaranty
0.2%YS
(MPa)		 410 360 400min. 330min.
TS
(MPa)		 520 500 483-655 410-550
EI on 4d
(%)		 29 35 22min. 22min.
IV -29°C
 (J)		 43 82 27min. 27min.
PWHT
 (°Cxh)		 AW 620x1 AW 620±15x1
