Description

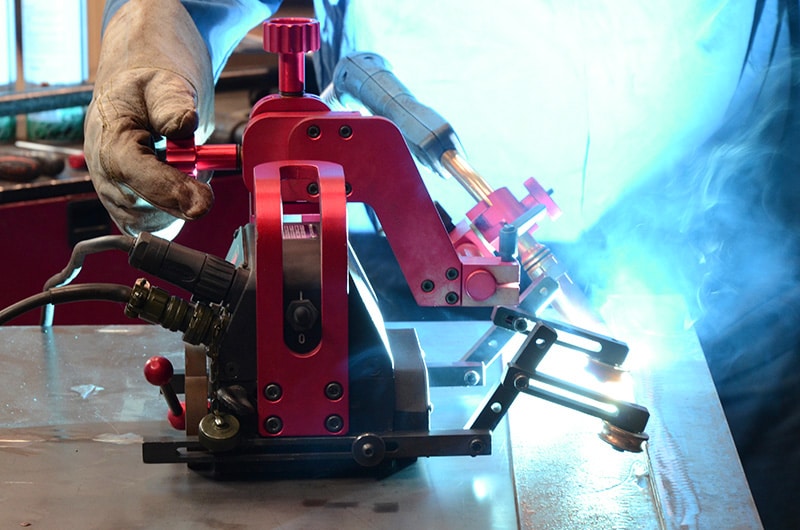

Gecko is a portable trackless welding tractor that features a 4-wheel drive system with magnetic traction and a control loop feedback mechanism that provides speed stabilization in all welding positions. Constant, continuous, and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and decreasing filler metal usage, substantially.
Users can select arc ignition times of up to 5 seconds at the start and end of tractor travel to create a preferred weld fill at both ends. A wide range of accessories makes Gecko suitable for a variety of positions and applications. A compact design tractor weighing 8 kg can be carried anywhere.
Specification
| GECKO | GECKO HS | |
| Voltage | 1~ 115–230 V, 50–60 Hz 42 V, 50–60 Hz | 1~ 115–230 V, 50–60 Hz 42 V, 50–60 Hz |
| Power | 20 W | 20 W |
| Welding position (according to EN ISO 6947 and AWS/ ASME) | PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G PG / 3F / 3G (contact dealer) | PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G |
| Torch diameter | 16–22 mm (0.63–0.87’’); up to 35 mm (1.38”) option | 16–22 mm (0.63–0.87’’); up to 35 mm (1.38”) option |
| Minimum radius of curved workpiece surface | OD 1000 mm (39.4”) ID 1250 mm (49.2”) | OD 1000 mm (39.4”) ID 1250 mm (49.2”) |
| Minimum workpiece thickness | 4 mm (0.16’’ | 4 mm (0.16’’) |
| Ground clearance | 4 mm (0.16’’ | 4 mm (0.16’’ |
| Horizontal pulling force | 150 N | 150 N |
| Vertical pulling force | 100 N | N/A |
| Cross slide adjustment range | 0–35 mm (0–1.38’’) up down, left-right | 0–35 mm (0–1.38’’) up down, left-right |
| Horizontal speed | 0–110 cm/min (0–43.3 in/min) | 5–220 cm/min (1.5–86.6 in/min) |
| Vertical speed | 0–100 cm/min (0–39.4 in/min) | N/A |
| Weight | 8 kg (18 lbs) | 8 kg (18 lbs |
| Welding settings storage | 1 (last used) | 1 (last used) |
| Product Code (115–230 V, 50–60 Hz, plug EU) | WOZ-0466-10-20-00-0 | WOZ-0528-10-20-00-0 |
| Product Code (115–230 V, 50–60 Hz, plug UK) | WOZ-0466-10-10-00-0 | WOZ-0528-10-10-00-0 |
| Product Code (42 V, 50–60 Hz | WOZ-0621-10-04-00-0 | WOZ-0622-10-04-00-0 |
