| Pointers | Pro-5 PB with electric motor | PRO-5 PB with pneumatic motor | PRO 5-PB with battery motor |
|---|---|---|---|
| Electric motor | 1.100 W | - | - |
| Supply | 110-120 V / 50-60 Hz; 220-240 V / 50-60 Hz | - | 18 V DC, 5.2 Ah |
| Rotational speed (nominal) | gear 1 - 0 to 113 rpm; gear 2 - 0 to 318 rpm | 90 rpm | - |
| Pneumatic drive | - | 800 W | - |
| Air requirement | - | 0,6 MPa (87 PSI) | - |
| Air consumption | - | 1600 l/min (49.4 CFM) | - |
| Pipe diameter | 32 mm ID to 114 mm OD (1.26-4.49") | 32 mm ID to 114 mm OD (1.26-4.49") | 32 mm ID to 114 mm OD (1.26-4.49") |
| ID 25-32 mm (1"-1.25") /option/ID | ID 25-32 mm (1"-1.25") /option/ | ID 25-32 mm (1"-1.25") /option/ | |
| 107-133 mm (4.21"-5.24") /option/ | ID 107-133 mm (4.21"-5.24") /option/ | ID 107-133 mm (4.21"-5.24") /option/ | |
| Maximum pipe wall thickness for outside diameter | OD up to 114 mm | 12 mm (0.47") | OD up to 114 mm | 12 mm (0.47") | OD up to 114 mm | 12 mm (0.47") |
| 114-124 mm* | 10 mm (0.39") | 114-124 mm* | 10 mm (0.39") | 114-124 mm* | 10 mm (0.39") | |
| 124-132 mm* | 8 mm (0.31") | 124-132 mm* | 8 mm (0.31") | 124-132 mm* | 8 mm (0.31") | |
| 132-140 mm* | 6 mm (0.24") | 132-140 mm* | 6 mm (0.24") | 132-140 mm* | 6 mm (0.24") | |
| * available with the optional 140 mm spindle disk set | * available with the optional 140 mm spindle disk set | * available with the optional 140 mm spindle disk set | |
| Weight (incl. motor) | 11 kg (24 lbs) | 10 kg (22 lbs) | 10 kg (22 lbs) includes battery |
Description

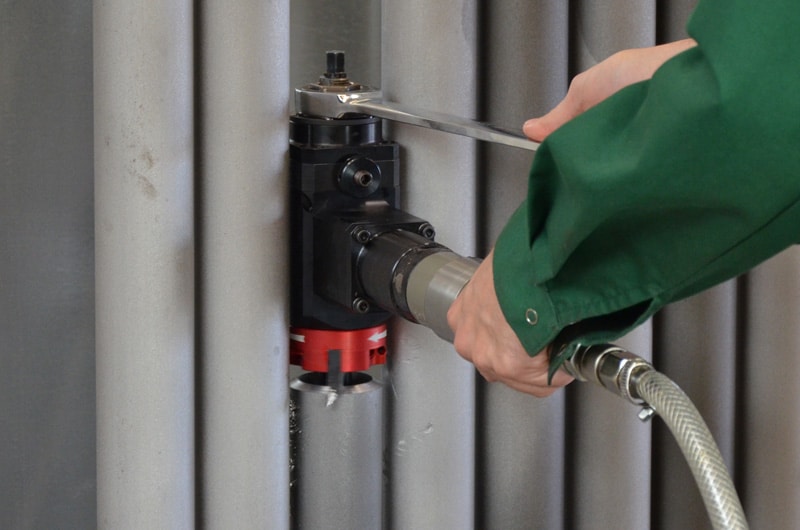

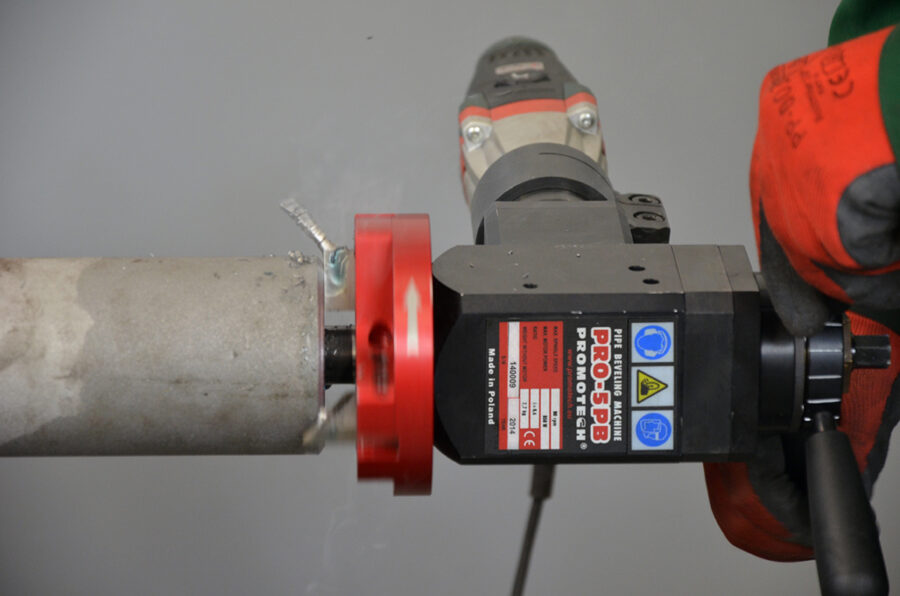

Get the perfect, smooth edges for your pipes with PRO-5 PB compact pipe bevelling machine. Our portable, compact machine milling edges quickly and accurately provides a professional finish on all kinds of pipes made of carbon and stainless steels, aluminum alloys and copper-nickels. Take your pipe edging to the next level with PRO-5 PB compact pipe bevelling machine and make sure you get the job done quickly without compromising on the quality!
