Description

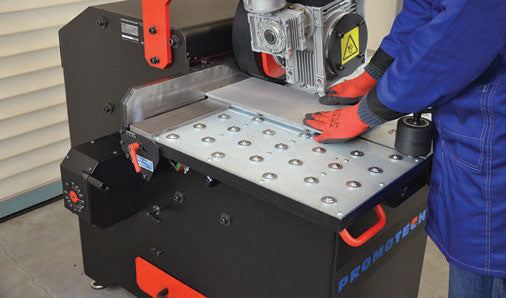

Equipped with a powerful 7.500-watt motor, the stationary beveling machine is a robust and efficient solution for beveling up to 30 mm wide on different-sized workpieces up to 100 mm thick and small pipes from 50 to 150 mm in diameter. The SBM500 features a high-speed rotary milling head that produces a clean, milled surface without thermal distortion or a heat-affected zone. Continuous adjustment of spindle speed and auto-feed rate makes it suitable for different types of steel and aluminum. Optional accessories expand the possible applications of the SBM-500 to deal with long workpieces, pipes 50-150 mm OD, and narrow workpieces with a minimum width of 30 mm.
- Precise setting of bevel angle from 15 up to 60 degrees and bevel width up to 30 mm
- 3D contact wheel control ensures proper workpiece alignment in relation to high-speed rotary milling head
- variable auto-feed to bevel both ferrous and non-ferrous materials
- cutting inserts dedicated for optimal performance on different materials
- easy access to milling head and cutting inserts
- overload protection to prevent motor damage
- SBM-500 streamlines workflow to maximize your production efficiency
Specification
| Voltage | 3~ 400 VAC + N+PE, 50/60 Hz |
| Power | 7500 W |
| Spindle speed (no load) | 500 - 2920 rpm |
| Feed rate | up to 3.3 m/min |
| Feed by contact wheel | YES |
| Bevel angle range | 15 - 60° with continuous angle adjustment |
| Bevel width | up to 30 mm |
| Milling head with 10 inserts | YES |
| Min. dimensions of a bar | 50x150x3 mm |
| Max. workpiece height | up to 100 mm |
| Weight | 850 kg |
| Product Code: | UKS-0573-10-00-00-0 |
