Description

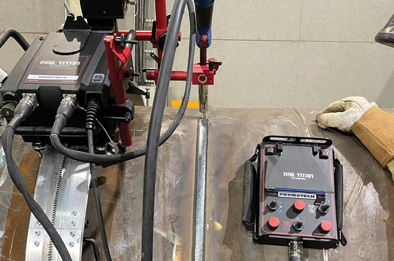

The Rail Titan is a fully modular mechanized tractor that can be custom configured for TIG-MIG-MAG welding, oxy-fuel, or plasma cutting and gouging applications on flat or curved plates, tubes and pipes. Linear torch oscillator produces straight, triangle, trapezoid, and square weld paths. The Rail Titan can travel on the ring, hi-flex, semi-flexible or rigid tracks that can be clamped to ferrous materials with magnetic units and to non-ferrous materials by means of a vacuum track system incl. vacuum pump, and vacuum units.
A digital display with a numeric representation for each motion parameter makes presetting the optimum welding or cutting procedure simple and highly repeatable. Optional accessories include tactile probe seam tracking and a motorized vertical torch slide for automatic torch height control.
| RAIL TITAN Technical specification | ||
| Voltage | 1~100-240V, 50-60Hz | |
| Power | 120 W | |
| Welding position (according to EN ISO 6947 and AWS/ASME) | Horizontal | PA/1F/1G PB/2F PC/2G PD/4F PE/4G |
| Vertical | PF/3G PG/3F (contact your dealer) PG/3G | |

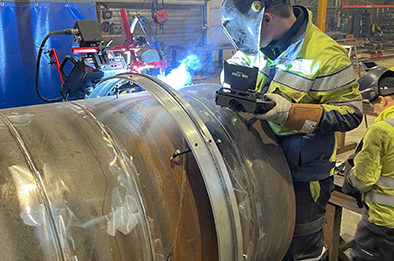

| Fixing on pipes and round workpieces | Ring tracks (OD) | 200 mm (8”) – 3 m (10 ft) |
| Hi-flex tracks (OD) | Minimum 1.5 m (5 ft) | |
| Hi-flex tracks (ID) | Minimum 3.4 m (11 ft) | |
| Semi-flex tracks (OD) | Minimum 10 m (32 ft) | |
| Torch type | MIG/MAG, TIG, oxy-fuel, plasma | |
| MIG/MAG torch diameter | 16–22 mm (0.63–0.87”) | |
| Minimum workpiece thickness for magnetic clamping | 5 mm (0.2”) | |
| Horizontal pulling force | 400 N | |
| Vertical pulling force | 315 N | |
| Horizontal speed | 0–250 cm/min (0–98 in/min) | |
| Vertical speed | 0–250 cm/min (0–98 in/min) | |
| Oscillation type | Linear | |
| Weld path | Straight, triangle, trapezoid, square | |
| Oscillation width | 0.1–11.8 cm (0.04–4.5”) | |
| Oscillation speed | 10–200 cm/min (5–78 in/min) | |
| Oscillation dwell time at center and on ends | 0–5 s | |
| Maximum oscillator pulling force | 100 N | |
| Weight (incl. standard accessories) | 13 kg (29 lbs) | |
| Product code | WOZ-0654-10-20-00-0 | |
