Description

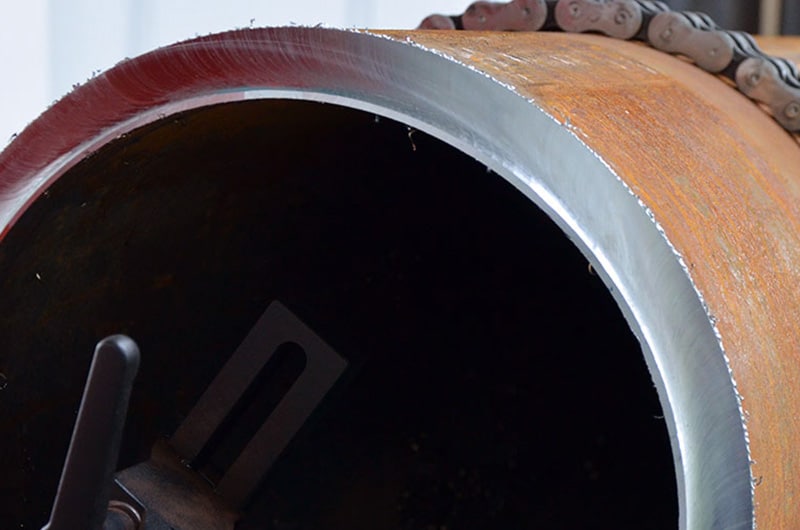

PRO-40 PBS is large diameter stationary machine for beveling and facing pipes, tanks or tubes in a range of diameters from 200 mm (8”) up to 1000 mm (40”). High-speed rotary milling head with replaceable inserts enables effective and efficient machining with bevel widths up to 45 mm (1-3/4”) within a range of angles between 0o and 60o. Optional accessories expand the possible applications of the PRO-40 PBS to create internal bevels up to 20 mm width and either R6 or R8 J-groove end preparation.
- 200mm to 1000mm diameter, capacity to cover most of the common applications
- the continuously adjustable bevel angle between 0 and 60 degrees
- can bevel pipes made of carbon or stainless steel
- optional oval pipe tracking attachment enables consistent land/root face thickness (available either with a brand new machine or for retrofitting)
- maximum allowed pipe weight up to 10.000 kg with optional steel rollers
- overload protection to prevent motor damage
- PRO-40 PBS produces accurate bevels in a fraction of the time required by traditional single-point machining, saving time, and money and improving accuracy
- 2 years of warranty
Specification
| Power supply | 1~ 208 – 230 V, 50/60 Hz 3~ 208 – 230 V, 50/60 Hz |
| External pipe diameter range | 200-1000 mm (8”– 40”) pipes longer than 830 mm; 200-600 mm (8”– 23-5/8”) pipes of 400-830 mm length |
| Maximum allowed pipe weight | 10 000 kg (22 000 lbs)*, if active support equipped with optional steel rollers |
| Min. pipe wall thickness | 5 mm (3/16’’) |
| Pipe fixing | mechanical with chain |
| Feed rate | 100-1100 mm/min |
| Beveling angle range | 0-60° with continuous angle adjustment |
| Max OD bevel width | 45 mm (1-3/4”) |
| Max ID bevel width | 5 mm (1/4”) standard, up to 20 mm (“13/16) - option |
| Beveling type „J” | YES - option |
| „J” type beveling radius | 0.24 in./6 mm or 0.31 in./8 mm |
| Product Code | UKS-0436-10-20-00-1 |
* 6000 kg (13 200 lbs) for plastic rollers of active support (standard)
