Description

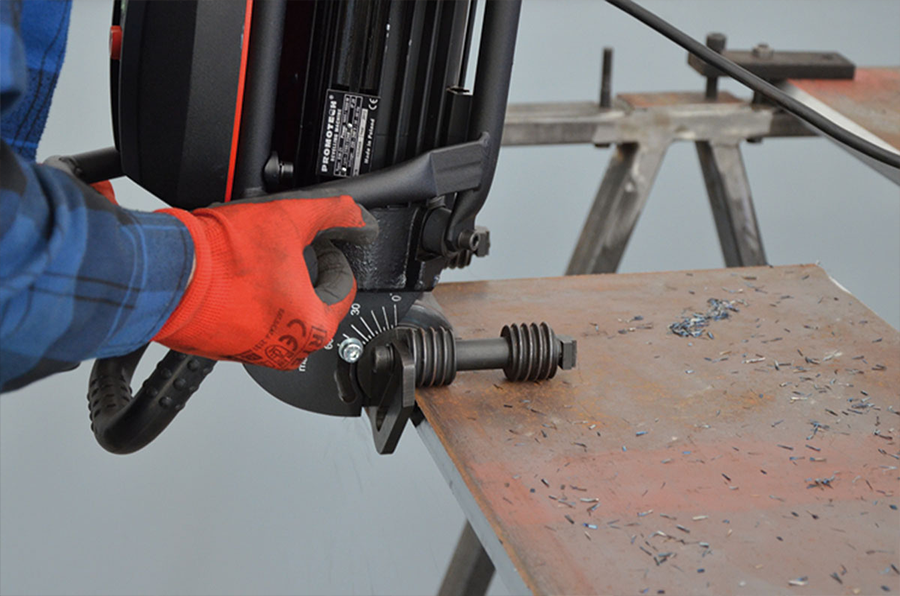

The BM-21 beveling machine can perform bevels up to 21 mm and allows continuously adjustable bevel angles from 0° up to 60°. The BM21 can handle pipes from 150 mm (6″) to 300 mm (12″) in diameter. When equipped with an optional guide, it allows working on pipes with a diameter of more than 300 mm (12″). BM-21 contains an anti-vibration system including specially shaped gripping construction with 4 dampers, enabling more comfortable operation, and minimizing unwanted vibrations.
- Monobloc milling head equipped with 10 square inserts to make the machining process far more efficient and much less operator fatiguing
- easy setting of bevel width up to 21 mm at 45°
- continuous angle adjustment from 0 to 60 degrees
- automatic motor overload protection to prevent motor damage
- quick and simple replacement of cutting inserts
- one universal guide plate for beveling both plates and pipes
Specification
| Voltage | 1~ 220–240 V, 50–60 Hz 1~ 110–120 V, 50–60 Hz |
| Power | 1600 W (for 50 Hz) 1800 W (for 60 Hz) |
| Spindle speed | 2780–3340 rpm (at 230 V) 2740–3290 rpm (at 115 V) |
| Tooling | integrated milling head with 10 square TCT inserts |
| Bevel angle | 0-60° with continuous angle adjustment |
| Max bevel width | 21 mm (13/16″) |
| Weight | 23 kg (51 lbs) |
| Product Code 220–240 V, 50–60 Hz | UKS-0461-10-20-00-0 |
| Product Code 110–120 V, 50–60 Hz | UKS-0461-10-10-00-0 |
