Description

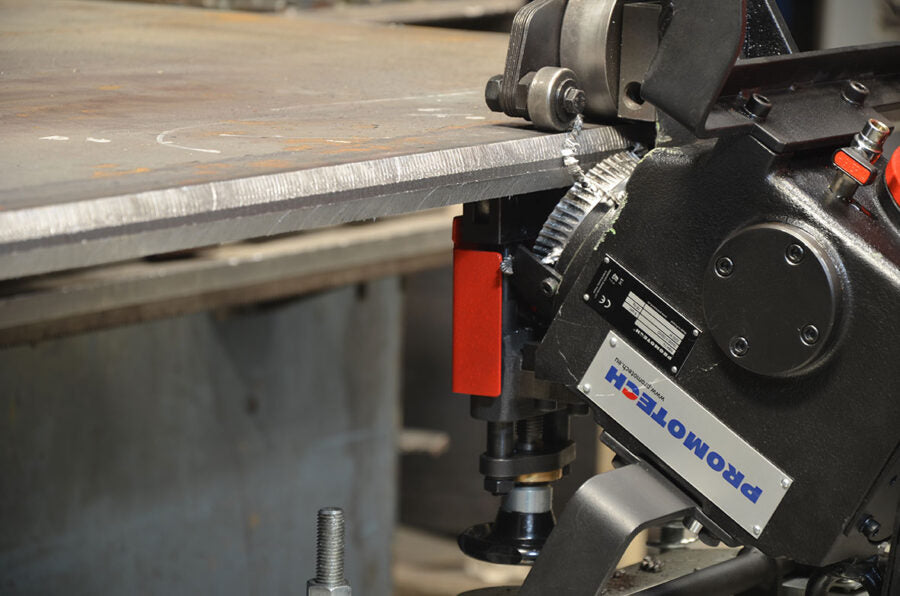

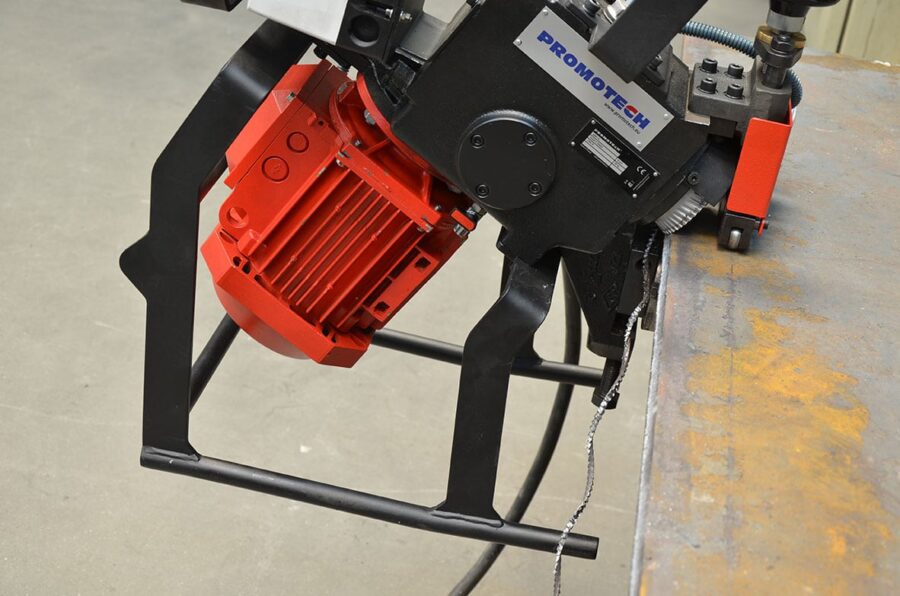

ABM-14 is an auto-feed beveling machine designed for milling plates and pipes made of carbon steel, alloy steel, stainless steel, or aluminum alloys. The machine can bevel up to 12 mm (1/2″) in width just in one run. Depending on the materials, two or more runs are needed to achieve a maximum bevel width of 14 mm (9/16″). The ABM-14 enables producing double-sided bevels without having to flip the plate.
- ABM-14 runs automatically along the edge of the long workpiece
- two optional trolleys to increase ergonomics, comfort, and productivity
- standard shearing cutter for machining stainless/alloyed steel
- two optional shearing cutters dedicated to carbon steel and to aluminum
- stationary operation is possible for machining small workpieces or pipes with ID > 100 mm (4″)
- additional vertical roller guide enables machining concave edges if the curvature radius is 1500 mm or more
- ABM-14 is a low-noise machine
Specification
| Voltage | 3~ 400 V + PE, 50-60 Hz |
| Power | 2200 W |
| Spindle speed | 9 rpm (for 50 Hz); 11 rpm (for 60 Hz) |
| Bevel angle range (ß – depending on angle device in use) |
30° 22.5°, 25°, 35°, 37.5°, 45° (options) |
| Bevel width (b) | up to 14 mm (9/16’’) |
| Maximum bevel in one single run | 12 mm (in 40 Kg/ 392 MPa carbon steel) |
| Minimum plate thickness | 6 mm (1/4’’) |
| Maximum plate thickness | 40 mm (1-9/16’’) |
| Minimum plate width | 55 mm (2-3/16’’) |
| Bevel length per minute | 2.6 m (8.5 ft) for 50 Hz; 3.1 m (10.2 ft) for 60 Hz |
| Minimum pipe ID | 100 mm (4”) |
| Weight | 65 kg (144 lbs) |
| Product Code: | UKS-0639-10-40-00-0 |
