Description

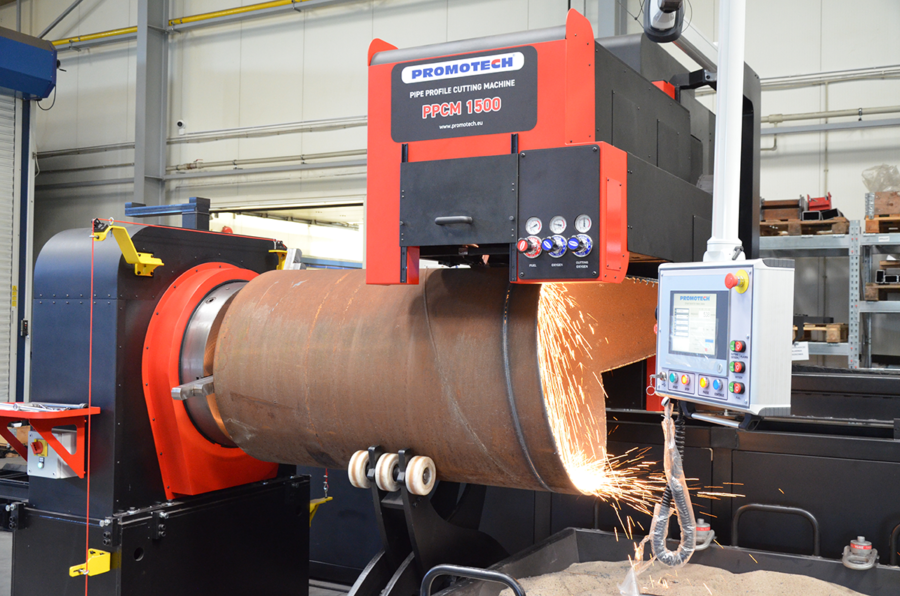

The CNC-controlled Pipe Profile Cutting Machine allows 3D cutting/beveling using oxy-fuel or plasma. Advanced design and top-quality components enable fast and efficient cutting with top-quality results. The most important feature and advantage of PPCM-1500 is its user-friendly software, including a wide scope of standard macros
representing the typical cutting shapes. An integrated library of macros allows for parametric def
- User-friendly software, including a library of macros for most typical cutting shapes
- Automatic compensation of cutting speed depending on the material thickness, torch angle, and cutting direction for the best cutting quality
- Heavy-duty rigid construction
- Well-proven in most demanding environments
- Easy access to gas valves
- Fume exhaust system through spindle (option)
- Additional torch to heat up the material (option)
| Pipe OD diameter | 100 - 1524 mm (4-60") |
| Max. pipe length | 6 or 12 m (19 or 39 ft.) |
| Pipe weight | up to 10 000 kg |
| Wall thickness | 3 – 50 mm |
| Max. cutting angle | 45 degree |
| Cutting method | Oxy-Acetylene Oxy-Propane (Option) Plasma (Option) |
| Ignition: Oxy-fuel / Plasma | Manual / Automatic |
| Pipe support | 2 pcs for up to 6-meter long pipes 4 pcs for up to 12-meter long pipes Additional supports on request |
| Vertical oval compensation mechanism | Included |
| Airconditioning of control cabinet | Available as Option |
| Menu language | English, Croatian, Finnish, French, Russian, Turkish Other languages on request |
| Fume exhaust system | Available as Option |
| Auto nesting of multiple parts | Available as Option |
| Transfer of NC data from CAD: Tekla files, SAT, STEP, IFC, Excel etc. files thru LANTEK flex 3D | Available as Option |
