Description

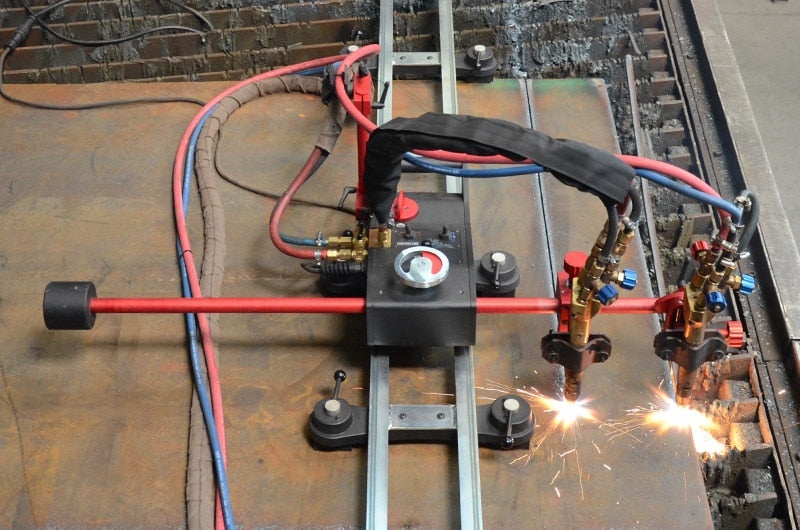

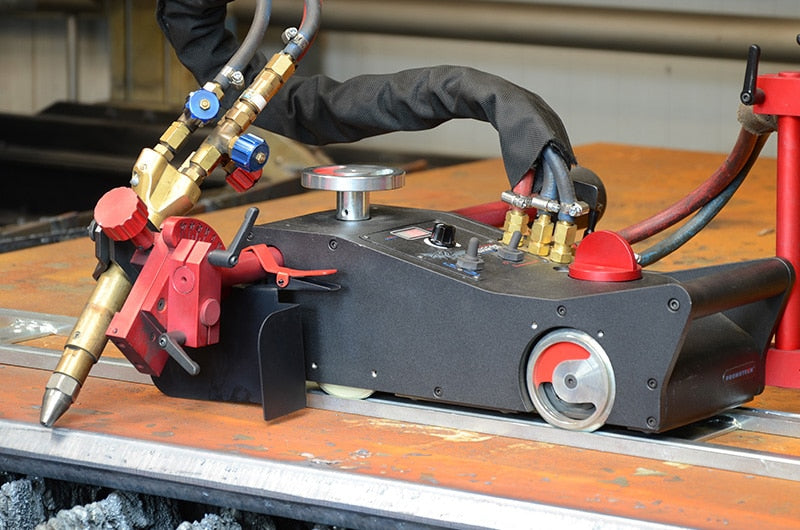

Dragon is a flame-cutting tractor featuring a precise, stable travel speed that produces accurate cuts and bevels. The machine can be used on any standard 6˝ V-grooved track. A wide assortment of optional accessories like machine barrel torch holders, manifolds, and circle-cutting attachments make it useful for a variety of applications. High-speed plasma cutting and beveling are available with Dragon HS.
- Digital speed control and stabilization for high-quality cuts
- Cutting and beveling up to 45° (also parallel, by means of 2 torches)
- LED display with a readout of actual and set speed, and report messages
- Quick drive release switch for easy re-positioning
- Runs on a rail or directly on a workpiece
- Convenient Power Supply 115–230 V, 50–60 Hz
- The 42V AC version is also available
Specification
| Dragon | Dragon HS | |
| Voltage | ~ 115–230 V, 50–60 Hz ~ 42 V, 50–60 Hz | ~ 115–230 V, 50–60 Hz |
| Power | 20 W | 20 W |
| Operating position | horizontal | horizontal |
| Torch diameter | 28–35 mm (1.10–1.38’’) | 28–35 mm (1.10–1.38’’) |
| Ground clearance | 8 mm (0.31’’) | 8 mm (0.31’’) |
| Speed | 0–150 cm/min (0–59 in/min) | 10–300 cm/min (4–118 in/min) |
| Weight | 16.8 kg (37.0 lbs) | 16.8 kg (37.0 lbs |
