Description

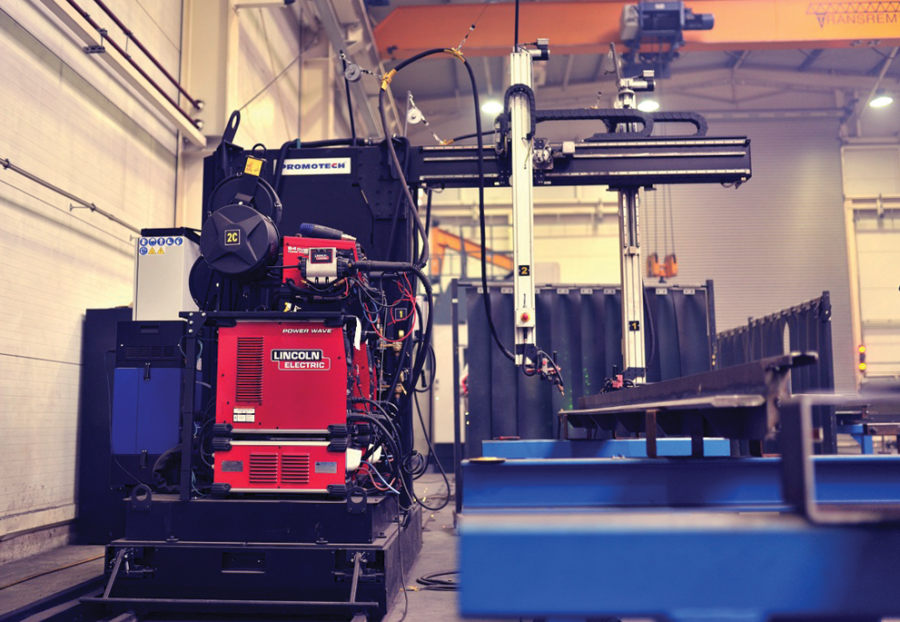

Automatic longitudinal top-quality SAW welding of long structural Box beams and H, I, T. Single or multi-pass automatic fillet/butt welding with a mechanical-electro joint tracking system. Significantly efficient production with improved weld quality.
- Automatic fillet and butt welding with joint tracking
- multi-pass welding
- one-man operation
- reduction of costly over-welding and decrease in filler metal usage
- minimized welding defects and grinding
- reduced non-productive time
- ergonomic machine control with a user-friendly multiple-language interface
| Length of track / welding | 13 m / 10 m Customized length upon request |
| Max workpiece height | 1.5 m (60”) |
| Max welding speed | Up to 1 m / min. |
| Possibility to implement additional functionality e.g. welding length, intermittent welds | YES |
| Max. welding current | 700 A |
| Possibility of changing welding parameters during welding process “on the fly” | Option |
| Basic flux recovery system | Yes |
| Advanced flux recovery system | Upon request |
