Description
BM-20plus is an easy-to-use, portable heavy-duty machine designed for beveling steel plates and pipes prior to welding. The machine is fitted with two rotary milling heads, each holding five 4-sided indexable inserts, allowing smooth operation and exceptional efficiency. BM-20plus has a state-of-the-art electronic motor overload module protecting the operator, the machine, and the tooling. It is also equipped with guide rolls, which make it easy and light to operate.
- Portable, heavy-duty machine
- Maximum 21 mm bevel width
- The continuously adjustable bevel angle between 15° and 60°
- Fitted with two rotary milling heads for smooth and efficient operation
- Continuous milling depth adjustment to fully control the beveling process
- Automatic motor overload protection to prevent motor damage

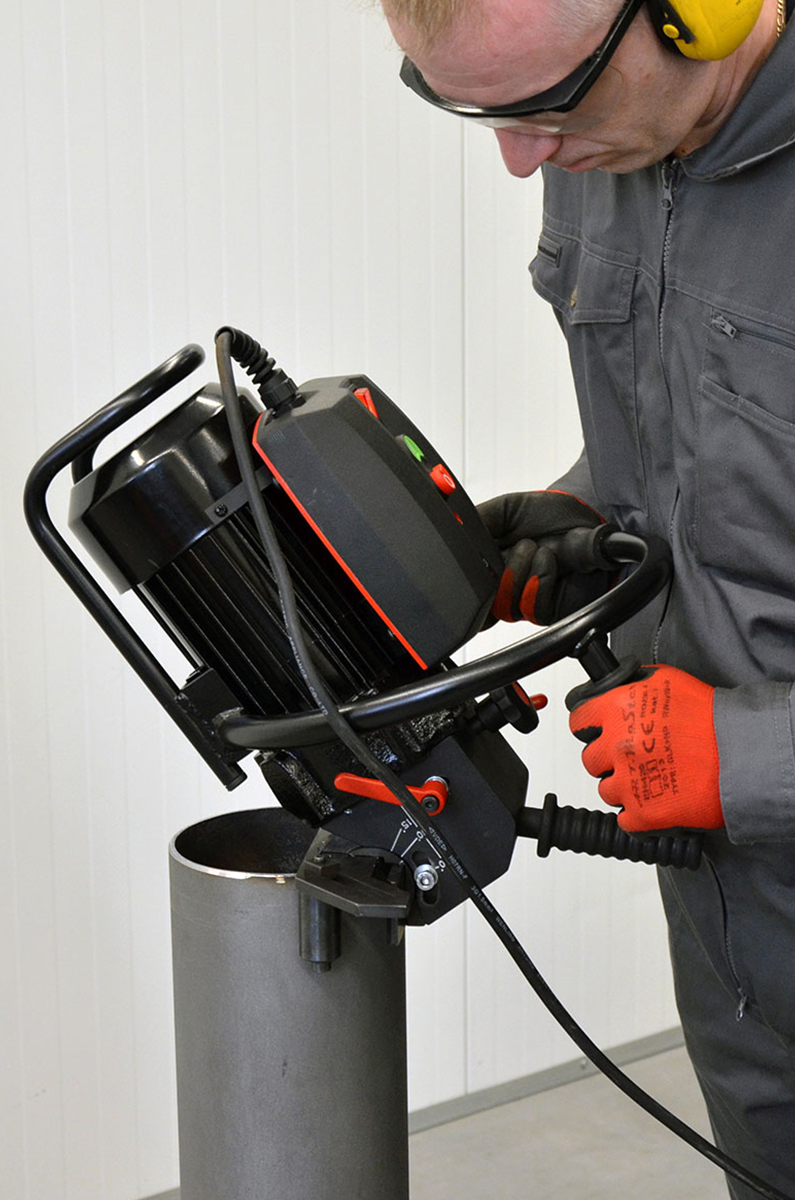

- Optional accessories extend the application possibilities of the BM-20plus for machining pipes, and round plates and creating a flat surface at the of the workpiece (facing off)
Specification
| Power Supply | 1~ 110–120 V, 50–60 Hz 1~ 220–240 V, 50–60 Hz |
| Power | 1550/1600 W (for 50/60 Hz, at 220–240 V) 1700/1850 W (for 50/60 Hz, at 110–120 V) 1600 W (for 60 Hz, at 110–120 V) |
| Spindle speed | 2780–3340 rpm (at 230 V) 2740–3290 rpm (at 115 V) |
| Tooling | Two milling heads with 10 square cutting inserts |
| Maximum bevel width (b) | 21 mm (13/16’’) [drawing 1] |
| Bevel angle (β) | 15–60° [drawing 1]; 0° (option) |
| Weight | 22 kg (49 lbs) |
| Part number | UKS-0539-10-20-00-0 (230V/50Hz) UKS-0539-10-10-00-0 (115V/60Hz) |
