Description

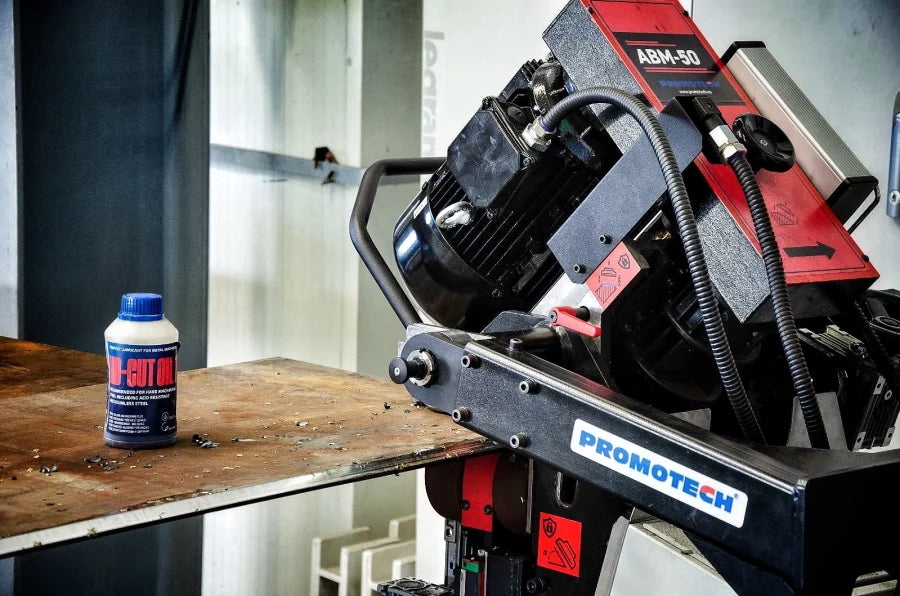

ABM-50 self-propelled machine produces accurate high-quality double-sided bevels up to 50 mm without thermal distortion or creation of heat-affected zone on plate thickness range 8-80 mm (15/16″ – 3 1/8″). The beveller features a unique remote control panel with LCD that shows exact bevel geometry and enables precise adjustment of spindle speed as well as feed speed to optimize them depending on material grade. The precise bevel geometry can be achieved thanks to real-time measurement and live on-screen readings
- auto-feed machining to increase ergonomics, comfort, and productivity
- bevel width up to 50 mm (2″) at 45 degrees
- LCD shows exact bevel geometry and cutting parameters in real time
- precise adjustment of spindle speed and feed rate according to material grade, including stainless steel, duplex, aluminum, etc.
- 180° inversion allows for the creation of a double-sided bevel – no need to rotate or flip heavy material reduces material handling time and expense

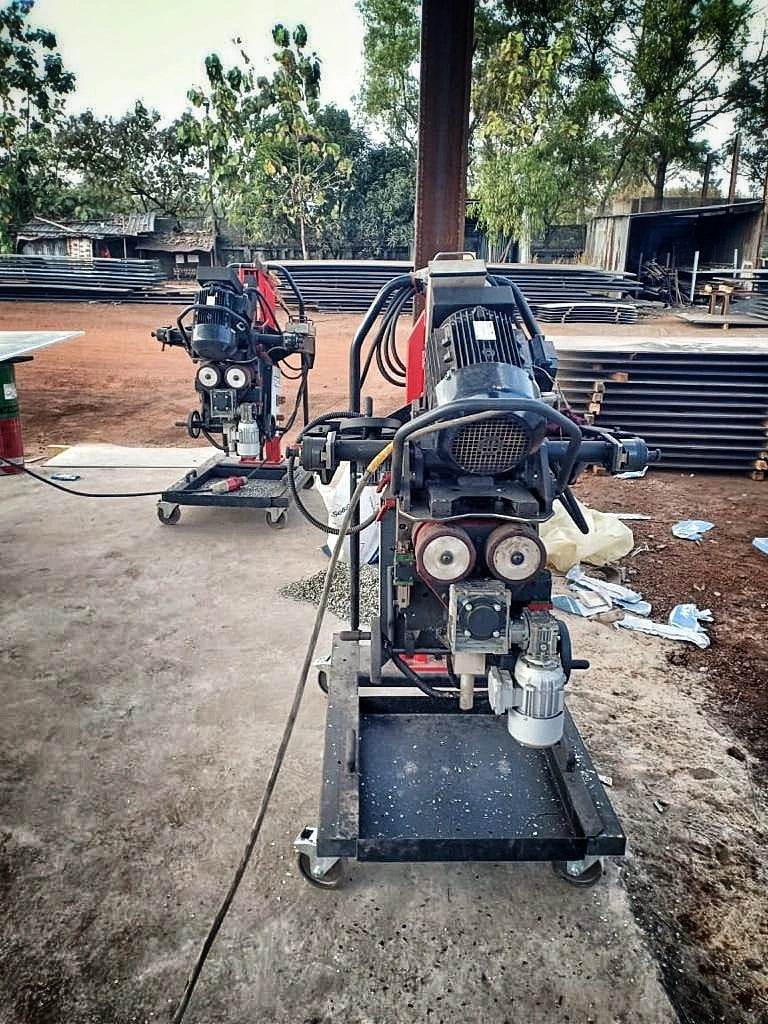

- versatile and transportable on its own trolley
Specification
| Voltage | 3~ 400 V + PE, 50/60 Hz 3~ 480 V + PE, 50/60 Hz |
| Power | 6.5 kW |
| Spindle speed ( no load ) | 300–800 rpm |
| Feed speed | 0–1.2 m/min (47”/min) |
| Bevel angle (ß, Fig. 1) |
15–60° |
| Maximum bevel width (b, Fig. 1) | 50 mm (2”) |
| Maximum depth of cut (d, Fig. 1) allowed per single pass | 6 mm (1/4) |
| Plate thickness | 8–80 mm (5/16–3-1/8”) |
| Required ambient temperature | 0–40 °C (34–104°F) |
| Weight | 320 kg (700 lbs) |
| Product Code: | UKS-0627-10-40-00-0 |
