Description

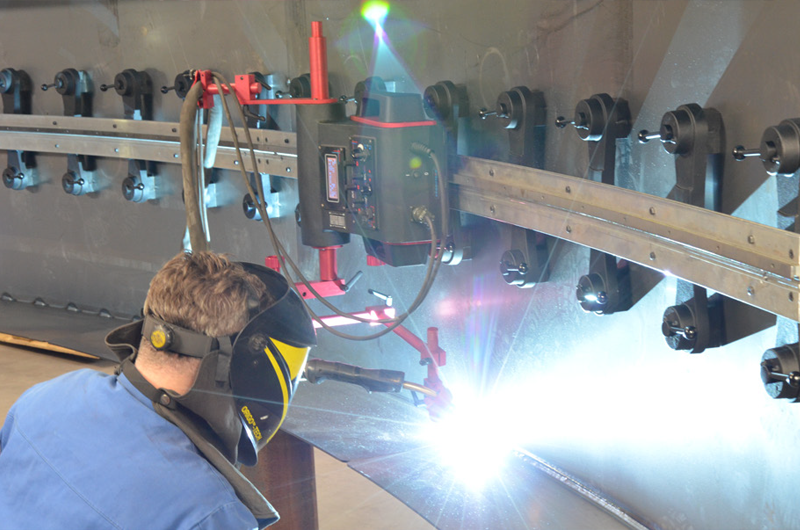

The Rail Bull is a digitally controlled welding tractor with an integrated linear oscillator. The tractor can move along rigid or semi-flexible tracks on flat and curved surfaces. The tracks can be clamped to ferrous materials with magnetic units and to non-ferrous materials by means of a vacuum track system incl. vacuum pump and vacuum units.
Featuring a rack and pinion drive system with electronic speed control, the Rail Bull can produce consistent, high-quality welds in flat, vertical, or horizontal positions.
| Voltage | 1~ 100–240 V, 50–60 Hz 42 V, 50–60 Hz |
| Power | 100 W |
| Welding position (according to EN ISO 6947 and AWS/ASME) | PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G PF / 3G PG / 3G |
| Torch diameter | 16–22 mm (0.63–0.87”); up to 35 mm (1.38”) option |
| Minimum radius of curved workpiece surface | 5000 mm (16 ft) |
| Minimum workpiece thickness | 5 mm (0.2”) |
| Horizontal pulling force | 350 N |
| Vertical pulling force | 150 N |
| Cross slide adjustment range | 0–35 mm (0–1.38”) up‑down, left-right |
| Horizontal speed | 0–120 cm/min (0–47.2 in/min) |
| Vertical speed | 0–110 cm/min (0–43.3 in/min) |
| Weight | 16.5 kg (36.4 lbs) |
| Welding settings storage | 1 (last used) |
| Oscillation type | linear (0 - 100 mm) |
| Oscillation (weaving) pattern | trapezoid, triangle, straight line |
| Oscillation width | 0–50 mm (0–1.9”) |
| Oscillation speed | 0–1500 mm/min (0–59 in/min) |
| Oscillation delay time | 0–5 s (at external and central points) |
| Product Code (115–230 V, 50–60 Hz, plug EU) | WOZ-0482-10-20-01-0 |
| Product Code (115–230 V, 50–60 Hz, plug UK) | WOZ-0482-10-10-01-0 |
| Product Code (42 V, 50–60 Hz) | WOZ-0624-10-04-00-0 |
