Description

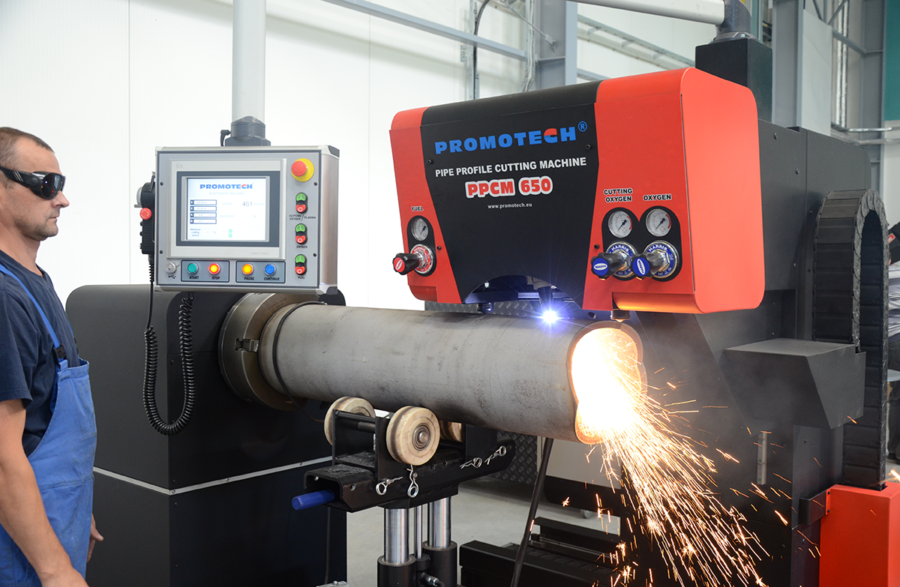

The most important feature and advantage of PPCM-650 is its user-friendly software, including a wide scope of standard macros representing the typical cutting shapes. An integrated library of macros allows for the parametric definition of typical pipe joints and fast shape programming on-site directly from the machines’ control panel just after a short training. Off-line programming is also possible by means of dedicated PPCM SIM PC software containing the same macros library. Pipe joints can be prepared remotely in the office to keep the machine operating, increasing process efficiency and reducing downtime.
- User-friendly software, including a library of macros for most typical cutting shapes
- Automatic compensation of cutting speed depending on the material thickness, torch angle, and cutting direction for the best cutting quality
- Heavy-duty rigid construction
- Well-proven in most demanding environments
- Easy access to gas valves
- Fume exhaust system through spindle (option)
- Additional torch to heat up the material (option)
Specification
| Pipe OD diameter | 50 - 650 mm (2-26") |
| Max. pipe length | 6 or 12 m (19 or 39 ft.) |
| Pipe weight | up to 3 000 kg |
| Wall thickness | 3 – 50 mm |
| Max. cutting angle | 45 degree |
| Cutting method | Oxy-Acetylene Oxy-Propane (Option) Plasma (Option) |
| Ignition: Oxy-fuel / Plasma | Manual / Automatic |
| Pipe support | 2 pcs for up to 6-meter long pipes 4 pcs for up to 12-meter long pipes Additional supports on request |
| Vertical oval compensation mechanism | Included |
| Airconditioning of control cabinet | Available as Option |
| Menu language | English, Croatian, Finnish, French, Russian, Turkish Other languages on request |
| Fume exhaust system | Available as Option |
| Auto nesting of multiple parts | Available as Option |
| Transfer of NC data from CAD: Tekla files, SAT, STEP, IFC, Excel etc. files thru LANTEK flex 3D | Available as Option |
