Description

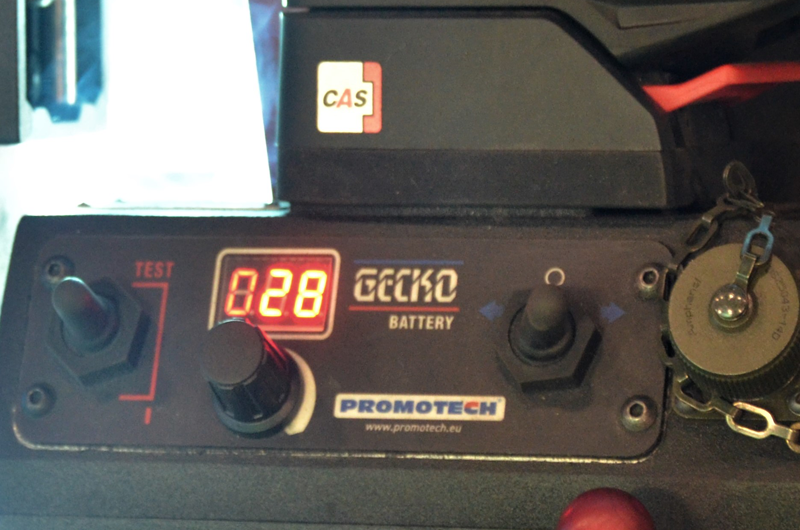

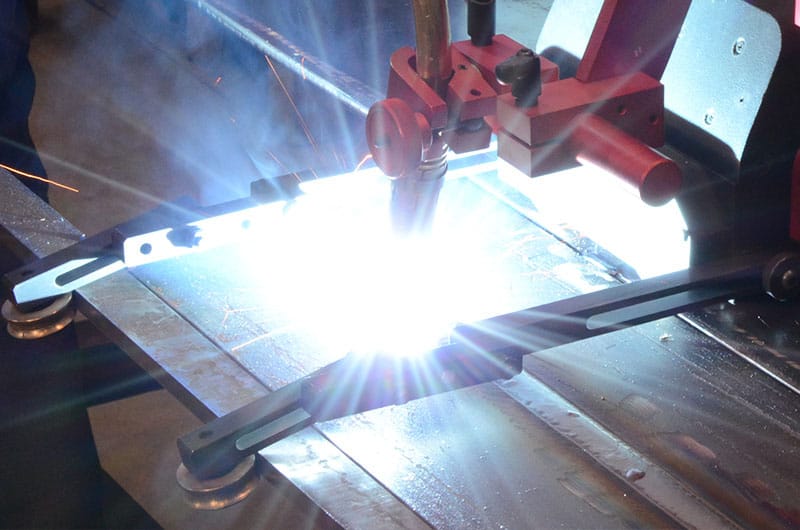

The GECKO BATTERY is a battery-powered trackless welding tractor designed to produce continuous butt and fillet welds using MIG/MAG torches. CAS LiHD battery delivers enough power for handling even the toughest applications with no cables. A 4-wheel drive system with magnetic traction and a feedback loop provide speed stabilization in various welding positions. Constant, continuous, and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and substantially decreasing filler metal usage.
| Voltage | ||
| Power | ||
| Welding position (according to EN ISO 6947 and AWS/ASME) | Horizontal | PA / 1F / 1G PB / 2F PC / 2G PD / 4F PE / 4G |
| Vertical | PF / 3G (ask dealer) | |
| Minimum path curve radius | Outer | 600 mm (23-5/8”) |
| Inner | 800 mm (31-1/2”) | |
| Torch diameter | 16–22 mm (5/8”–55/64”) | |
| Minimum workpiece thickness | 4 mm (0.16”) | |
| Ground clearance | 4 mm (0.16”) | |
| Horizontal pulling force | 150 N | |
| Cross slide adjustment range | 0–35 mm (0–1.38”) up‑down, left-right | |
| Horizontal speed* | 0–110 cm/min (0–43.3 in/min) | |
| Weight | 8 kg (18 lbs) | |
| Welding settings storage | 1 (last used) | |
| Product Code | WOZ-0776-10-00-00-0 | |
