Description

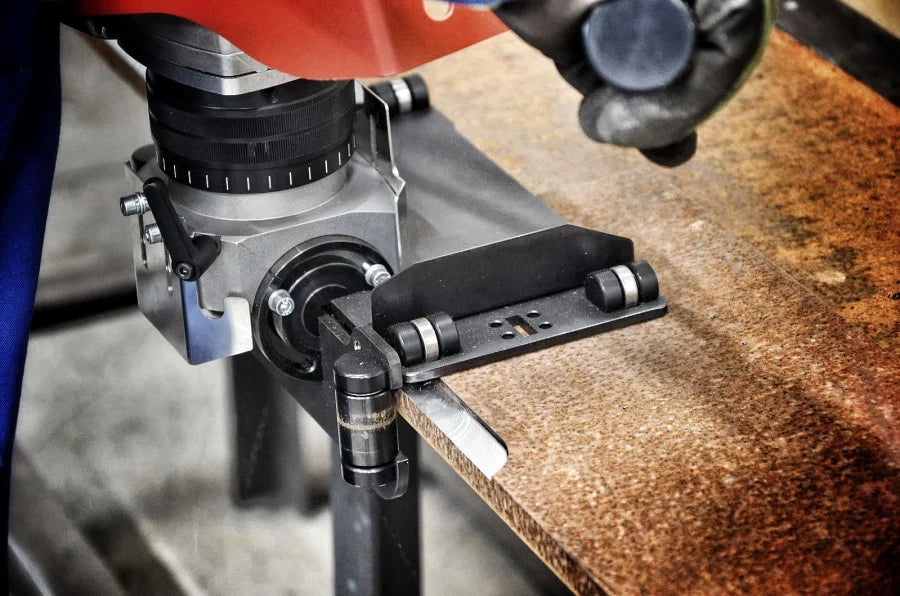

The BM-25 is an easy-to-use, portable, heavy-duty machine, enabling bevels up to 25 mm wide. The beveller is equipped with a powerful motor and fitted with a face milling beveling head, allowing smooth operation and exceptional efficiency. BM-25 enables milling straight edges up to 25 mm bevel width, whereas variable spindle speed facilitates optimizing cutting conditions. Continuously adjustable milling depth and bevel angle between 0 and 90 require no tooling to change.
- Maximum 25 mm bevel width (more than one pass could be required)
- the continuously adjustable bevel angle between 0 and 90 degrees – one milling head in use only
- powerful motor with electronic speed control between 1800 –5850 rpm to work with various materials
- a single head works with the face milling method, allowing less milling resistance and effort for the operator
- overload protection to prevent motor damage
- continuous milling depth adjustment to fully control the beveling process
- adjustable handle and grip for comfort and ergonomics
Specification
| Voltage | 1~ 220-240 V, 50-60 Hz |
| Power | 2200 W |
| Spindle speed (without load) | 1800-5850 rpm |
| Maximum bevel width (b, Fig. 1) | 25 mm (1") |
| Maximum depth of cut (d, Fig. 1) | 12,5 mm (1/2") |
| Bevel angle | 0°-90° 15°-75° (recommended) |
| Minimum workpiece thickness | 2 mm (0.08”) |
| Weight | 12,5 kg (27 lb) |
| Required ambient temperature | 0–40°C (34–104°F) |
| Product Code | UKS-0715-10-20-00-0 |
