Description
ABM-28 self-propelled machine produces accurate high-quality double-sided bevels without thermal distortion or creation of heat affected zone. The machine can work in both travel directions, eliminating the hard physical work of the operator. ABM-28 features an infinitely adjustable bevel angle between – 60 and + 60 and is capable of producing bevels up to 28 mm wide.
- Auto feed beveling on steel plates on top, face, and bottom edges

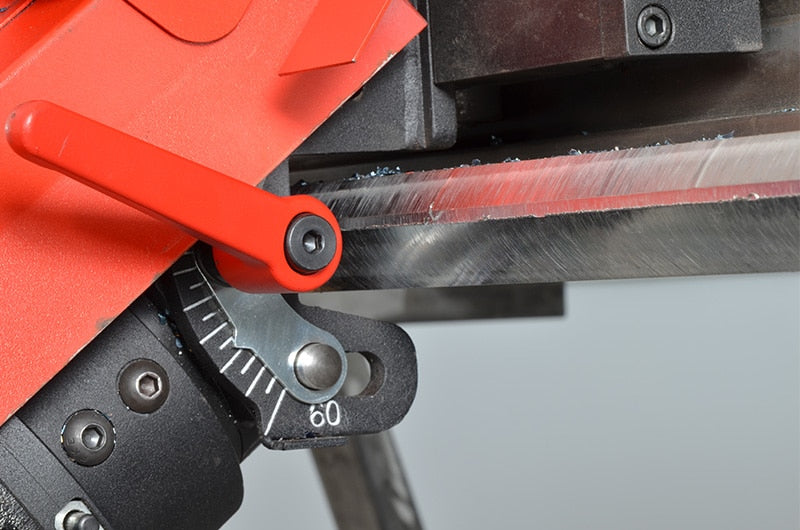

- The continuously adjustable bevel angle between 60 and minus 60 degrees – no need to rotate or flip heavy material, enhancing safety and reducing material handling time and expense
- Max. bevel width from 28 up to 35 mm depending on the beveled angle
- Variable feed control for work on a variety of steel grades and thicknesses up to 35 mm as standard or optionally up to 70 mm thickness
- Motor overload protection to prevent motor damage
- Additional guide tracks are joinable to accomplish the required run length
- J-groove beveling available as an option
Specification
| Voltage | ~220–240 V, 50–60 Hz |
| Power | 1600 W |
| Spindle speed (no load) | 2780 rpm |
| Bevel angle (ß) | 60 to –60° |
| Maximum bevel width (b) | 35 mm (1.38’’) |
| Feed speed | 250 – 500 mm/min |
| Plate thickness | max 35 mm, 36-70 mm (option) |
| Weight (machine with 1 guide track) | 53.5 kg (118 lbs) |
