Description
| Features: |
|
|---|---|
| Classification: | AWS A5.28 ER110S-G |
| Shielding gas: | Ar |
| Identification color: | - |
| Polarity: | DCEN |
Packaging data

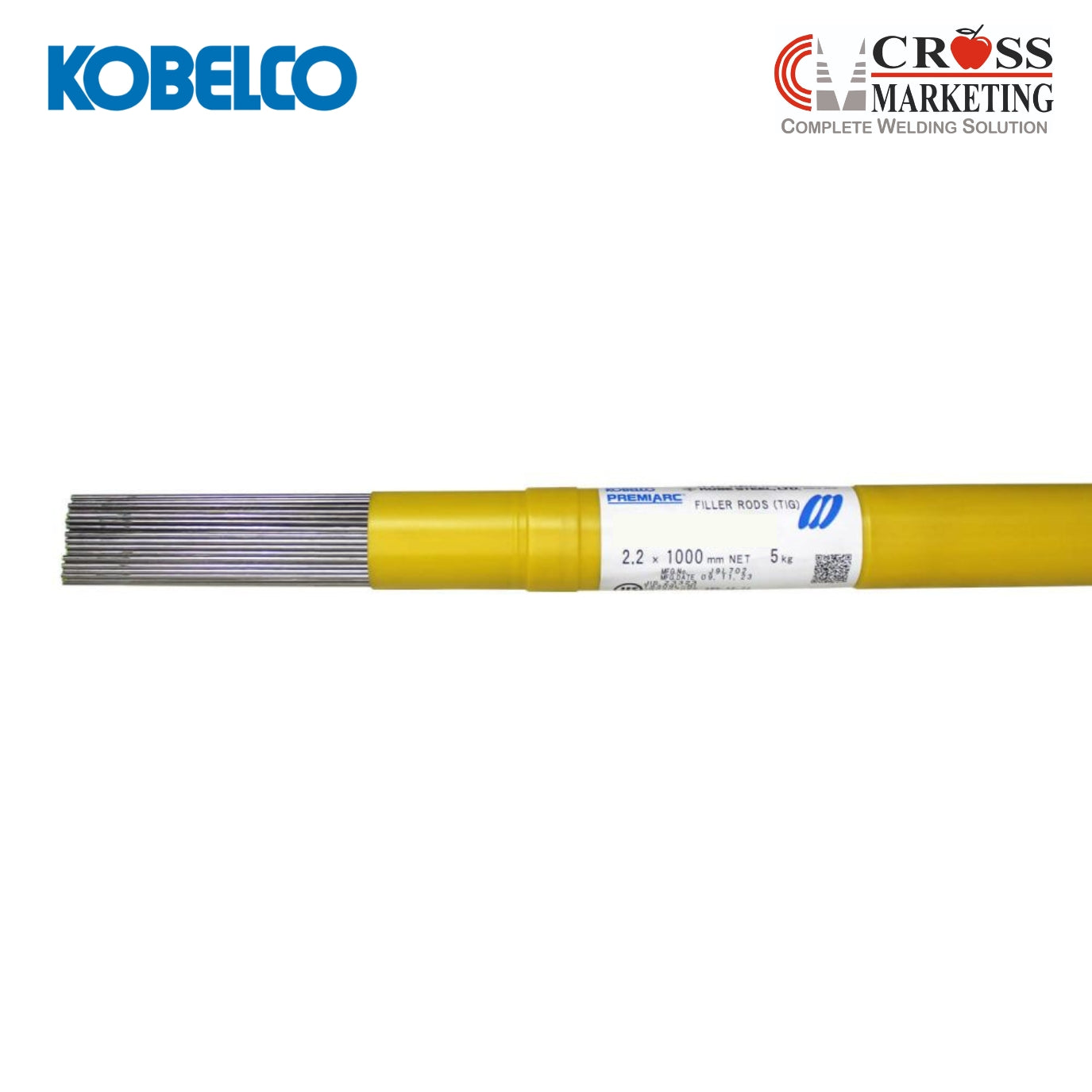

| Spool | Tube | |||
|---|---|---|---|---|
| φ mm | kg | kg | Length mm | g/piece |
| 1.2 | 10 | 5 | 1,000 | 9 |
| 1.6 | - | 5 | 1,000 | 16 |
| 2.0 | - | 5 | 1,000 | 25 |
| 2.4 | - | 5 | 1,000 | 35 |
| Volume mm | 240W, 110H, 230L | 40W, 35H, 1015L | ||
Composition (wire mass%)
| Typical | Guarantya | |
|---|---|---|
| C | 0.07 | 0.12 |
| Si | 0.07 | 0.20 |
| Mn | 1.10 | 0.90-1.40 |
| P | 0.004 | 0.025 |
| S | 0.008 | 0.025 |
| Ni | 2.92 | 2.60-3.10 |
| Cr | 0.36 | 0.10-0.60 |
| Mo | 0.69 | 0.40-0.90 |
| Cu | 0.14 | 0.50 |
| Note: aSingle values are maximium. | ||
Welding parameters (A)
| φ mm | Wire | Rod |
|---|---|---|
| 1.2 | 50-280 | - |
| 1.6 | - | 60-220 |
| 2.0 | - | 80-240 |
| 2.4 | - | 100-260 |
All-weld mechanical properties
| Typical | Guaranty | |
|---|---|---|
| 0.2%YS (MPa) | 760 | 665min. |
| TS (MPa) | 880 | 759min. |
| EI on 4d (%) | 23 | 15min. |
| IV -60°C (J) | 240 | 27min. |
Approvals / Click here for certificates
| ABS |
5YQ690A H5, 5YQ690SA H5 |
|---|---|
| LR |
5Y69m H5, 5Y69M H5 (Auto) |
| DNV | ⅤY69M, H5 |
| BV | SA5Y69M H5 |
| NK | KSW5Y69G (I) H5 |
| CCS | 5Y69SM H5 |
