USP’S :
- Stronger arc force, better penetration, higher strength joints / no cracking/ defects / joint failures
- Better fuidity control, out of position welding, easier electrode manipulation, easier and faster welding, lesser fatigue / longer weld lengths per pc - lesser electrode consumption
- Lesser spatters, better metal recovery
- Best in class smooth, ripple free weld beads
- Best in class slag removal and striking / re-striking
- No red hotness. Excellent shielding – X Ray quality, defect free welding

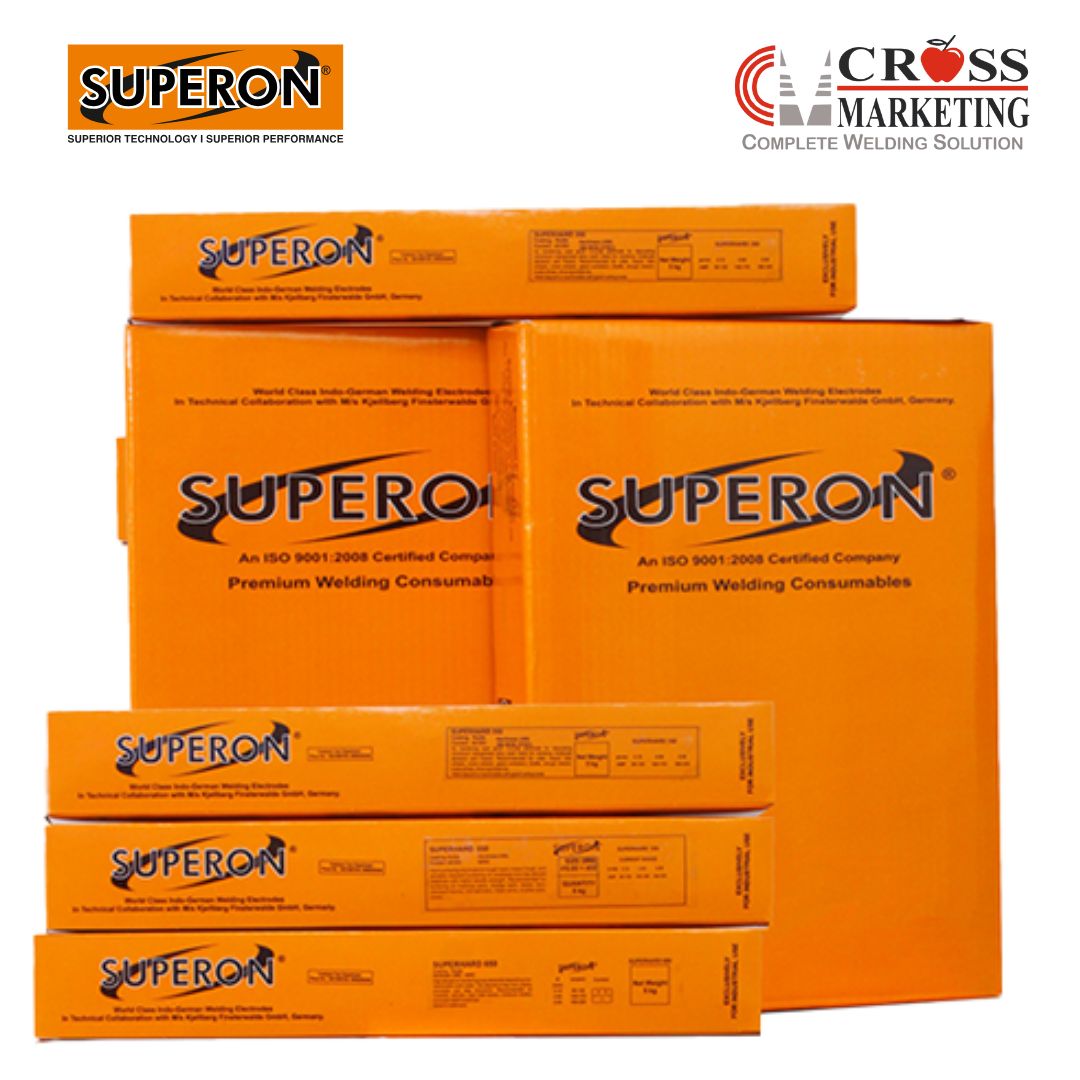

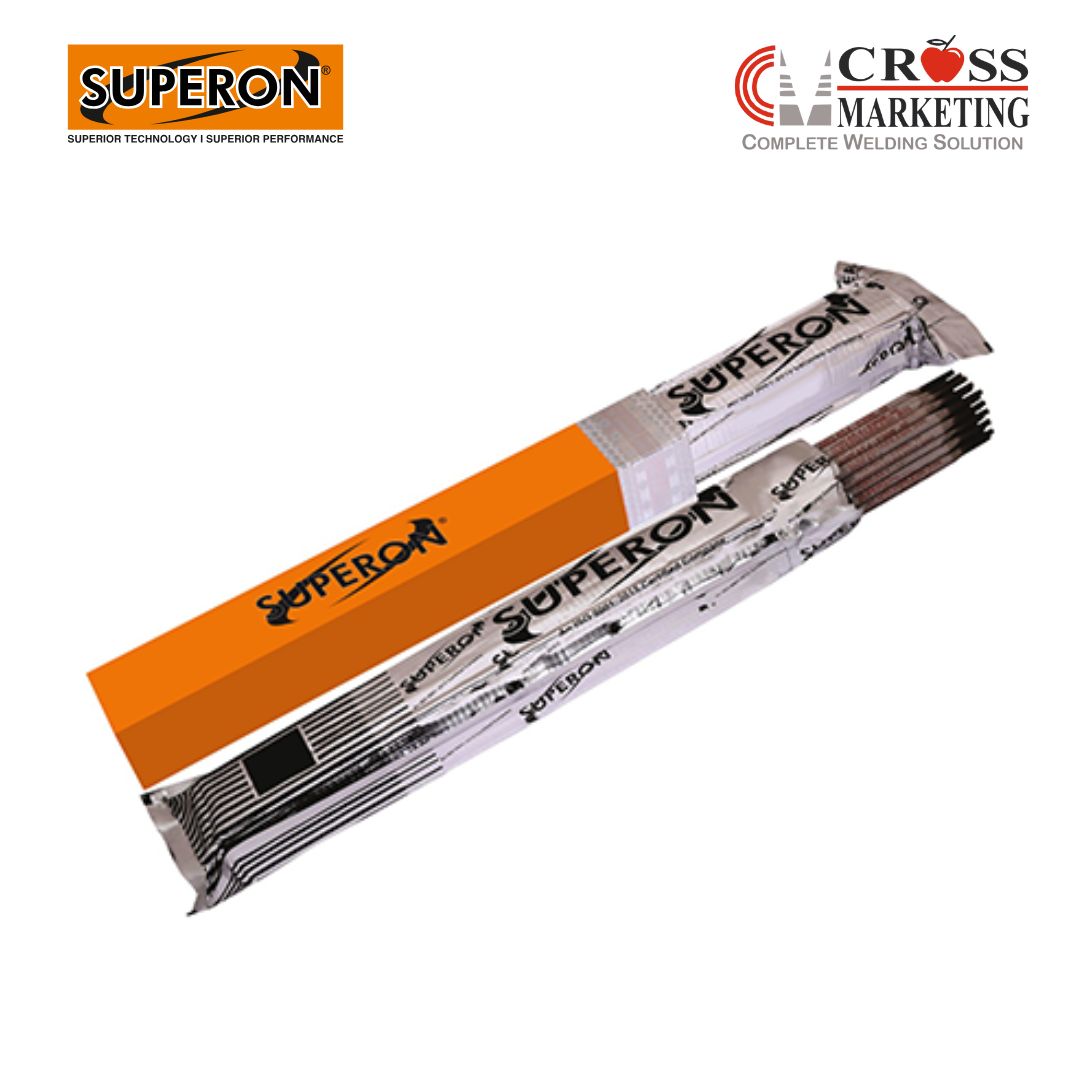

TYPE OF PACKING :
| NORMAL | ||||
|---|---|---|---|---|
| Brand Name | Approvals | Inner Packing | Outer Packing | Special Packing |

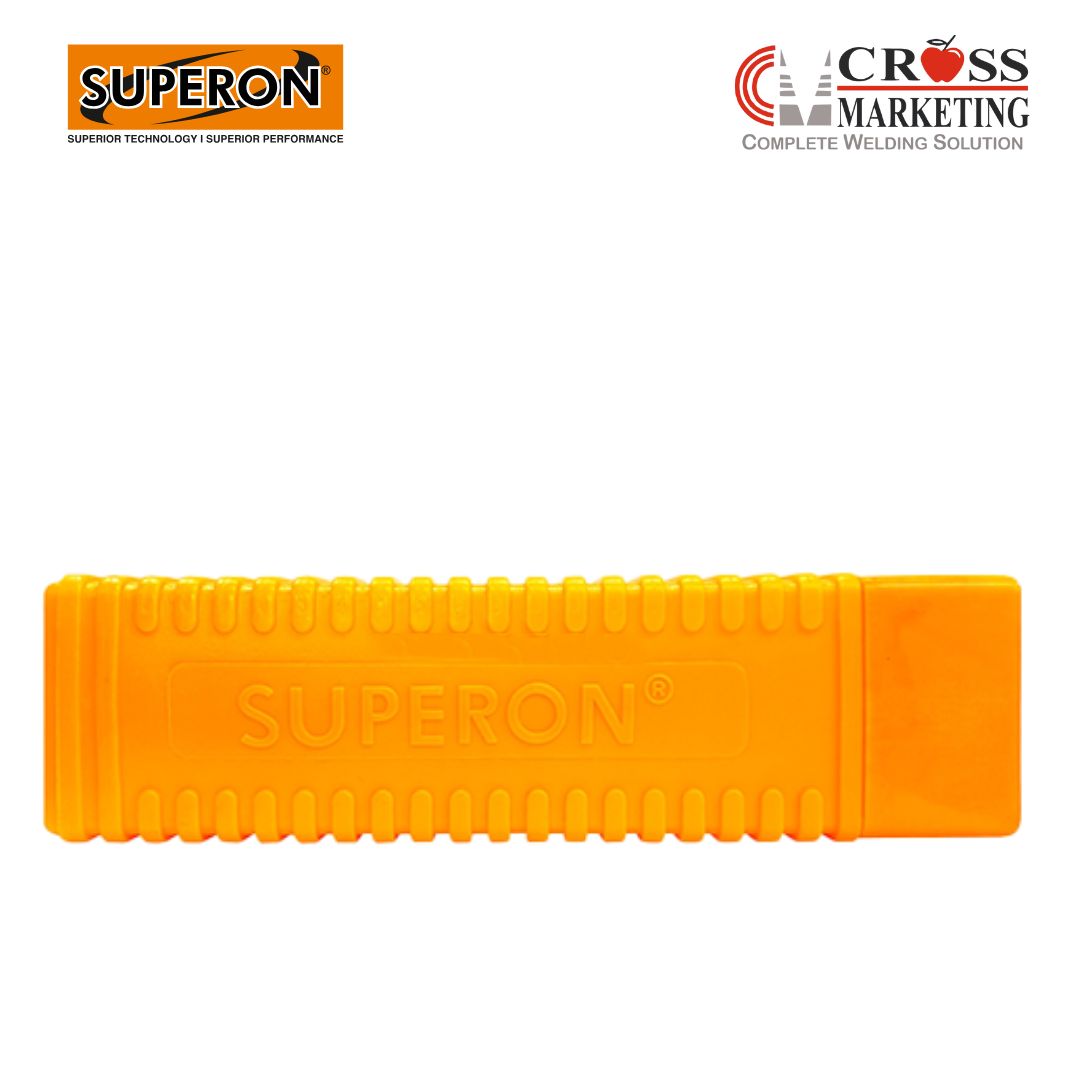

| Super 6 | BV | 5Kg Normal Pack | 20 Kg | 2Kg/5Kg Plastic Tube |
| SUPER OPTIMAL 6013 | CE,CWB,TUV,DB | 5Kg Normal Pack | 20 Kg | 2Kg/5Kg Plastic Tube |
OTHER PACKAGING INFORMATION :
For Plastic Tube pack, the outer pack weight will be same as vac & normal pack
for lbs packing :- 2kg :- 5 Lbs, and 5Kg :- 10Lbs, 10kg :- 20Lbs, 20kg :- 40Lbs
for 2kg = 2x5=10kg
for 5kg = 5x4=20kg
TechnicaL Specification
| Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 ) | ELONGATION A5(%) | IMPACT V (J) 0°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 ) | ELONGATION A5(%) | IMPACT V (J) 0°C | WELDING CONDITIONS | Product Name | AWS/SFA | TENSILE STRENGTH N/MM2 ) | ELONGATION A5(%) | IMPACT V (J) 0°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 ) | ELONGATION A5(%) | IMPACT V (J) 0°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 ) | ELONGATION A5(%) | IMPACT V (J) 0°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 ) | ELONGATION A5(%) | IMPACT V (J) 0°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 ) | ELONGATION A5(%) | IMPACT V (J) 0°C | WELDING CONDITIONS |
| Super 6 | E 6013 | ≥380 | 470-540 | ≥24 | ≥55 | AC/DC(±) | SUPERON6013 | E 6013 | ≥380 | 470-540 | ≥24 | ≥55 | AC;DC± | SUPER OPTIMAL 6013 | ≥380 | 470-540 | ≥24 | ≥60 | AC;DC± | SUPER OPTIMAL 6013 VD | E 6013 | ≥380 | 470-540 | ≥24 | ≥60 | AC;DC± | SUPER OPTIMAL 6013 M | E 6013 | ≥400 | 470-540 | ≥24 | ≥60 | AC;DC± | SUPER OPTIMAL 6013 SF | E 6013 | ≥450 | 480-540 | ≥24 | ≥60 | AC;DC | SUPER OPTIMAL 6013 SS | E 6013 | ≥420 | 480-540 | ≥24 | ≥60 | AC;DC (-) |
