Description
Description
USP’S :
- Unique self-lifting slag
- Excellent impact notch toughness
- Crack free deposits
- Minimal spatter
- Smooth weld bead /High recovery
- Ultra-low diffusible hydrogen level : 4ml /100gms weld metal
- Best in class packaging - minimal transit damages
TYPE OF PACKING :
| NORMAL | SPECIAL PACKING | |
|---|---|---|
| Inner Packing | Outer Packing | |

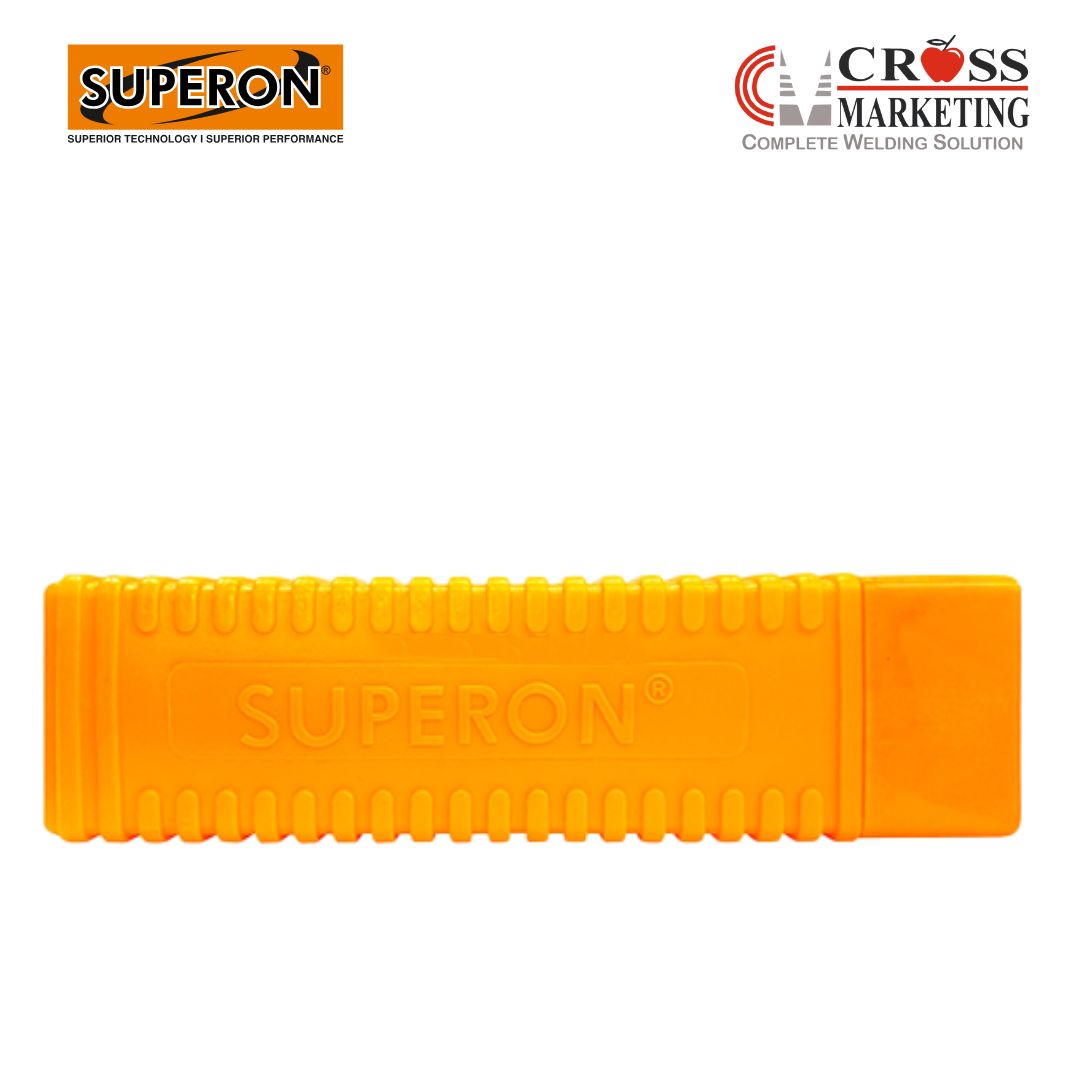

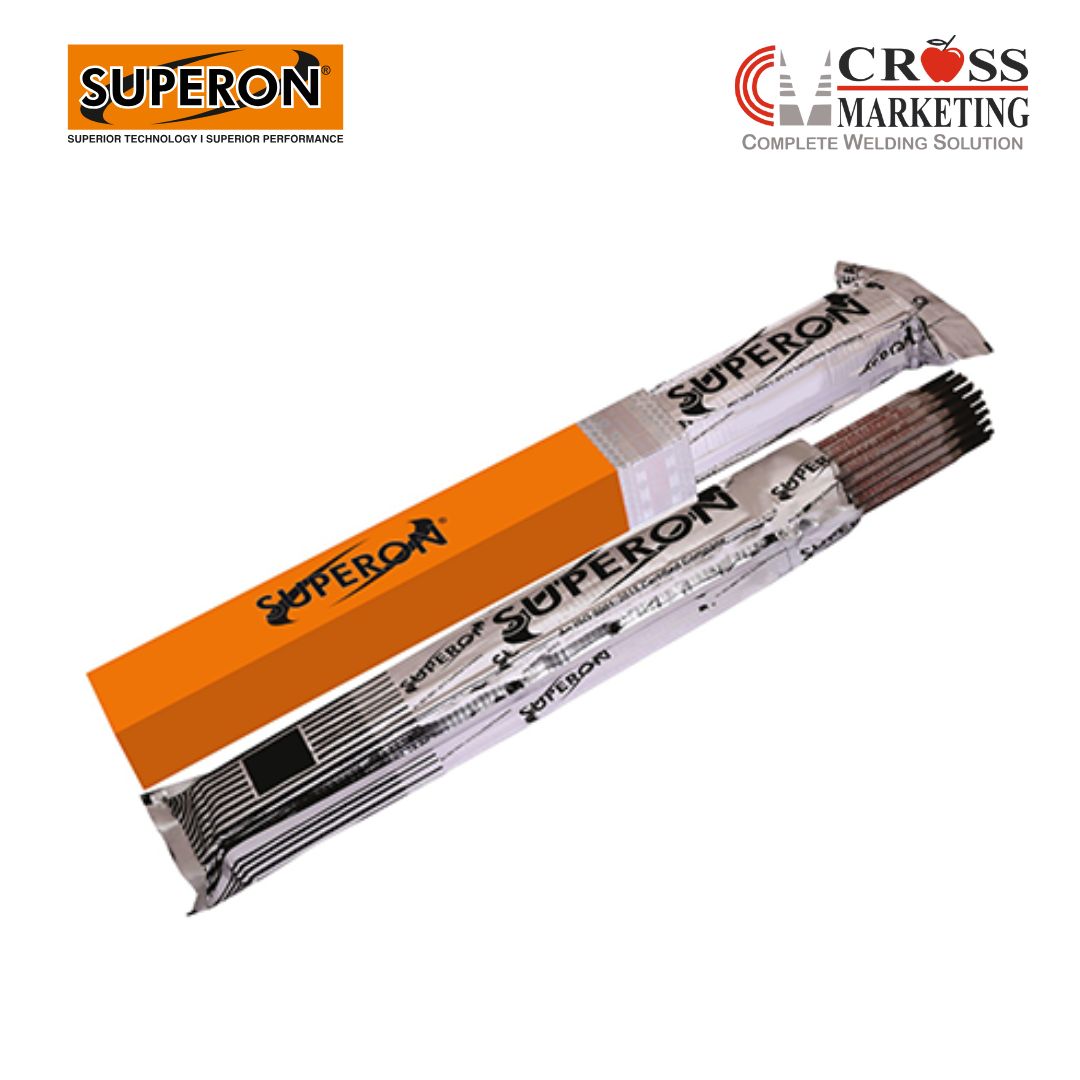

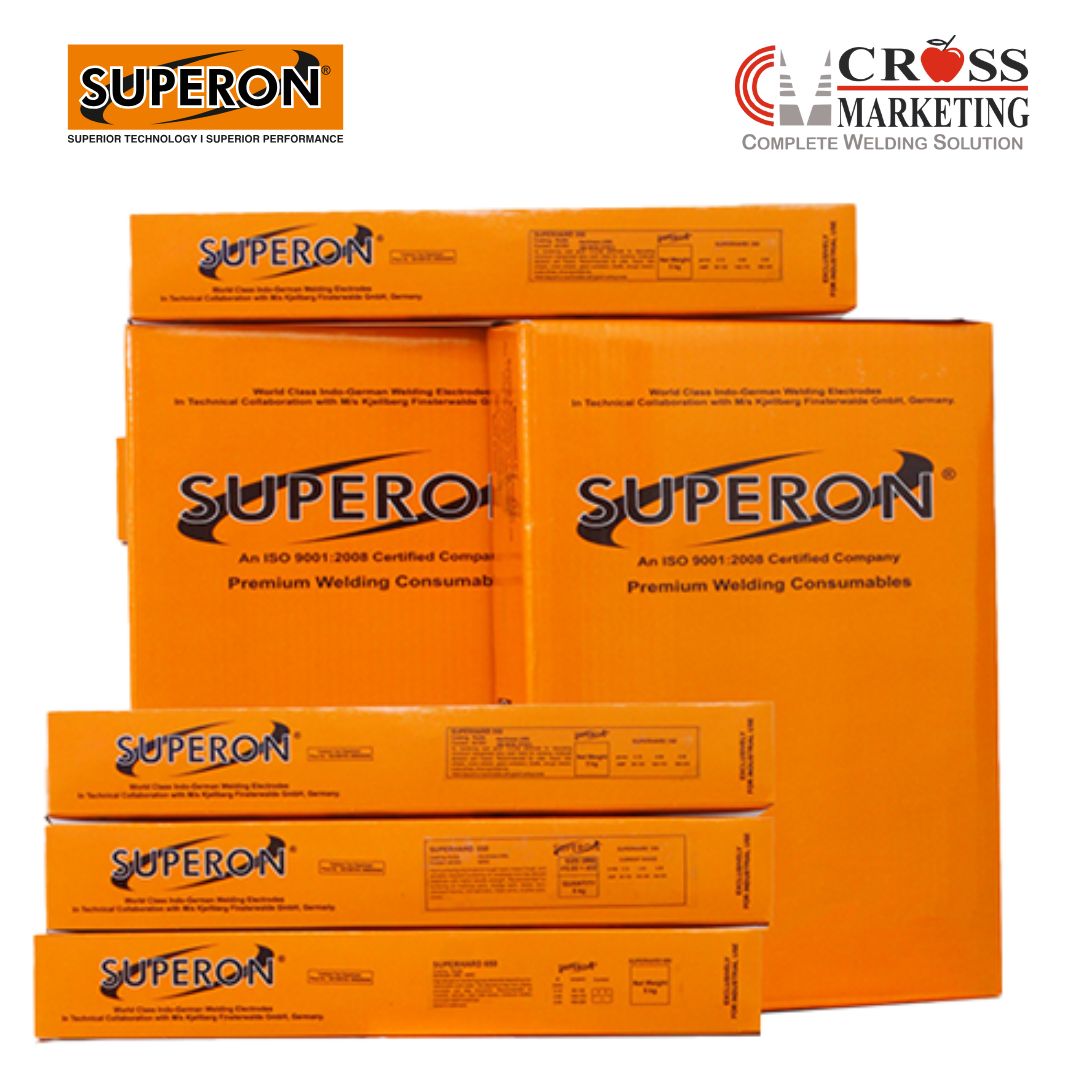

| 2 & 5Kg Vac Pack | 10 & 20Kg | 2Kg/5Kg Plastic Tube |
OTHER PACKAGING INFORMATION :
For Plastic Tube pack, the outer pack weight will be same as vac & normal pack
for lbs packing :- 2kg :- 5 Lbs, and 5Kg :- 10Lbs, 10kg :- 20Lbs, 20kg :- 40Lbs
for 2kg = 2x5=10kg
for 5kg = 5x4=20kg
TechnicaL Specification
| Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT O V (J) -30°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT O V (J) -30°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT O V (J) -30°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT O V (J) -30°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT O V (J) -30°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT O V (J) -30°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT O V (J) -30°C | WELDING CONDITIONS | Product Name | AWS/SFA | YIELD STRENGTH N/MM2 | TENSILE STRENGTH N/MM2 | ELONGATION A5(%) | IMPACT O V (J) -30°C | WELDING CONDITIONS |
| Super 7 | E 7018 | ≥450 | 540-620 | ≥27 | ≥80 | AC/DC(+) | Superon 7018 | E7018 | ≥450 | 550-620 | ≥28 | ≥80 | DC(+) : AC | SUPER OPTIMAL 7018 | E 7018-H4 | ≥450 | 550-620 | ≥28 | ≥90 | AC;DC+ | SUPER OPTIMAL 7018(SP) | E 7018-1 | ≥450 | 510-610 | ≥28 | ≥80 J at -50°C | DC(+) ; AC | SUPER OPTIMAL 7018S | E 7018-1 H4 | ≥450 | 550-620 | ≥28 | 80 J at -50°C | - | SUPER OPTIMAL 7018SH4R | E 7018-1 H4R | E 7018-1 H4R | ≥450 | 550-640 | ≥28 | 80 at - 50°C | - | SUPER OPTIMAL 7018H4R | E 7018 H4R | ≥450 | 550-640 | ≥28 | 80 at - 40°C | - | SUPER OPTIMAL 7018SW | E7018 | ≥450 | 550-650 | ≥28 | 100 | - |
