Description

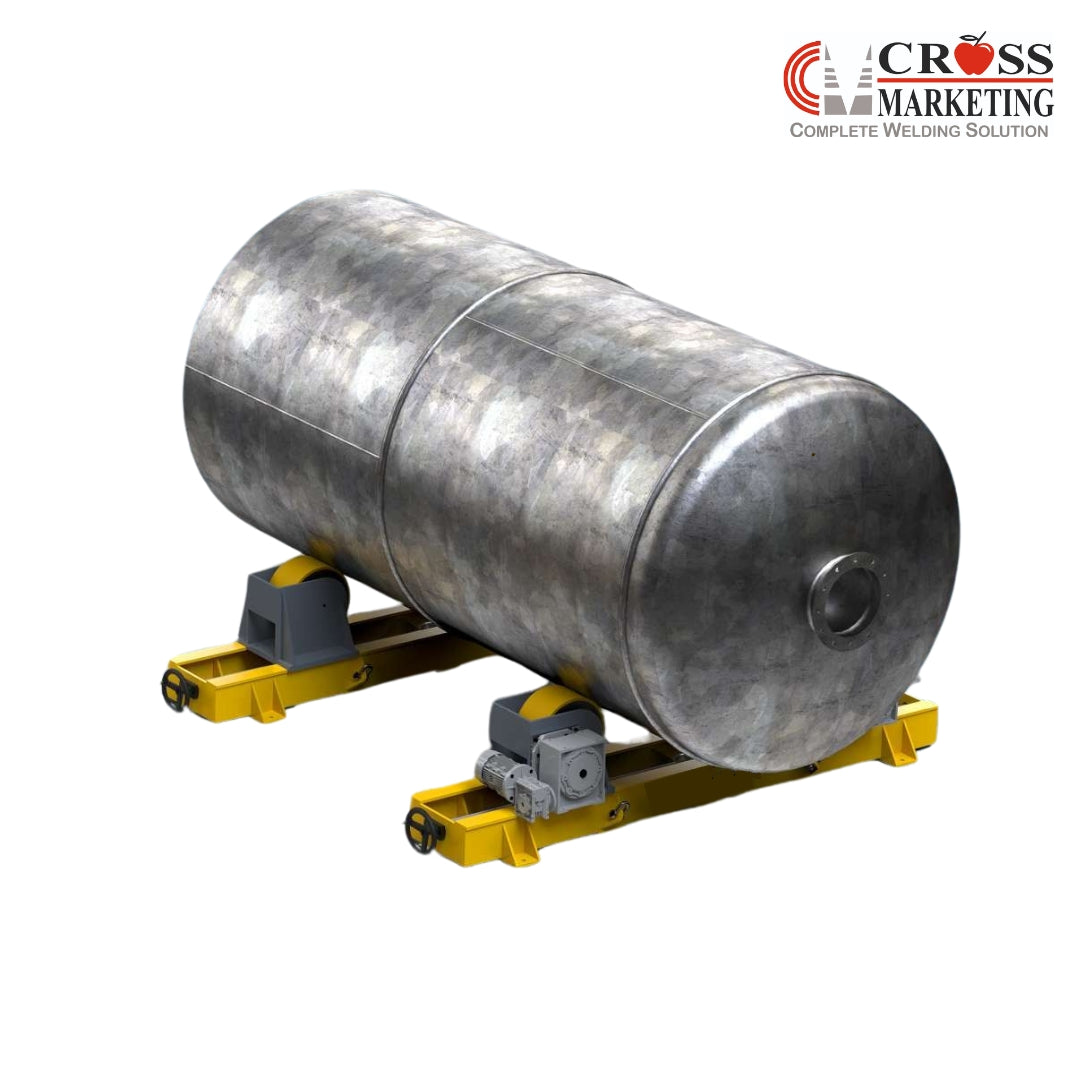

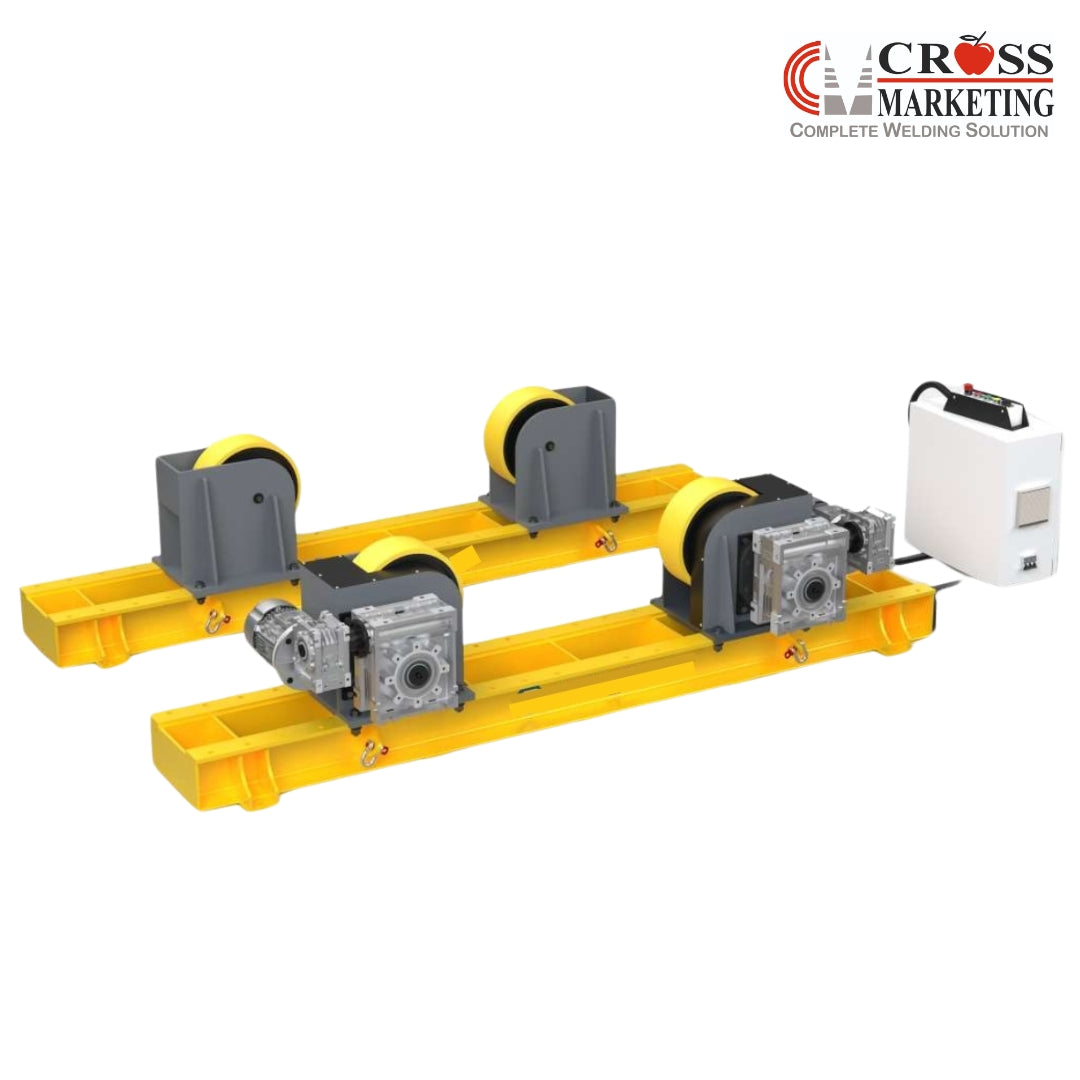

Key Features of Bolt Type Rotator
High quality Gear Reducers.
Heavy duty Metal Body to Enhance Durability.
Reputed make Control Elements & Switchgeors.
Precision Machined Surface.
Metal Body Remote Control.
SGI Gusting for Bearing Housing to Ensure Safety.
|
MODEL |
RBTR-2 |
RBTR-S |
RBTR-10 |
RBTR-20 |
RBTR-30 |
RBTR-40 |
|
|
RATED LOAD (Ton) |
2 |
s |
10 |
20 |
30 |
40 |
|
|
MIN JOB DIAMETER |
A |
200 |
250 |
320 |
500 |
550 |
600 |
|
MAX JOB DIAMETER |
B |
1800 |
2300 |
2800 |
3500 |
3800 |
4200 |
|
PU ROLLER OD |
C |
200 |
250 |
300 |
350 |
350 |
400 |
|
PU ROLLER WIDTH |
D |
80 |
100 |
120 |
120 |
130 |
140 |
|
METALIC ROLLER OD |
E |
170 |
220 |
270 |
320 |
320 |
370 |
|
LINEAR SPEED (mm/min) |
|
|
100 -1 |
000 |
|
|
|
|
SPEED CONTROL |
|
|
VF |
D |
|
|
|
|
MOTOR POWER (kw) |
2x0.25 |
2x0.37 |
2x0.55 |
2x1.1 |
2x1.1 |
2x1.5 |
|
|
FRAME LENGTH |
F |
1400 |
1640 |
2050 |
2550 |
2720 |
3030 |
|
POWER WIDTH |
G |
390 |
490 |
555 |
580 |
620 |
620 |
|
IDLER WIDTH |
H |
325 |
340 |
370 |
450 |
470 |
470 |
|
TOTAL HEIGHT |
1 |
365 |
445 |
515 |
610 |
640 |
655 |
|
BODY HEIGHT |
J |
118 |
147 |
147 |
175 |
175 |
179 |
|
CENTER DISTANCE OF ROLLER |
K |
215—1015 |
275—1275 |
335-1595 |
430—1970 |
540—2080 |
425—2405 |
