Description
| Features: |
|
|---|---|

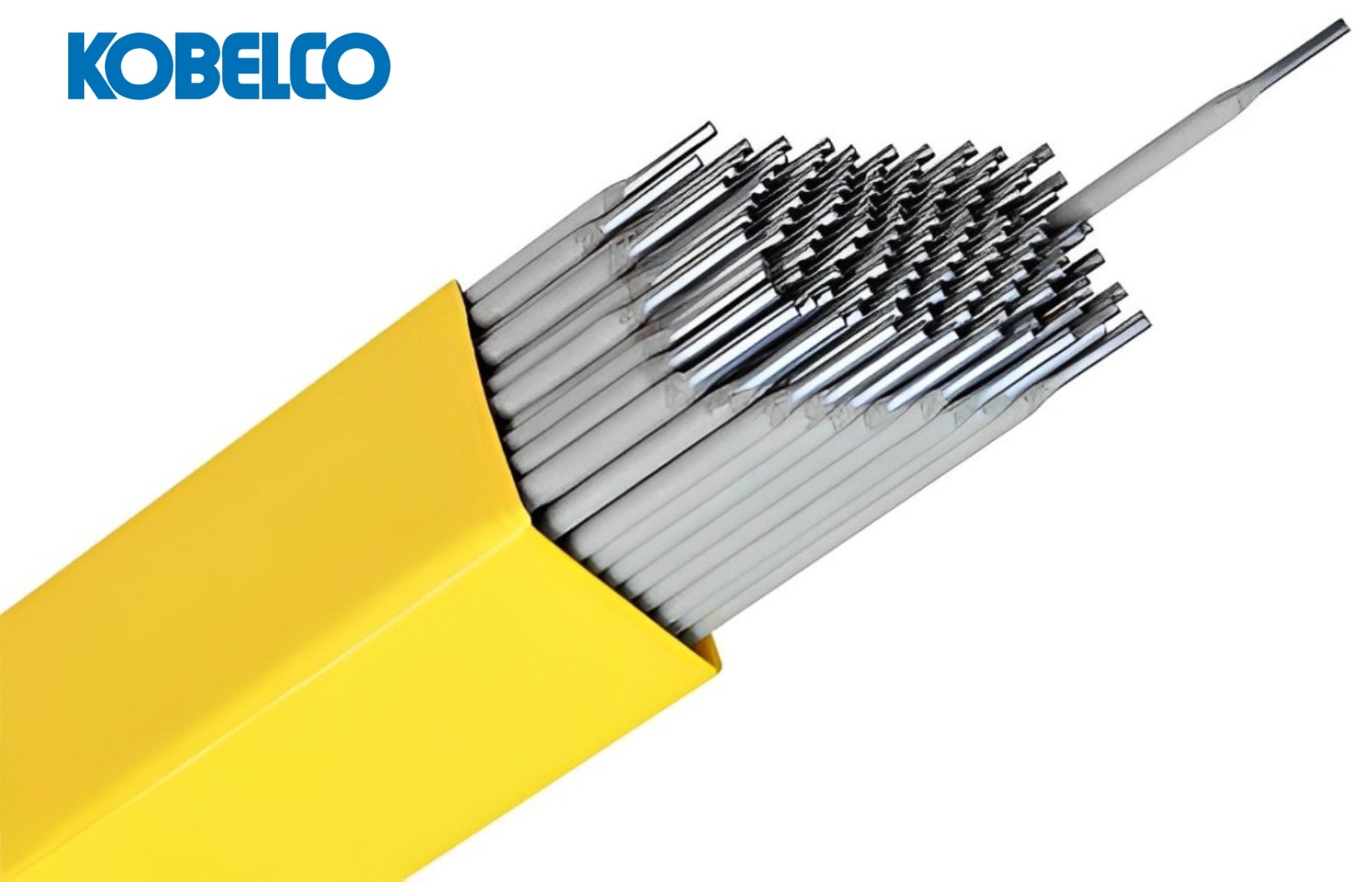

| Classification: | AWS A5.1 E6013 |
| Redrying Conditions: | 70-100°Cx0.5-1h |
| Identification color: | 1st Pink |
| Polarity: | AC, DCEP, DCEN |
Packaging data
| φ mm | Length mm | kg/pack | kg/carton | g/piece | carton mm |
|---|---|---|---|---|---|
| 2.0 | 300 | 2 | 20 | 10 | 270W, 85H, 330L |
| 2.6 | 350 | 2 | 20 | 20 | 170W, 105H, 380L |
| 3.2 | 350 | 5 | 20 | 30 | 170W, 105H, 380L |
| 4.0 | 400 | 5 | 20 | 55 | 170W, 95H, 430L |
| 5.0 | 400 | 5 | 20 | 82 | 170W, 100H, 430L |
| 6.0 | 450 | 5 | 20 | 138 | 170W, 90H, 480L |
Composition (all-weld metal mass %)
| Typical (AC) | Guarantya | |
|---|---|---|
| C | 0.08 | 0.20 |
| Si | 0.30 | 1.00 |
| Mn | 0.33 | 1.20 |
| P | 0.013 | 0.035 |
| S | 0.009 | 0.035 |
| Ni | 0.01 | 0.30 |
| Cr | 0.02 | 0.20 |
| Mo | <0.01 | 0.30 |
| V | 0.01 | 0.08 |
| Note: aSingle values are maximium. | ||
Welding parameters (A)
| φ mm | 1F, 1G, 2F, 2G | 3G uphill, 4G |
|---|---|---|
| 2.0 | 30-60 | 30-60 |
| 2.6 | 55-95 | 50-90 |
| 3.2 | 80-130 | 70-120 |
| 4.0 | 125-175 | 100-160 |
| 5.0 | 170-230 | 120-200 |
| 6.0 | 230-300 | - |
All-weld mechanical properties
| Typical (AC) | Guaranty | |
|---|---|---|
| 0.2%YS (MPa) | 430 | 331min. |
| TS (MPa) | 480 | 414min. |
| EI on 4d (%) | 25 | 17min. |
