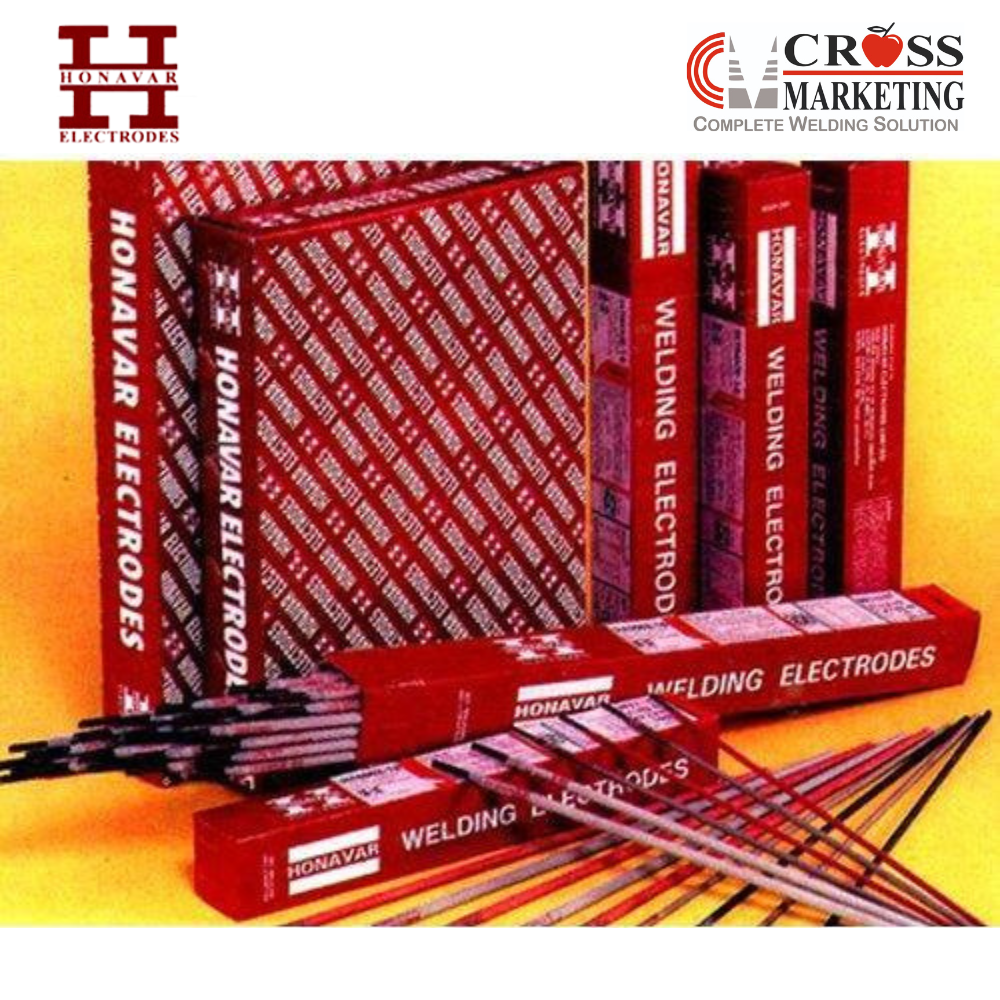

HONAVAR;FILLER WIRE; AWS A5.9: ER 308L;308L-TIG

HW 308L-TIG

Sizes: 1.6, 2.0, 2.4 & 3.2mm

AWS A5.9: ER 308L

EN12072: W 199 L

Application:

A versatile 19 Cr-9Ni elc type rod meant for 18/8 stainless steel class, for general purpose as well as for cryogenic applications, especially liquid oxygen plants.

The extra-low carbon (<0.025%) renders the rods suitable for welding of the stabilized grades 321 & 347.

Weld metal displays excellent impact strength & ductility at subzero temperatures down to minus 196°C.

Notes on usage:

Ensure freedom from any foreign matter such as grease, oil, water, dust. Use stainless steel brush.

Base Materials to be welded:

ASTM	DIN	BS
304L	1.4306, 1.4301	304S11/13/15/16/31
304, 304LN	1.4311	304 S 62
CF3, CF8(cast)	1.4306, 1.4308 (cast)	304C 12/C 15 (cast)

Chemical Composition of wire (%):

C	Mn	Si	S	P	Cr	Ni	Mo	Cu
0.025 max	1.0-2.0	0.30-0.60	0.025max	0.030max	19.5-21.0	9.0-11.0	0.2 max	0.5 max

Shielding Gas: Pure Argon All-Weld Mechanical Properties (As-welded):

	Ultimate Tensile Strength	Yield Strength	Elongation	Impact Energy	Lateral Expansion at -196°C
	570-680 MPa	350 min.	35.0 min	Minus 196°C, > 60 Joules	0.40 mm Min
Typical	600	450	38.0		0.45 mm
