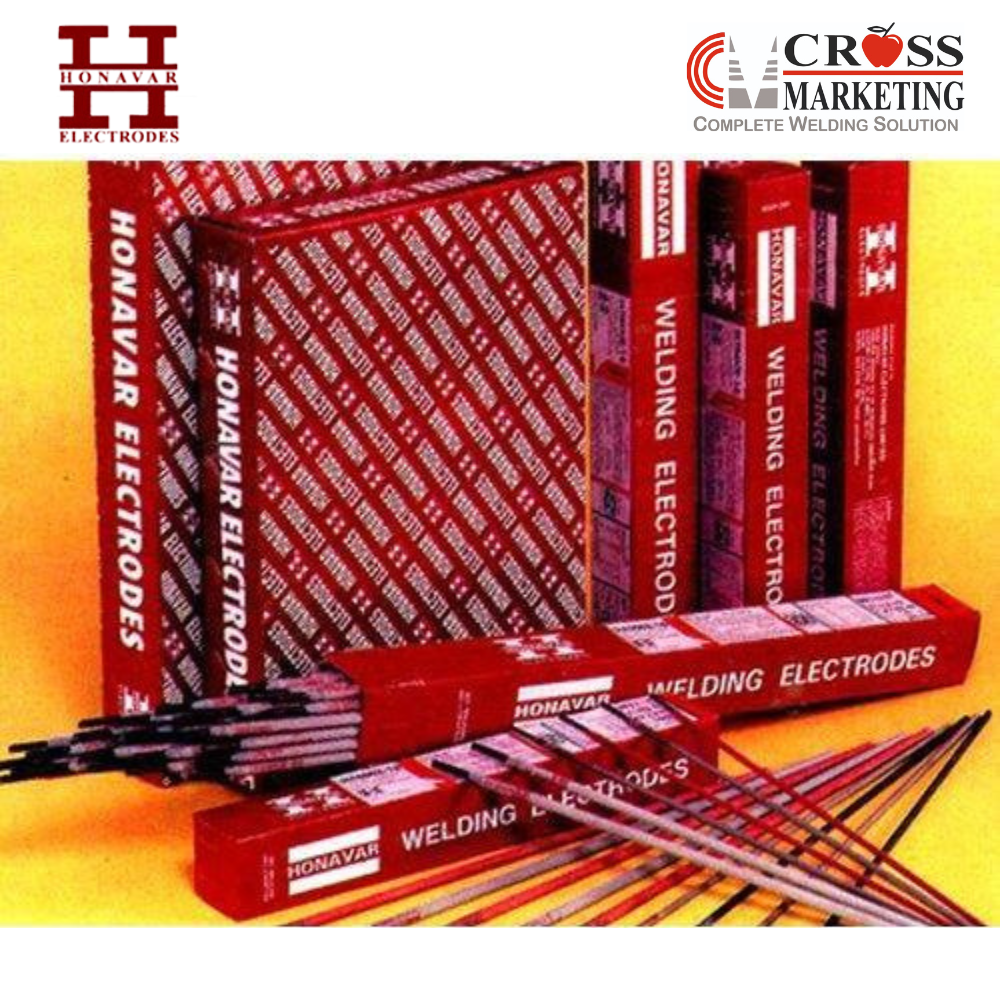

HONAVAR; STICK ELECTRODE; AWS A 5.4 E 2209-17 ;SILVERSHINE-4462(Spl.)

(for welding Duplex Stainless Steel)

AWS A 5.4 E 2209-17 EN 1600 E 2293 NLR 32 Identification: Name Printed.

1. GENERAL CHARACTERISTICS:

Lime-titania based covering on core wire of 2209 grade, designed for highly pleasing overall operating characteristics.

→ Controlled weld chemistry (with C<0.03%) for achieving:

(a) balanced austenite ferrite contents,

(b) high resistance to general corrosion, pitting corrosion & stress corrosion,

(e) Pitting Resistance Equivalent (PREN) of >35,

(d) high yield strength (>550 MPa)

(e) High Notch toughness at subzero temperature down to -40°C.

+ Core wire of 2209 grade helps to bring about homogenous microstructure with ferrite

content of 30-50%

	CASTINGS : ASTM A 890
Grade	2A	3A	4A
UNS	J.93345	393371	J 92205
Class	CE 8 MN	CD 6 MN	CD 3 MN

CHEMICAL ANALYSIS OF ALL WELD DEPOSIT (%)

C	Mn	Si	Cr	Ni	Mo	N	PREN
0.03 max	0.5-1.5	0.9 max	22.0-23.5	9.0-10.0	3.0-4.0	0.1-0.2	> 35

All Weld Mechanical Properties: (As welded):

0.2% Proof Stress Mpa		UTS	Elongation %
	480 Min	690 Min	20 Min
Typic al	680	850	24-25
CVN Impact Values ( Joules )
+ 20 ° C		70-75
-30 ° C		50-60
-40 ° C		40-50

Hardness (Approx.) 240-250 Brinell.  WELDING CURRENT RANGES:

Dia	2.5 mm	3.15 mm	4.00 mm	5.00 mm
Length	350 mm	350 mm	350 mm	350 mm
DC + or AC 70V	50-80	80-110	110-140	150-180
