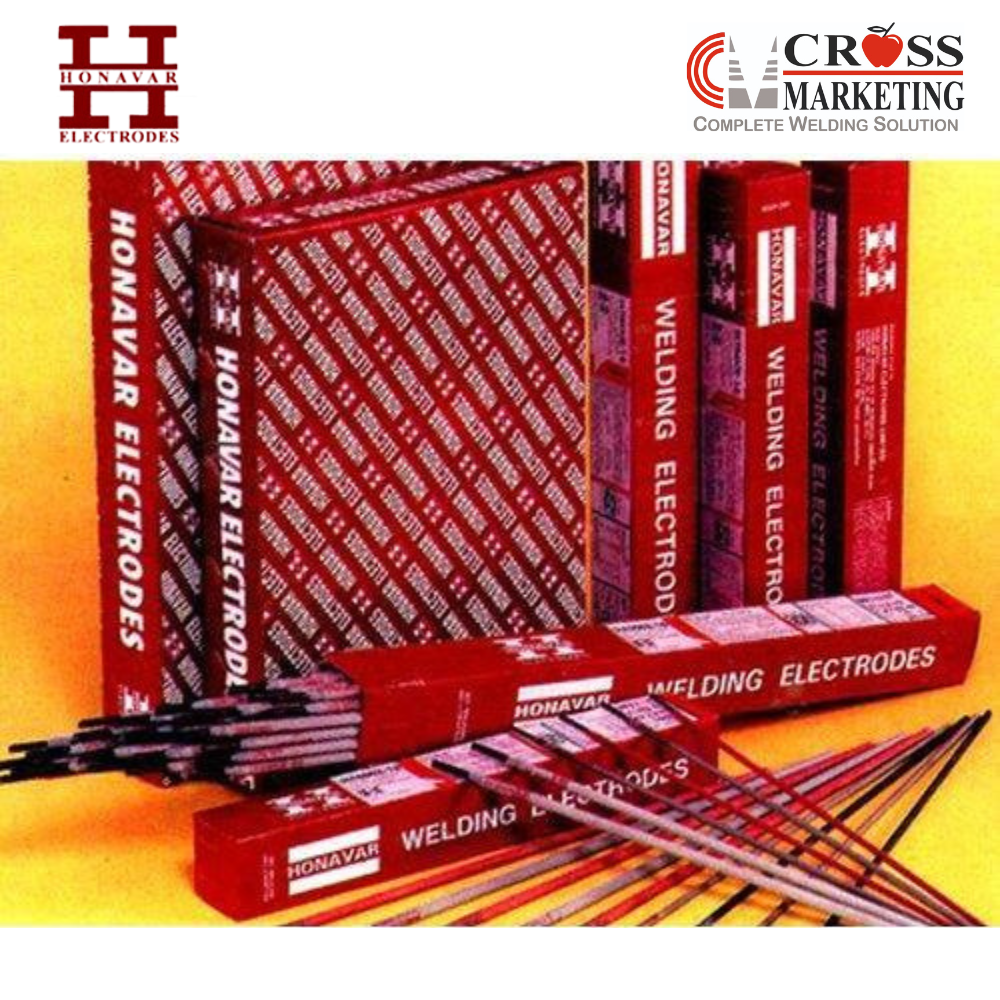

HONAVAR; STICK ELECTRODE;AWS E 308L-16 ;SILVERSHINE-308L


Description

SFA 5.4 AWS E 308L-16

Identification Name Printed

GENERAL CHARACTERISTICS:

Lime-titania all position electrodes.

Exhibits smooth running.

Soft & stable arc with ease of striking and with negligible spatter.

Self-peeling slag.

Smooth bead appearance with fine ripples.

Weldable on AC and DC+ polarity.

Austenitic weld deposit which contains appropriate quantity of 'FERRITE' to prevent cracking.

High degree of corrosion resistance in oxidising environments such as nitric acid.

High resistance to intergranular corrosion.

CHEMICAL ANALYSIS OF ALL WELD DEPOSIT (%)

C Mn Si Cr Ni S P
0.040 max . 0.50-2.5 0.90 max . 18.0-21.0 9.0-11.0 0.03 max . 0.040 max

ALL WELD MECHANICAL PROPERTIES:

Ultimate Tensile Strength kg / mm² Elongation ( L = 4d ) % CVN Impact Value Joules at + 20 ° C
56-66 36-45 56-80

WELDING CURRENT RANGES & PACKING DATA FOR SIZES MANUFACTURED:

Dia ( mm ) 2.5 3.15 4 5
Length ( mm ) 350 350 350 350
Current ( Amp ) ( AC or DC + ) 50-85 70-115 85-145 135-180
Pieces per Carton 125 90 60 35
