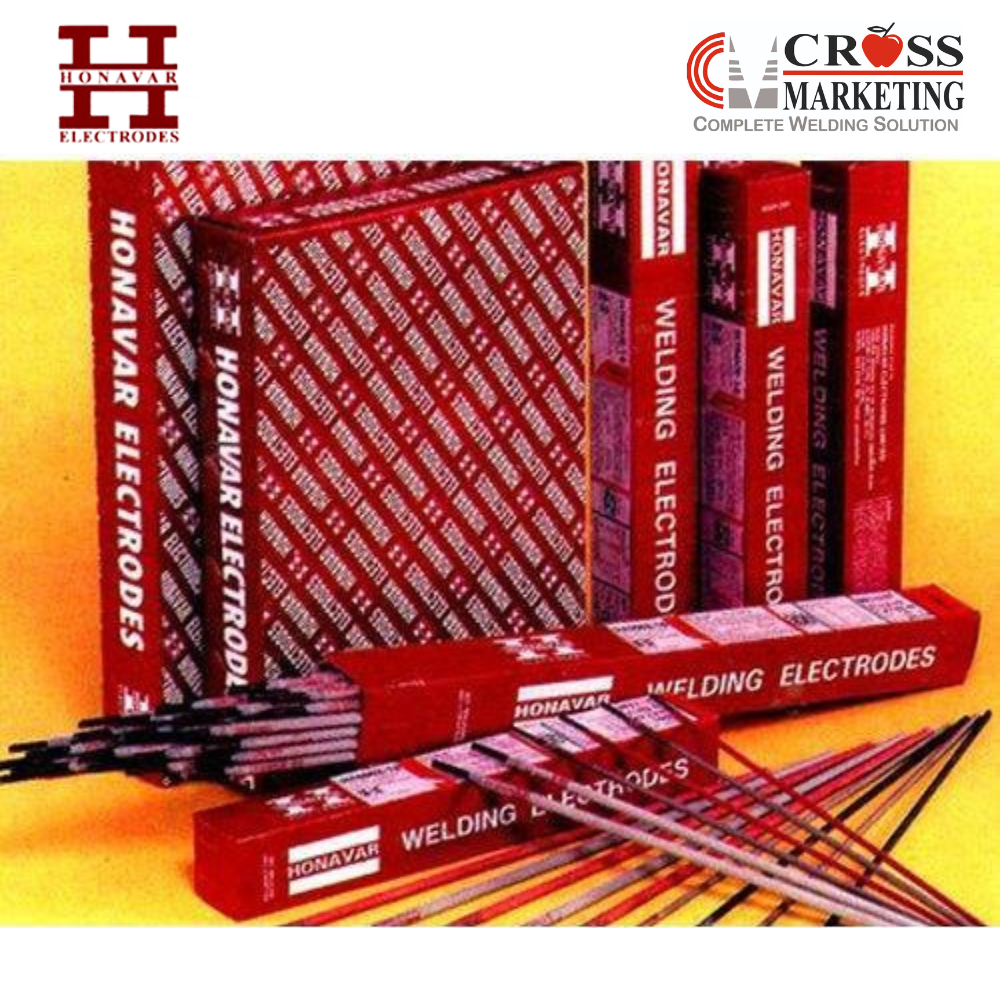

HONAVAR; STICK ELECTRODE; AWS E 309L-16;SILVERSHINE-309L

BRAND :SILVERSHINE-309L

SFA 5.4 AWS E 309L-16

DIN EN 1600 E 2312 LR 12

Identification: Name Printed.

GENERAL CHARACTERISTICS:

Lime-titania all position electrode.

Negligible spatter; easy slag release; smooth bead appearance.

High quality weld deposit with defect-free radiographic performance in multipass welds. High resistance to embrittlement.

Good resistance to corrosion and to heat.

For welding steels of similar composition.

For joining 18Cr-8Ni stainless steel to carbon steel or to low alloy steel.

For root passes in clad steel.

Suitable for AC and DC(+)

CHEMICAL ANALYSIS OF ALL WELD DEPOSIT (%):

C	Mn	Si	Cr	Ni	S	P
0.04 max	0.50-2.50	0.90 max	22.0-25.0	12.0-14.0	0.025 max	0.040 max

ALL WELD MECHANICAL PROPERTIES: (AS WELDED).

Ultimate Tensile Strength MPa	Elongation ( L = 4d ) %	CVN Impact Value Joules at + 20 ° C
530-630	30-40	56-80

WELDING CURRENT RANGES FOR SIZES MANUFACTURED:

Dia ( mm )	2.5	3.15	4	5
Length	350	350	350	350
Current ( Amp ) ( AC or DC + )	50-85	75-115	85-145	135-180
