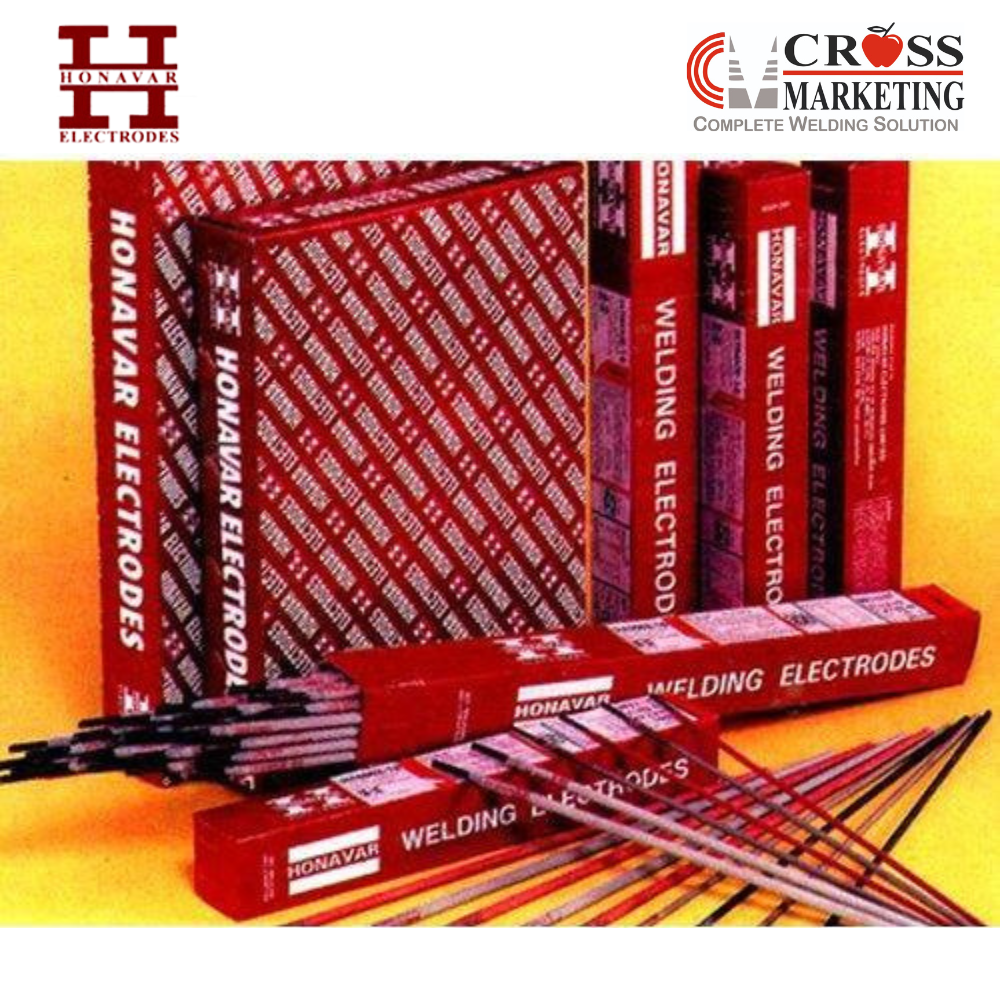

HONAVAR; STICK ELECTRODE; AWS E 6013;REGULAR-S

SFA 5.1 AWS E 6013

IS: 814 ER 4211 X

(For Mild Steel)

Identification: Name Printed.

A rutile flux coated electrode with optimum combination of pleasing operating chracteristics and weld metal with good mechanical properties and radiographic soundness.

APPLICATIONS:

Ideally suited for welding of pipelines and boiler tubes. A very wide range of jobs can be tackled effectively with REGULAR-S. Typical applications are:

Tanks

➤ Trawlers

Machinery construction Bridges

Ships ➤ Dredgers

Rail coaches & wagons

➤ Sheet metal work

Used over the past 20 years in hundreds of tonnes, in shops & project sites, for welding of piping, especially oil refineries, with consistently sound welds of radiogrpahic quality.

	CASTINGS : ASTM A 890
Grade	2A	3A	4A
UNS	J.93345	393371	J 92205
Class	CE 8 MN	CD 6 MN	CD 3 MN

CHEMICAL ANALYSIS OF ALL WELD DEPOSIT (%)

C	Mn	Si	Cr	Ni	Mo	N	PREN
0.03 max	0.5-1.5	0.9 max	22.0-23.5	9.0-10.0	3.0-4.0	0.1-0.2	> 35

All Weld Mechanical Properties: (As welded):

0.2% Proof Stress Mpa		UTS	Elongation %
	480 Min	690 Min	20 Min
Typic al	680	850	24-25
CVN Impact Values ( Joules )
+ 20 ° C		70-75
-30 ° C		50-60
-40 ° C		40-50

Hardness (Approx.) 240-250 Brinell.  WELDING CURRENT RANGES:

Dia	2.5 mm	3.15 mm	4.00 mm	5.00 mm
Length	350 mm	350 mm	350 mm	350 mm
DC + or AC 70V	50-80	80-110	110-140	150-180
