Description

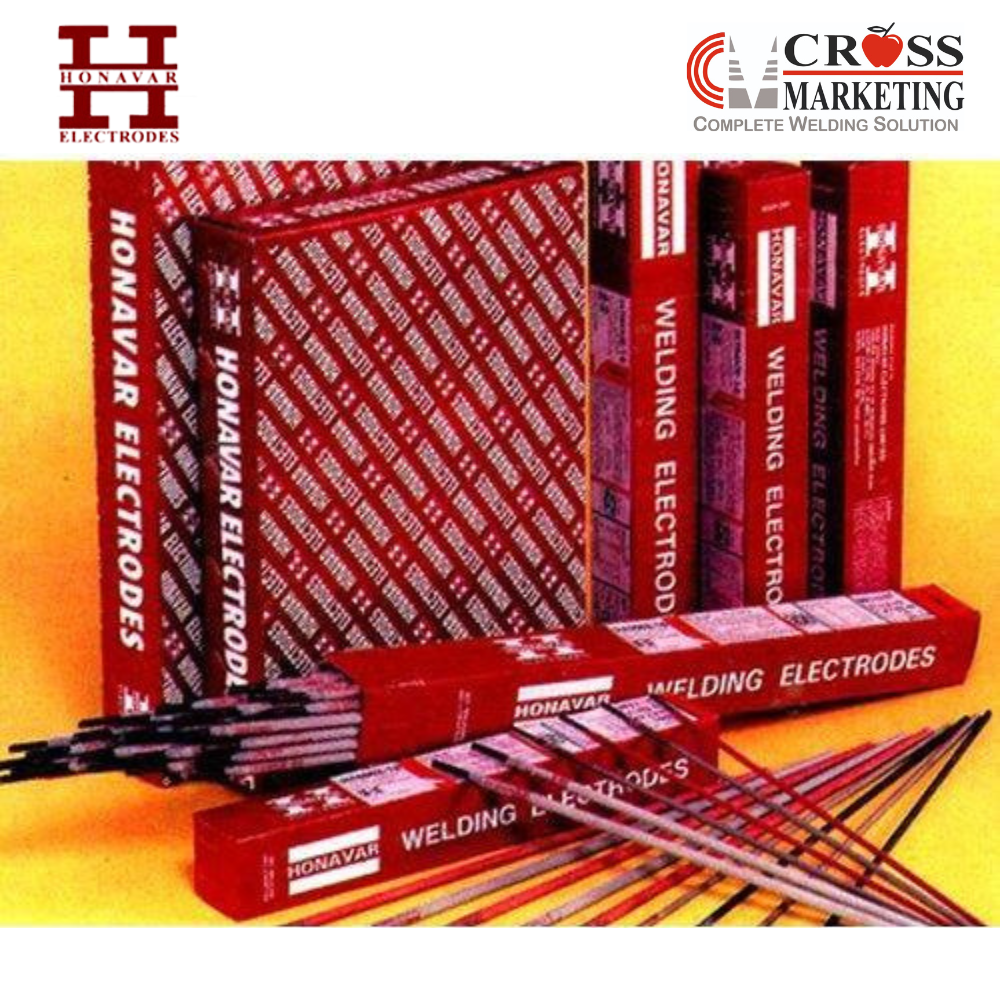

BRAND :ULTIMATE-80(EXTRA)
Low Hydrogen Electrode for Vertical Down Welding of Pipes.
SFA5.5-2007 AWS E 8045-P2
Identification: Name Printed |
A unique electrode developed to meet the special requirements in welding high strength steel pipelines for higher level of productivity.
- Low hydrogen level (< 5 ml per 100 g) in weld metal;
- Weld metal which possess a combination of higher strength, good ductility and excellent impact strength at subzero temperatures down to -50°C.
- Suitable for welding with vertical downward progression for fill & cap passes in butt joints of high strength steel pipes of grades up to & including API 5L-X70. 4. Welder friendly operating characteristics to permit welding in vertical top to bottom position, with ease of control on weld pool & slag fluidity
CHEMICAL ANALYSIS OF ALL WELD DEPOSIT (%)
| C | Mn | Si | S | P | Ni | Mo | Cr |
| 0.1 | 1.0-1.7 | 0.6 | 0.025 | 0.025 | 0.5 | 0.2 | 0.1 |
| max | max | max | max | max | max | max |
ALL WELD MECHANICAL PROPERTIES (AS WELDED):
| Ultimate Tensile Strength MPa | Yield Strength 0.2 % Offset MPa | Elongation % | CVN impact values | |
| Temperature | Joules | |||
| 560 min | 480 min | 22.0 28.0 | -30 ° C | 60-90 |
| -40 ° C | 50-80 | |||
| -50 ° C | 40-60 | |||
WELDING CURRENT RANGES FOR SIZES MANUFACTURED:
| Dia ( mm ) | 2.5 | 3.15 | 4 |
| Length ( mm ) | 350 | 350 | 350 |
| Current Range ( Amp ) DC ( + ) | 80-110 | 120-150 | 170-210 |
