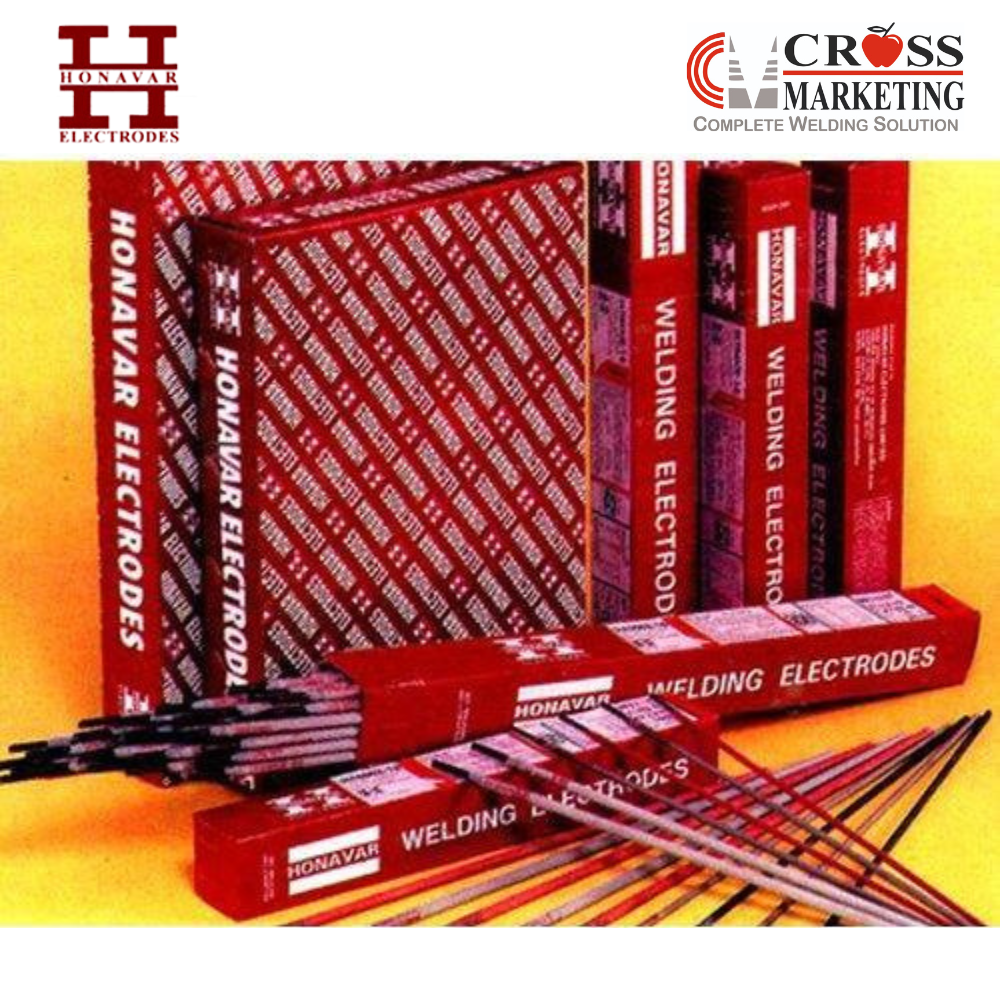

HONAVAR; STICK ELECTRODE;AWSA5 4 E3081-15;SILVERSHINE-308L-15


Description

BRAND :SILVERSHINE-308L-15

(Basic coated electrode for cryogenic applications)

GENERAL CHARACTERISTICS:

AWSA5 4 E3081-15

BS2926 19.91. B.

DIN 8556 E19 9 LB 20+

  •  Extra-low carbon basic coated electrode for all positions except vertical top to bottom.
  • Exhibits smooth running
  • Soft & stable arc with ease of striking, with negligible spatter.
  • Easy deslagging.
  • Good bead appearance, though somewhat convex profile,
  • Austenitic weld deposit with controlled ferrite to prevent cracking, & to derive notch toughness at subzero temperatures down to minus 196°C.
  • High resistance to intercrystalline corrosion.
  • Welds of consistent x-ray quality.

CHEMICAL ANALYSIS OF ALL WELD DEPOSIT (%)

C Mn Si S P Cr Ni
0,040 Max 1,0-2,5 0.90 Max 0.025 Max 0.030 Max 18.0-21.0 90-11.0

ALL WELD MECHANICAL PROPERTIES

Ultimate Tensile Strength ( N / mm² ) Elongation ( L = 4d ) % CVN Impact ( Joules )
at + 20° C at -196°C
550-650 36-45 80-120 35-55

WELDING CURRENT RANGES FOR SIZES MANUFACTURED:

Dia ( mm ) 2.5 3.15 4
Length ( mm ) 350 350 350
Current Range ( Amp ) DC ( + ) 50-75 80-100 110-140
Pieces per carton 125 90 60
