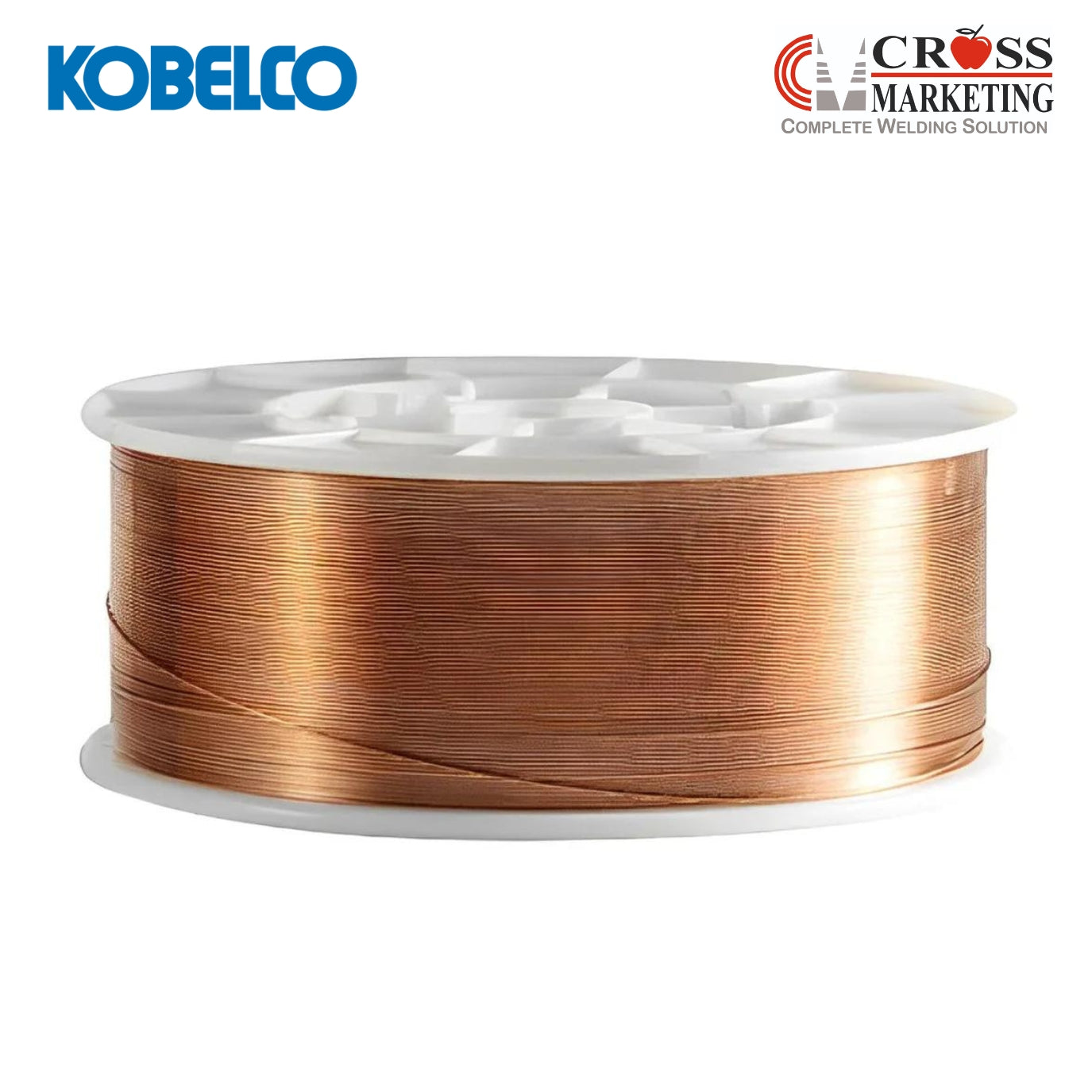

Kobelco; AWS A5.28 ER70S-G; MG-S3N; GMAW (Solid wire)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.28 ER70S-G; MG-S3N; GMAW (Solid wire)

Kobelco; AWS A5.28 ER70S-G; MG-S3N; GMAW (Solid wire)

Description

Features:
  • Suitable for 3.5% Ni steel
Classification: AWS A5.28 ER70S-G
Shielding gas: Ar-5-20%CO2
Polarity: DCEP



Packaging data

φ mm Spool
1.2 20kg
Volume mm 280W, 110H, 270L

Composition (wire mass%)

  Typical Guarantya
C 0.02 0.07
Si 0.29 0.50
Mn 1.24 1.00-1.50
P 0.006 0.020
S 0.002 0.020
Ni 4.16 3.80-4.50
Mo 0.21 0.40
Cu 0.22 0.50
Note: aSingle values are maximium.

Welding parameters (A)

φ mm 1F, 1G, 2F, 2G 3G uphill, 4G
1.2 80-300 50-180

All-weld mechanical properties

  Typical Guaranty
0.2%YS (MPa) 470 360min.
TS (MPa) 570 483min.
EI on 4d (%) 32 16min.
IV (J) -101°C: 130 -105°C: 27min.
PWHT (°Cxh) 620x1 620±15x1
SG Ar-5%CO2 Ar-5%CO2
