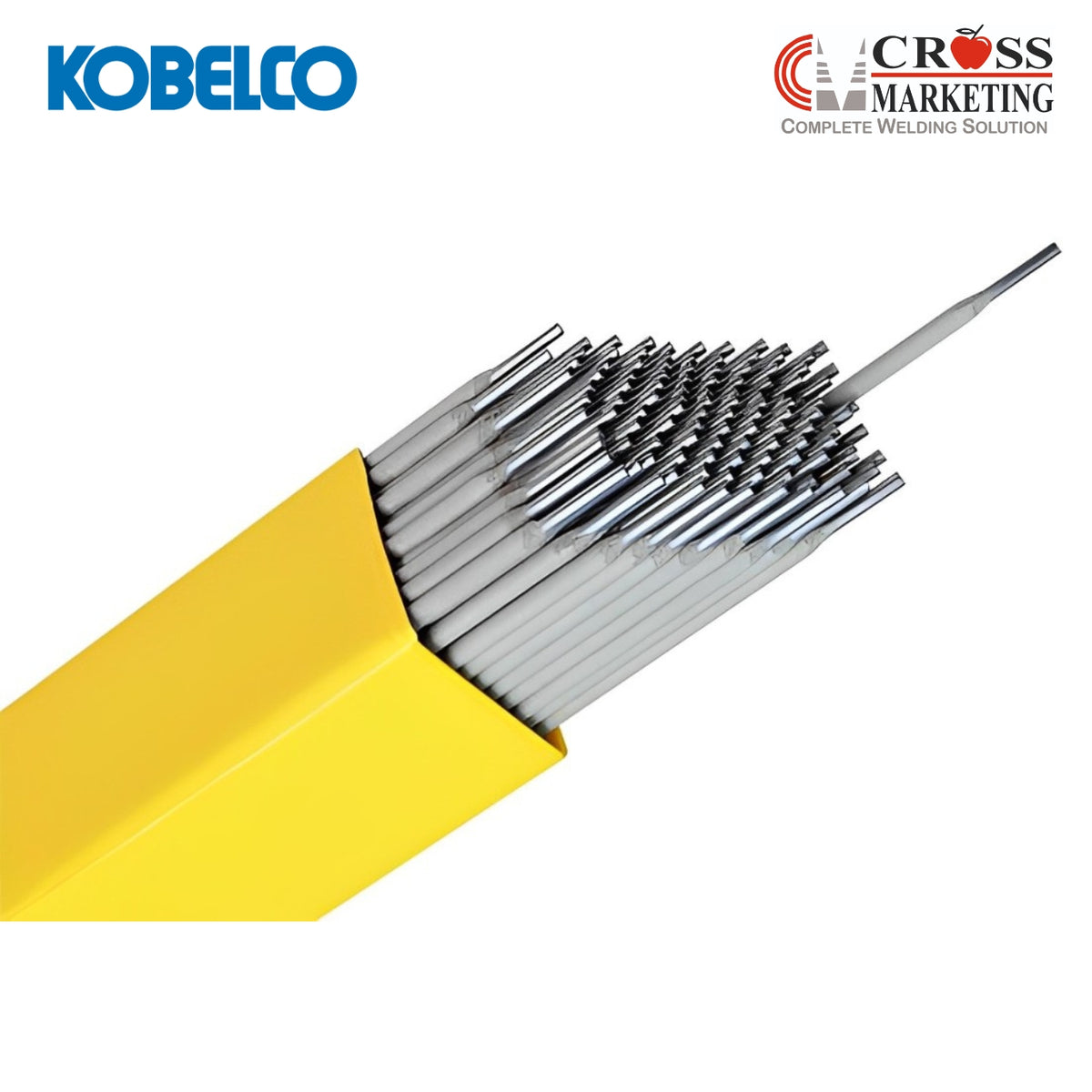

Kobelco; AWS A5.1 E6010; KOBE-6010; SMAW (Stick Electrode)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.1 E6010; KOBE-6010; SMAW (Stick Electrode)

Kobelco; AWS A5.1 E6010; KOBE-6010; SMAW (Stick Electrode)

Description

Features:
  • Suitable for butt welding of pipes
  • Excellent usability in vertical downward welding
Classification: AWS A5.1 E6010
Identification color: 1st Yellowish green
Polarity: DCEP



Packaging data

φ mm Length mm kg/pack kg/carton g/piece carton mm
2.4 300 2 20 13 300W, 100H, 330L
3.2 350 5 20 27 175W, 115H, 380L
4.0 350 5 20 40 175W, 115H, 380L
4.8 350 5 20 58 175W, 115H, 380L

Composition (all-weld metal mass %)

  Typical Guarantya
C 0.12 0.20
Si 0.15 1.00
Mn 0.51 1.20
P 0.009 0.035
S 0.008 0.035
Ni 0.02 0.30
Cr 0.02 0.20
Mo <0.01 0.30
V <0.01 0.08
Note: aSingle values are maximium.

Welding parameters (A)

φ mm 1F, 1G, 2G, 3G uphill,
3G downhill, 4G
2.4 40~75
3.2 70~130
4.0 90~180
4.8 140~225

All-weld mechanical properties

  Typical Guaranty
0.2%YS (MPa) 430 331min.
TS (MPa) 510 414min.
EI on 4d (%) 27 22min.
IV -29°C (J) 63 27min.
