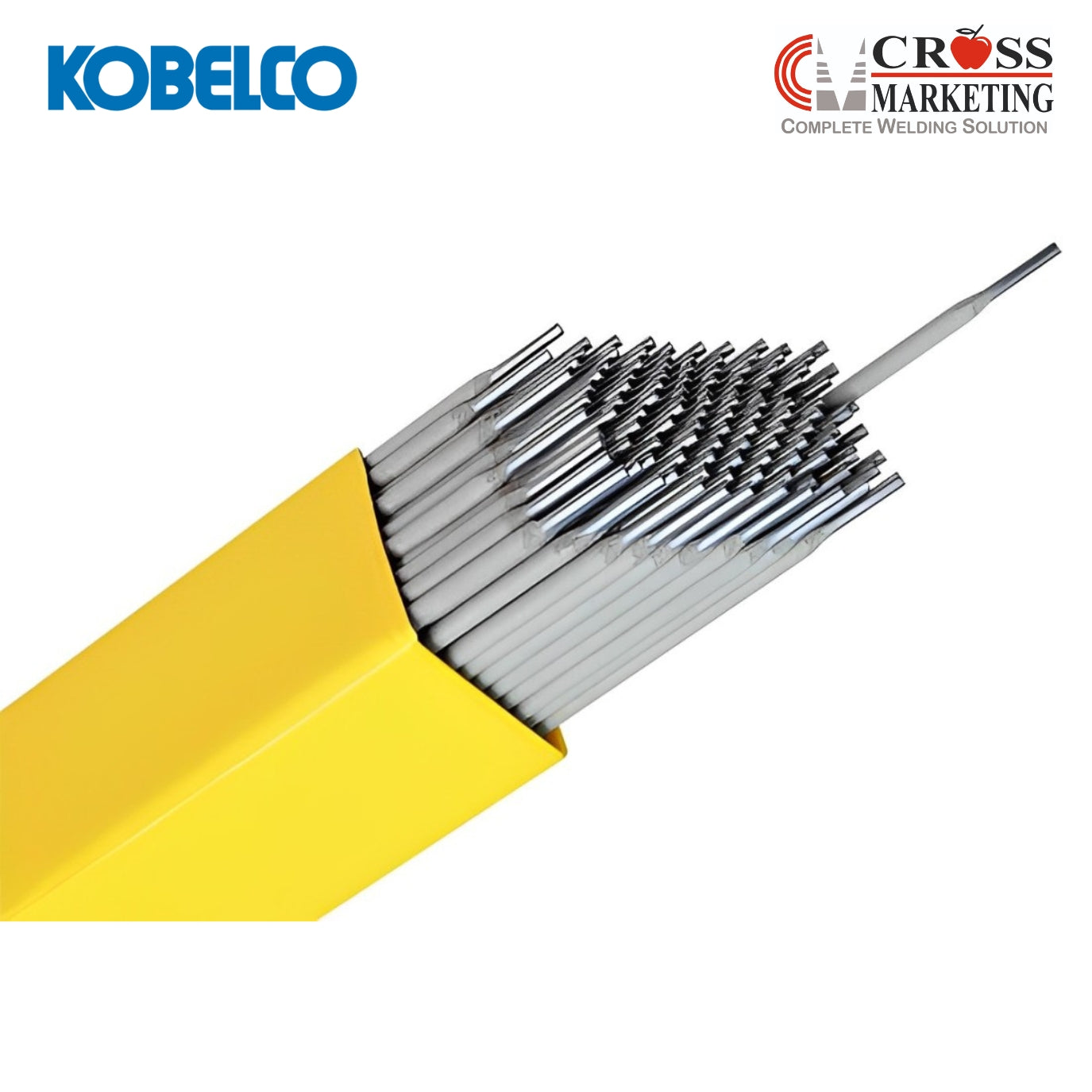

Description
| Features: |
|
|---|---|
| Classification: | AWS A5.1 E7048 |
| Redrying Conditions: | 300-350°Cx0.5-1h |
| Identification color: | 1st Red |
| Polarity: | AC, DCEP |
Packaging data
| φ mm | Length mm | kg/pack | kg/carton | g/piece | carton mm |
|---|---|---|---|---|---|
| 3.2 | 350 | 5 | 20 | 36 | 170W, 115H, 380L |
| 4.0 | 400 | 5 | 20 | 60 | 170W, 105H, 430L |
| 5.0 | 450 | 5 | 20 | 96 | 170W, 105H, 480L |
Composition (all-weld metal mass %)
| Typical (AC) | Guarantya | |
|---|---|---|
| C | 0.08 | 0.15 |
| Si | 0.47 | 0.90 |
| Mn | 1.04 | 1.60 |
| P | 0.012 | 0.035 |
| S | 0.002 | 0.035 |
| Ni | 0.01 | 0.30 |
| Cr | 0.02 | 0.20 |
| Mo | <0.01 | 0.30 |
| V | <0.01 | 0.08 |
| Othersb | 1.07 | 1.75 |
| Note: aSingle values are maximium. bCombined Limit for Mn+Ni+Cr+Mo+V |
||
Welding parameters (A)
| φ mm | All position (1F, 1G, 2F, 2G, 3G uphill, 4G) & 3G downhill |
|---|---|
| 3.2 | 110-160 |
| 4.0 | 160-220 |
| 5.0 | 200-260 |
All-weld mechanical properties
| Typical (AC) | Guaranty | |
|---|---|---|
| 0.2%YS (MPa) | 450 | 400min. |
| TS (MPa) | 540 | 483min. |
| EI on 4d (%) | 32 | 22min. |
| IV -29°C (J) | 110 | 27min. |
| PWHT | AW | AW |
Approvals / Click here for certificates
| ABS | 3, 3Y, 3Y400, H10 |
|---|---|
| LR | 3Ym, H15 |
| DNV | 3Y, H10 |
| BV | 3, 3Y, H10 |
| NK | KMW53Y40, H10 |
| CR a) | 3, 3Y, H10 |
| a):AC | |
