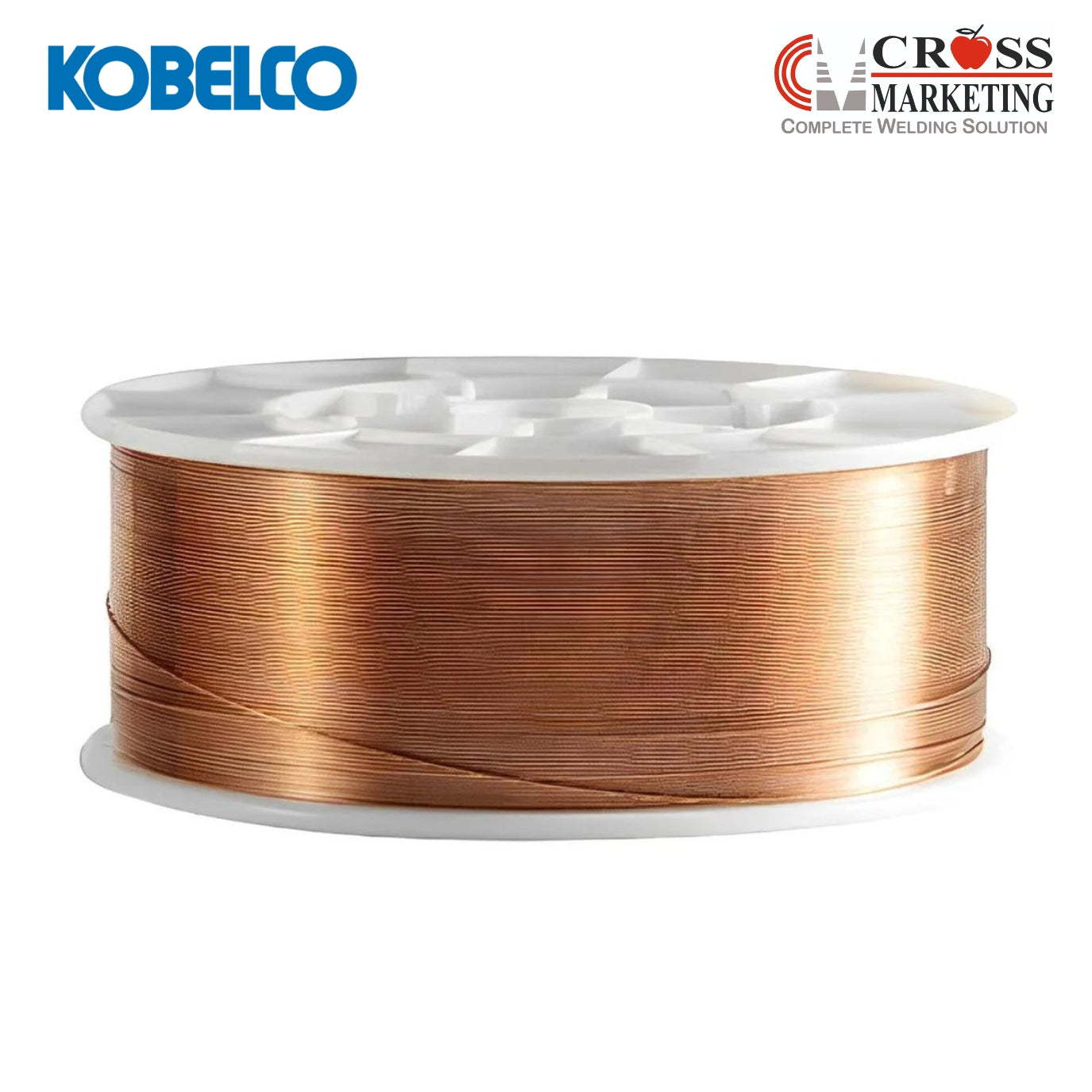

Kobelco; AWS A5.14 ERNiCr-3; MG-S70NCb; GMAW (Solid wire)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.14 ERNiCr-3; MG-S70NCb; GMAW (Solid wire)

Kobelco; AWS A5.14 ERNiCr-3; MG-S70NCb; GMAW (Solid wire)

Description

Features:
  • Inconel 82 type filler wire
  • Suitable for Inconel, Incoloy, dissimilar-metal　joints and overlaying on carbon steel
Classification: AWS A5.14 ERNiCr-3
Shielding gas: Ar
Polarity: DCEP



Packaging data

φ mm Spool
1.2 10kg
Volume mm 240W, 110H, 240L

Composition (wire mass%)

  Typical Guarantya
C 0.03 0.10
Si 0.22 0.50
Mn 3.0 2.5-3.5
P <0.01 0.03
S 0.002 0.015
Ni 72.0 67.0min.
Cr 20.0 18.0-22.0
Ti 0.28 0.75
Fe 1.7 3.0
Nb+Ta 2.6 2.0-3.0
Cu 0.01 0.50
Note: aSingle values are maximium.

Welding parameters (A)

φ mm 1F, 1G, 2G
1.2 80-200

All-weld mechanical properties

  Typical
0.2%YS (MPa) 370
TS (MPa) 660
EI on 4d (%) 41
IV -196°C (J) 140
