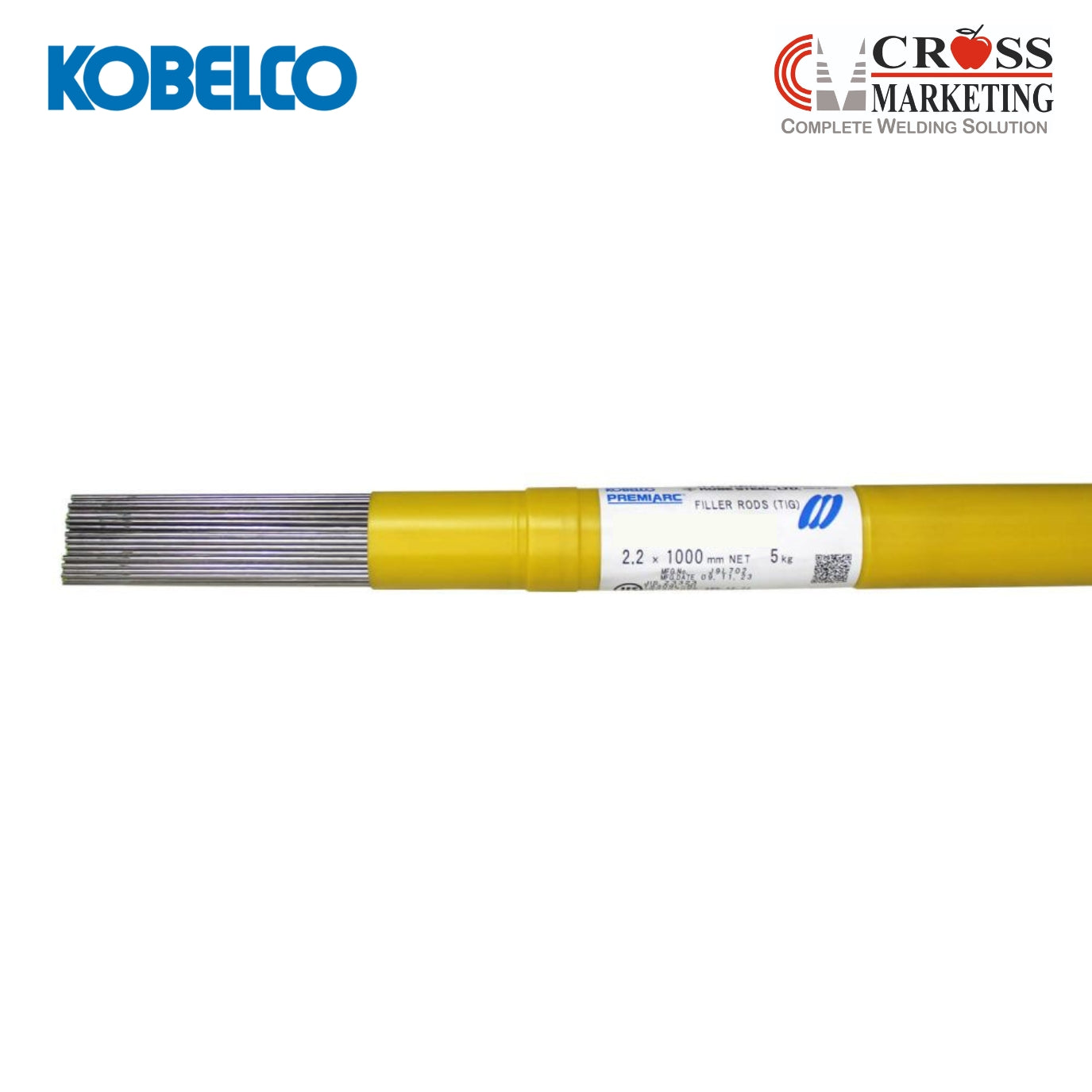

Kobelco; TG-S2535HR; GTAW (Tig welding rod & wire)
Roll over image to zoom in Click on image to zoom
Kobelco; TG-S2535HR; GTAW (Tig welding rod & wire)

Kobelco; TG-S2535HR; GTAW (Tig welding rod & wire)

Description

Features:
  • Suitable for heat resitant cast alloys with 0.4%C-25Cr-35%Ni-Nb
Classification: -
Shielding gas: Ar
Identification color: Coining
Polarity: DCEN


Packaging data


 Spool Tube
φ mm kg kg Length mm g/piece
1.2 1, 15 - - -
1.6 1, 15 - - -
2.4 - 5 1,000 35
3.2 - 5 1,000 62
Volume mm 1kg: 16.5d, 100D, 45W 58W, 43H, 1035L
d:innerφ
D:outerφ 15kg: 51.5d, 300D, 103W

Composition (rod and wire mass%)

  Typical
C 0.43
Si 1.1
Mn 1.7
P 0.01
S <0.001
Ni 35.1
Cr 26
Nb 1.29

All-weld mechanical properties

  Typical
0.2%YS (MPa) 560 180
TS (MPa) 780 210
EI on 4d (%) 17 24
Tested Temp. RT 900°C
