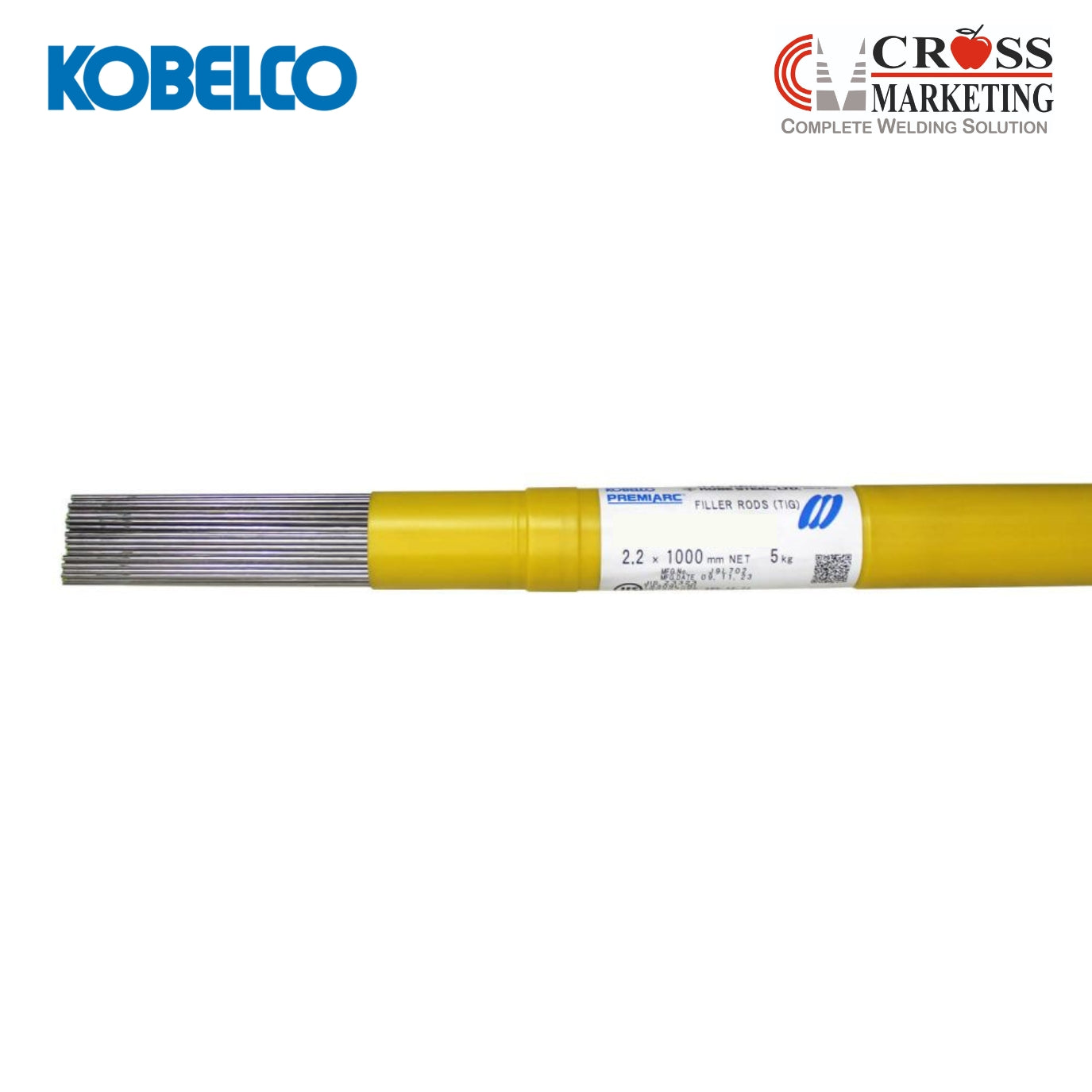

Kobelco; AWS A5.14 ERNiCr-3; TG-SN82; GTAW (Tig welding rod & wire)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.14 ERNiCr-3; TG-SN82; GTAW (Tig welding rod & wire)

Kobelco; AWS A5.14 ERNiCr-3; TG-SN82; GTAW (Tig welding rod & wire)

Description

Features:
  • Suitable for Inconel and Incoloy, dissimilar-metal joints and overlaying
Classification: AWS A5.14 ERNiCr-3
Shielding gas: Ar
Identification color: Coining
Polarity: DCEN



Packaging data


 Spool Tube
φ mm kg kg Length mm g/piece
1.2 1, 15 - - -
1.6 1, 15 - - -
2.4 - 5 1,000 38
3.2 - 5 1,000 68
Volume mm 1kg: 16.5d, 100D, 45W 58W, 43H, 1035L
d:innerφ
D:outerφ 15kg: 51.5d, 300D, 103W

Composition (rod and wire mass%)

  Typical Guarantya
C 0.01 0.10
Si 0.04 0.50
Mn 3.1 2.5-3.5
P <0.01 0.03
S 0.002 0.015
Cu 0.01 0.50
Ni 72.5 67.0min.
Cr 20.8 18.0-22.0
Nb+Ta 2.7 2.0-3.0
Ti 0.33 0.75
Fe 0.4 3.0
Note: aSingle values are maximium.

All-weld mechanical properties

  Typical
0.2%YS (MPa) 400
TS (MPa) 680
EI on 4d (%) 49
