Description
| Features: |
|
|---|---|

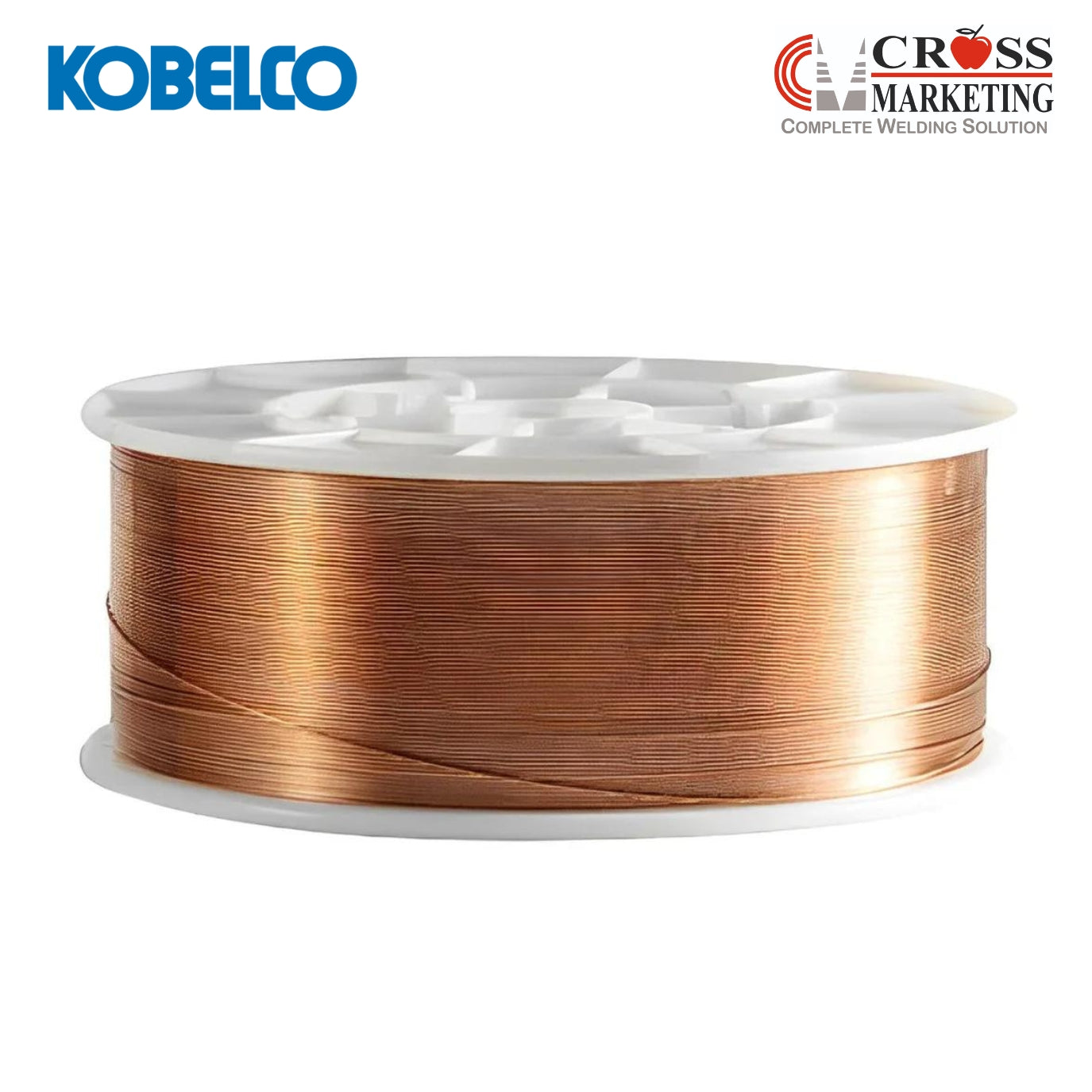

| Classification: | AWS A5.14 ERNiMo-8 (Wire only) |
| Type of flux: | Bonded |
| Redrying of flux: | 200-300°Cx1h |
| Polarity: | DCEP |
Packaging data
| Flux | Mesh | Can | Wire | φ mm | Spool | Coil | |
|---|---|---|---|---|---|---|---|
| PF-N4 | 12x65 | 20kg | US-709S | 1.2 | - | 15kg | - |
| 1.6 | 10kg | 15kg | - | ||||
| 2.4 | 10kg | 15kg | 25kg | ||||
| Volume mm | 240W, 350H, 240L | Volume mm | 240W, 110H, 240L | 285W, 110H, 285L | 430W, 90H, 430L | ||
Composition (wire mass%)
| Typical | Guarantya | |
|---|---|---|
| C | 0.02 | 0.10 |
| Si | 0.03 | 0.50 |
| Mn | 0.04 | 1.0 |
| P | 0.003 | 0.015 |
| S | 0.001 | 0.015 |
| Ni | Bal. | 60.0min. |
| Cr | 2.0 | 0.5-3.5 |
| Mo | 18.9 | 18.0-21.0 |
| Cu | 0.01 | 0.50 |
| W | 3.0 | 2.0-4.0 |
| Fe | 5.6 | 10.0 |
| Note: aSingle values are maximium. | ||
Composition (all-weld metal mass %)
| Typical | |
|---|---|
| C | 0.03 |
| Si | 0.82 |
| Mn | 0.4 |
| Ni | 66.1 |
| Cr | 1.7 |
| Mo | 18.1 |
| W | 2.7 |
| Fe | 9.5 |
All-weld mechanical properties
| Typical | Guaranty | |
|---|---|---|
| 0.2%YS (MPa) | 434 | - |
| TS (MPa) | 712 | 650min. |
| EI on 4d (%) | 53 | 30min. |
| IV -196°C (J) | 88 | - |
Approvals / Click here for certificates
| ABS |
MG(AWS A5.14 ERNiMo-8) |
|---|---|
| LR |
9NiM |
| DNV | MG |
| BV | UP |
| NK | KAWL92M |
| CCS | 9Ni |
