Description
| Features: |
|
|---|---|
| Classification: | AWS A5.9 ER2209 (Wire only) |
| Type of flux: | Bonded |
| Redrying of flux: | 200～300℃×1h |
Packaging data
| Flux | Mesh | Can | ||
|---|---|---|---|---|
| PF-S1D | 12×65 | 20kg | ||
| Volume mm | 240W, 350H, 240L | |||

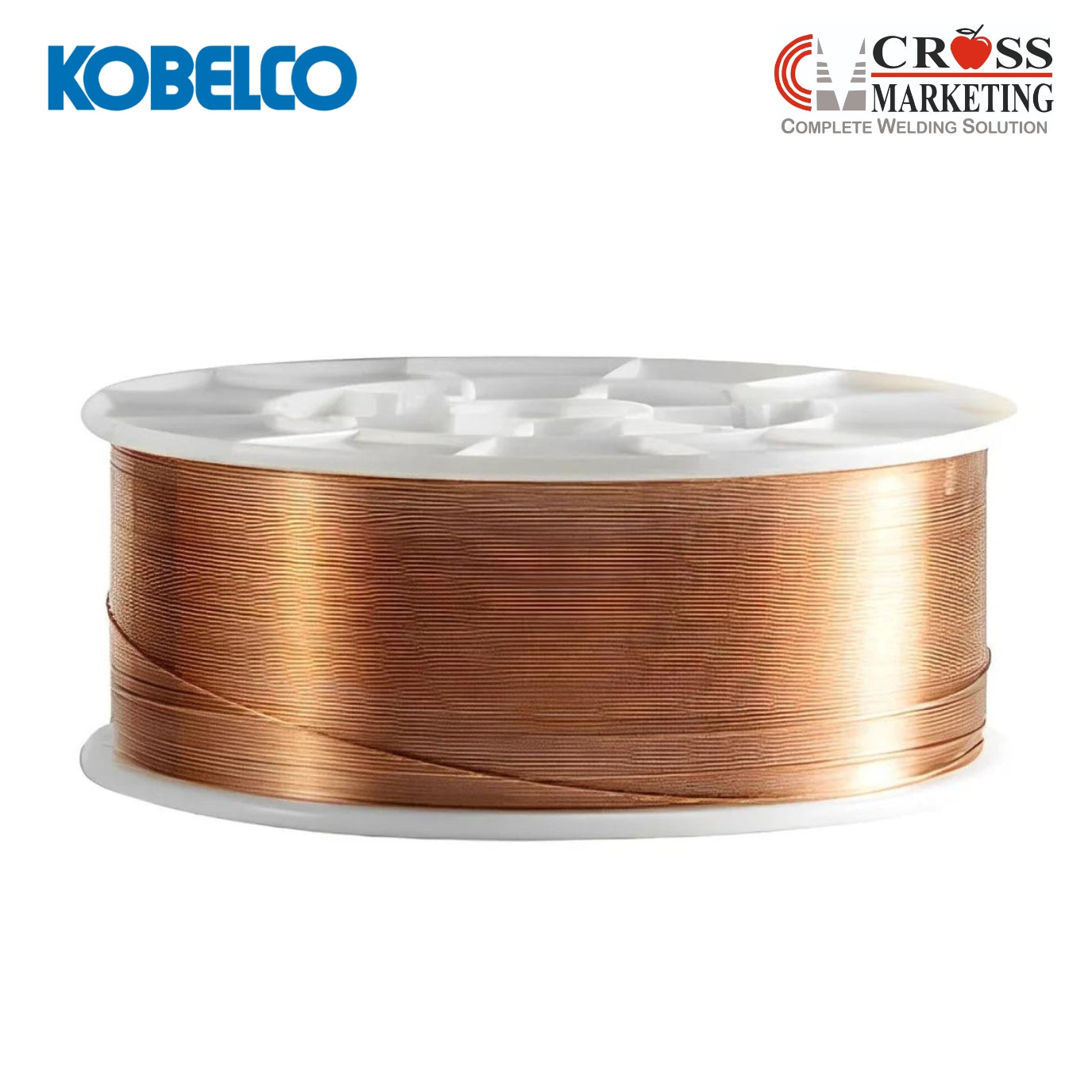

| Wire | φ mm | Spool | Coil | |
| US-2209 | 1.2 1.6 2.4 |
- 10kg 10kg |
15kg 15kg 15kg |
- - 25kg |
| Volume mm | 240W, 110H, 240L |
285W, 110H, 285L | 430W, 90H, 430L | |
Composition (wire mass%)
| Typical | Guarantya |
|
|---|---|---|
| C | 0.02 | 0.03 |
| Si | 0.36 | 0.90 |
| Mn | 1.42 | 0.50~2.00 |
| P | 0.01 | 0.03 |
| S | <0.01 | 0.03 |
| Ni | 8.9 | 7.5~9.5 |
| Cr | 23.3 | 21.5~23.5 |
| Mo | 3.3 | 2.5~3.5 |
| Cu | 0.16 | 0.75 |
| N | 0.15 | 0.08~0.20 |
| Note: aSingle values are maximium. |
||
Composition (all-weld metal mass %)
| Typical | |
|---|---|
| C | 0.02 |
| Si | 0.30 |
| Mn | 1.66 |
| P | 0.02 |
| S | <0.01 |
| Ni | 9.0 |
| Cr | 23.1 |
| Mo | 3.3 |
| Cu | 0.16 |
| N | 0.14 |
All-weld mechanical properties
| Typical | |
|---|---|
| 0.2%YS (MPa) | 618 |
| TS (MPa) | 798 |
| El on 4d (%) | 29 |
| IV -40℃ (J) | 61 |
Approvals / Click here for certificates
| LR | S31803T, S31803M(Chem) |
|---|---|
| DNV | MG |
| BV | 2205TM |
| CCS | 2205 |
