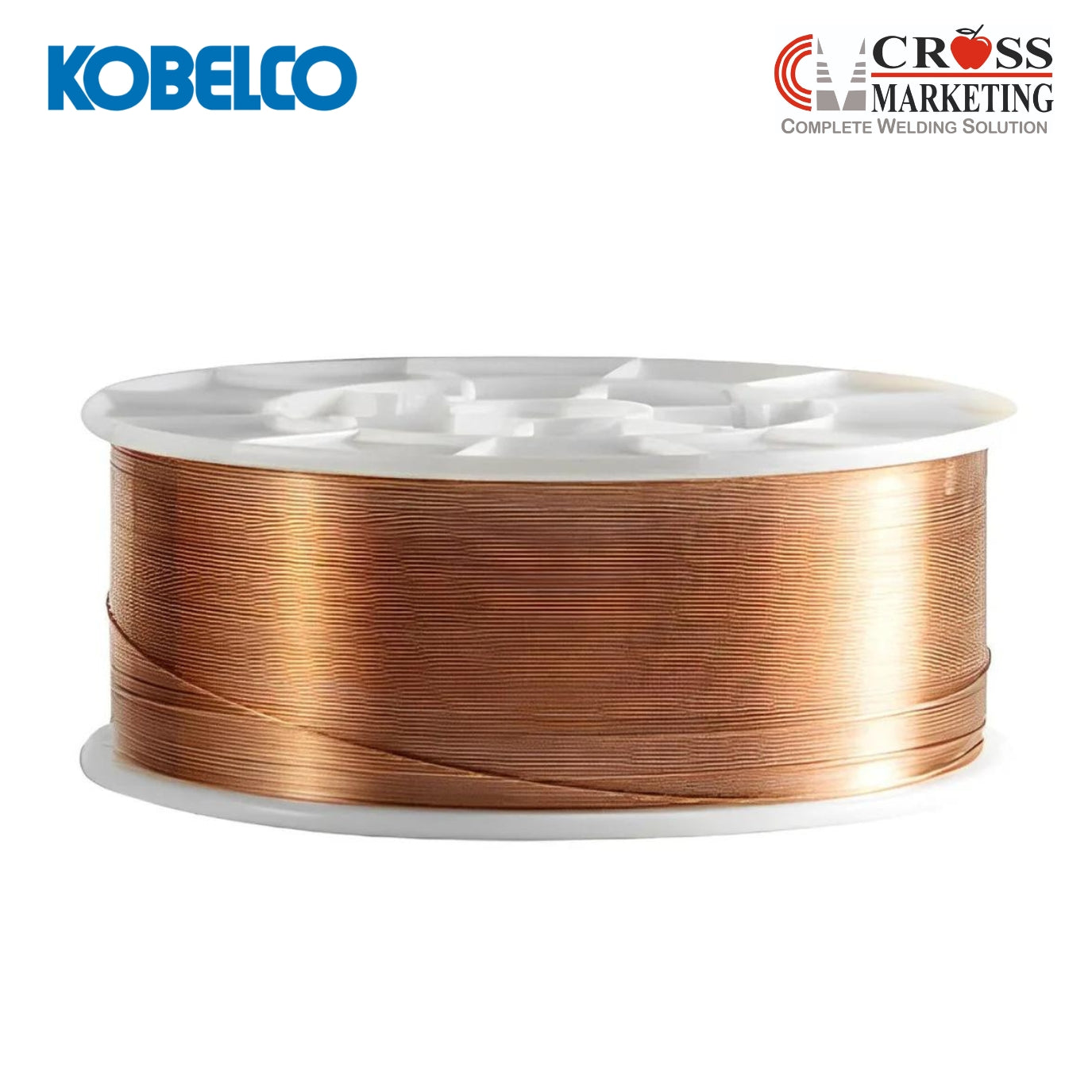

Kobelco; AWS A5.17 F7A2-EH14; G-60/ US-36; SAW (flux and wire combination)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.17 F7A2-EH14; G-60/ US-36; SAW (flux and wire combination)

Kobelco; AWS A5.17 F7A2-EH14; G-60/ US-36; SAW (flux and wire combination)

Description

Features:
  • Suitable for welding of thin or medium plate at high speeds
Classification: AWS A5.17 F7A2-EH14
Type of flux: Fused
Redrying of flux: 150-350°Cx1h
Polarity: AC



Packaging data

Flux Mesh Can



G-60
 12x65
12x150
 25kg
25kg



Volume mm 240W, 350H, 240L



Wire φ mm Spool Coil Drum
US-36 1.6 10kg
 20kg -
 -
 -
 -

2.0 10kg
 20kg -
 -
 -
 -

2.4 10kg
 -
 25kg 76kg -
 300kg

3.2 - -
 25kg 76kg -
 300kg

4.0
 - -
 25kg 75kg 150kg 300kg

4.8 - -
 25kg 75kg 150kg -

6.4 - -
 25kg 78kg
 159kg -
Volume mm 240W, 110H, 240L 300W, 110H, 300L 430W, 90H, 430L 740W, 110H, 740L 840W, 110H, 840L 680φ,
770H(2.4φmm)
600φ, 920H(3.2,4.0φmm)

Composition (wire mass%)

  Typical Guarantya
C 0.12 0.10-0.20
Si 0.03 0.10
Mn 1.95 1.70-2.20
P 0.013 0.030
S 0.005 0.030
Cu 0.11 0.35
Note: aSingle values are maximium.

Composition (weld metal mass %)


 Typical
C 0.07
Si 0.34
Mn 1.70
P 0.017
S 0.004

All-weld mechanical properties

  Typical Guaranty
0.2%YS (MPa) 460 400min.
TS (MPa) 560 483-655
EI on 4d (%) 27 22min.
IV -29°C (J) 40 27min.
