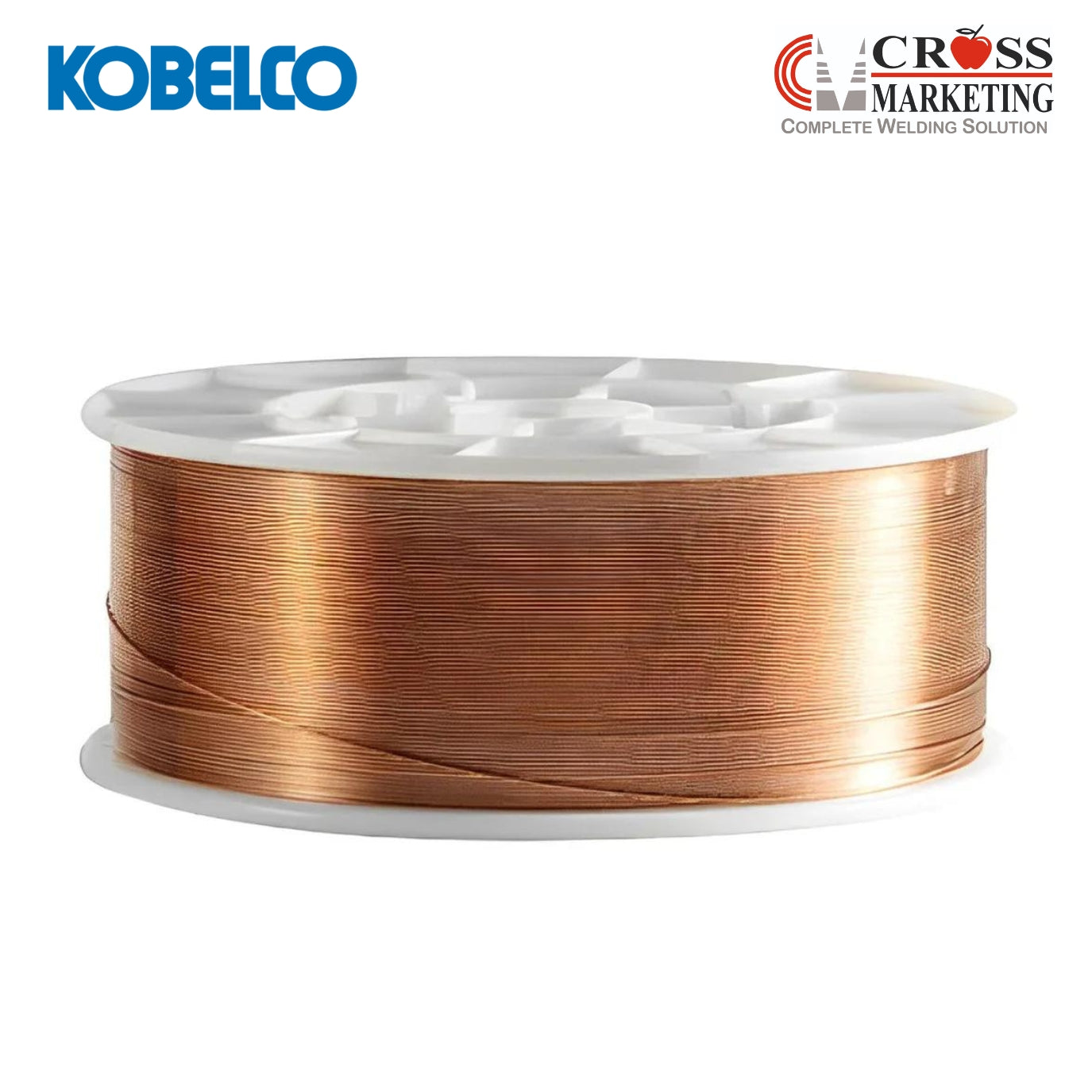

Kobelco; AWS A5.17 F7A2-EM12K, F6P4-EM12K ; AF-490E / US-29 SAW (flux and wire combination)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.17 F7A2-EM12K, F6P4-EM12K ; AF-490E / US-29 SAW (flux and wire combination)

Kobelco; AWS A5.17 F7A2-EM12K, F6P4-EM12K ; AF-490E / US-29 SAW (flux and wire combination)

Description

Features:
  • Suitable for single-pass-on-both-sides or multi-layer butt welding & fillet welding
  • Good bead appearance and impact value
Classification: AWS A5.17 F7A2-EM12K, F6P4-EM12K
ISO 14174 S A AB 1
Type of flux: Sintered
Redrying of flux: 200~300℃×1h
Polarity: DCEP



Packaging data

Flux Mesh Bag

AF-490E 12×65 20kg

Volume mm 500W, 50H, 700L







Wire Φmm Spool Coil
US-29 1.6 10kg 20kg -
 -

2.0 10kg 20kg 25kg
 -

2.4 10kg 20kg 25kg
 -

3.2 - - 25kg
 -

4.0 - - 25kg
 75kg

4.8 - - 25kg
 75kg
Volume mm 240W,110H,240L 300W,110H,300L 430W,90H,430L 740W,110H,740L

Composition (wire mass%)


 Typical Guarantya
C 0.09 0.05~0.15
Si 0.22 0.10~0.35
Mn 1.04 0.80~1.25
P 0.012 0.030
S 0.006 0.030
Cu 0.11 0.35
Note:  aSingle values are maximum.

Composition (weld metal mass %)


 Typical
C 0.04
Si 0.29
Mn 1.28
P 0.024
S 0.005

Weld mechanical properties


 Typical Guaranty
0.2%YS (MPa) 410 350 400min. 330min.
TS (MPa) 500 460 483~655 410~550
El on 4d (%) 34 36 22min. 22min.
IV X ℃ (J) -29℃:140 -40℃:150 27min. 27min.
PWHT (℃xh) AW 620x1 AW 620±15x1

Approvals

ABS 3Y
LR 3T, 3YM, 3YT
DNV ⅢYTM
BV 3TM, 3YTM
Note: Single electrode
