Description
Features: |
|
---|---|
Classification: | AWS A5.20 E71T-9C-J |
Shielding gas: | CO2 |
Polarity: | DCEP |

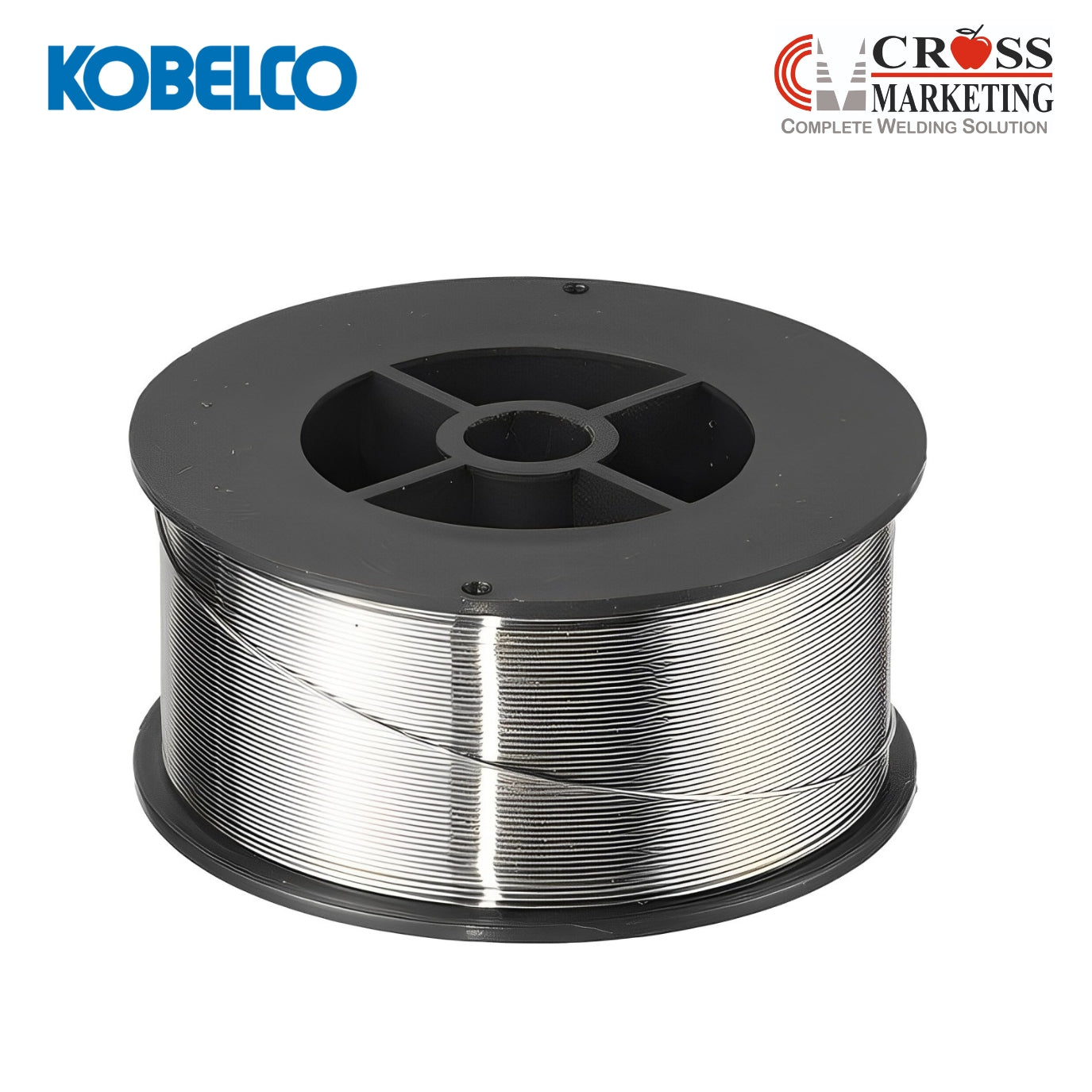

Packaging data
φ mm | Spool | ||
---|---|---|---|
1.2 | 12.5kg | 15kg | 20kg |
1.4 | - | 15kg | - |
Volume mm | 300W, 110H, 300L |
Composition (all-weld metal mass %)
Typical | Guarantya | |
---|---|---|
C | 0.05 | 0.12 |
Si | 0.38 | 0.90 |
Mn | 1.42 | 1.75 |
P | 0.01 | 0.03 |
S | 0.01 | 0.03 |
Ni | 0.35 | 0.50 |
Cr | 0.03 | 0.20 |
Mo | 0.01 | 0.30 |
V | 0.02 | 0.08 |
Cu | 0.02 | 0.35 |
Note: aSingle values are maximium. |
Welding parameters (A)
φ mm | 1F, 1G | 2F | 2G | 3G uphill, 4G |
---|---|---|---|---|
1.2 | 150-300 | 150-300 | 150-280 | 150-250 |
1.4 | 150-400 | 150-350 | 150-300 | 150-250 |
All-weld mechanical properties
Typical | Guaranty | |
---|---|---|
0.2%YS (MPa) | 540 | 400min. |
TS (MPa) | 590 | 483-655 |
EI on 4d (%) | 29 | 22min. |
IV -40°C (J) | 80 | 27min. |
Approvals / Click here for certificates
ABS | 4Y400SA, H5 |
---|---|
LR | 4Y40S, H5 |
DNL | IVYMS (H5) |
BV | SA4YM H5 |
NK | KSW54Y40G (C) H5 |
CR | 3YS-HH, L1YS-HH, MG |
CCS | 4Y40S,H5 |
