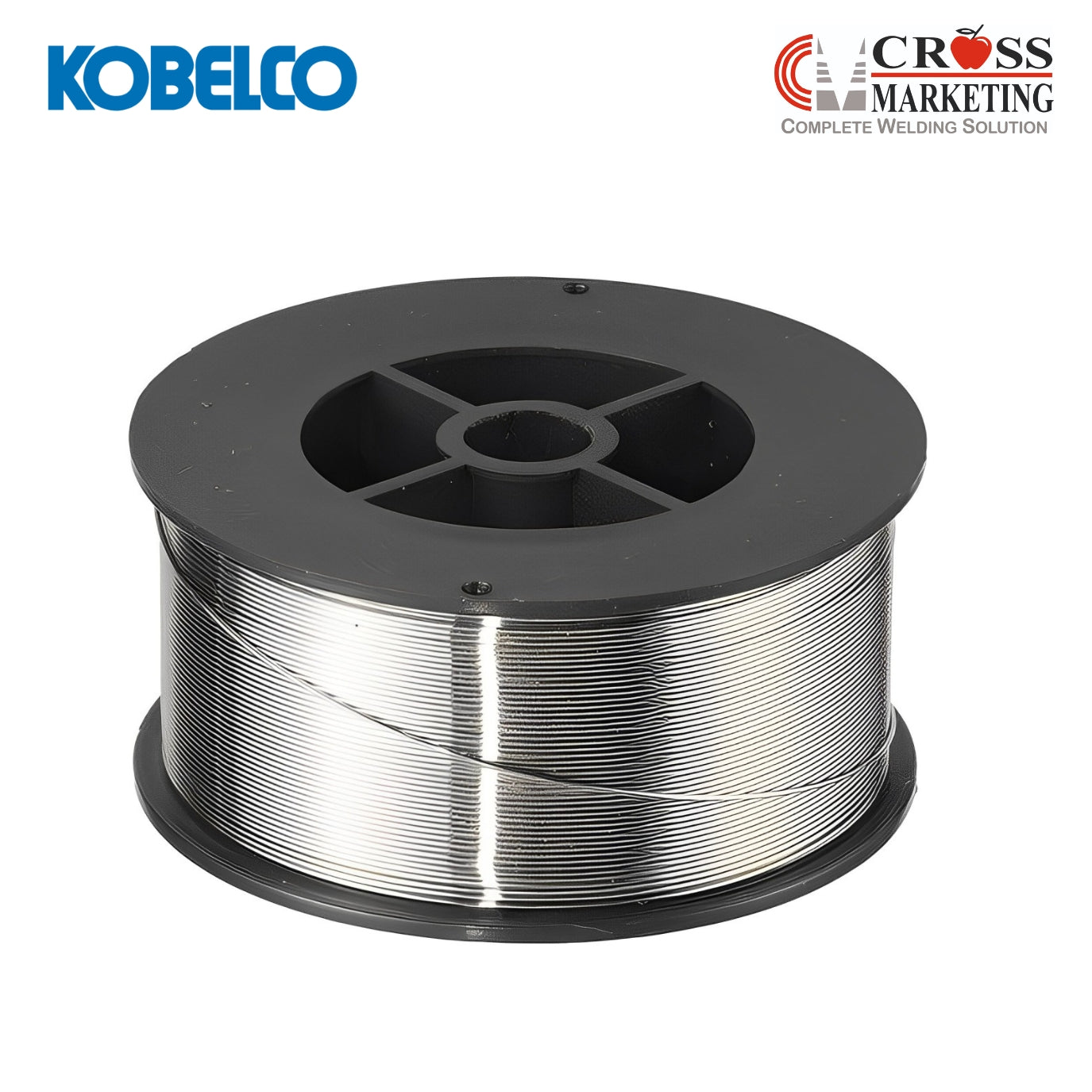

Kobelco; AWS A5.29 E81T1-K2C; DW-55L; FCAW(Flux cored wire)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.29 E81T1-K2C; DW-55L; FCAW(Flux cored wire)

Kobelco; AWS A5.29 E81T1-K2C; DW-55L; FCAW(Flux cored wire)

Description

Features:
  • Excellent impact values down to -60°C
Classification: AWS A5.29 E81T1-K2C
Shielding gas: CO2
Polarity: DCEP



Packaging data

φ mm
 Spool
1.2 12.5kg 15kg 20kg
1.4 - 15kg -
Volume mm 300W, 110H, 300L

Composition (all-weld metal mass %)

  Typical Guarantya
C 0.04 0.15
Si 0.38 0.80
Mn 1.32 0.50-1.75
P 0.010 0.030
S 0.008 0.030
Ni 1.51 1.00-2.00
Cr 0.02 0.15
Mo 0.01 0.35
V 0.02 0.05
Note: aSingle values are maximium.

Welding parameters (A)

φ mm 1F, 1G 2F 2G 3G uphill, 4G
1.2 150-300 150-300 150-280 150-250
1.4 150-400 150-350 150-300 150-250

All-weld mechanical properties

  Typical Guaranty
0.2%YS (MPa) 550 469min.
TS (MPa) 620 552-689
EI on 4d (%) 27 22min.
IV -60°C (J) 70 27min.

Approvals / Click here for certificates

ABS 3YSA,5Y400SA,MG, H5
LR 5Y40S, 5Y40M, H5
DNV ⅤY40MS (H5)
BV SA5Y40M H5
NK KSWL3G (C),KSWL3G(C)H5-TS540M, KSW54Y40G (C), H5
KR L 3SG (C) H5, 5Y40SG (C) H5
CCS 5Y40S H5
