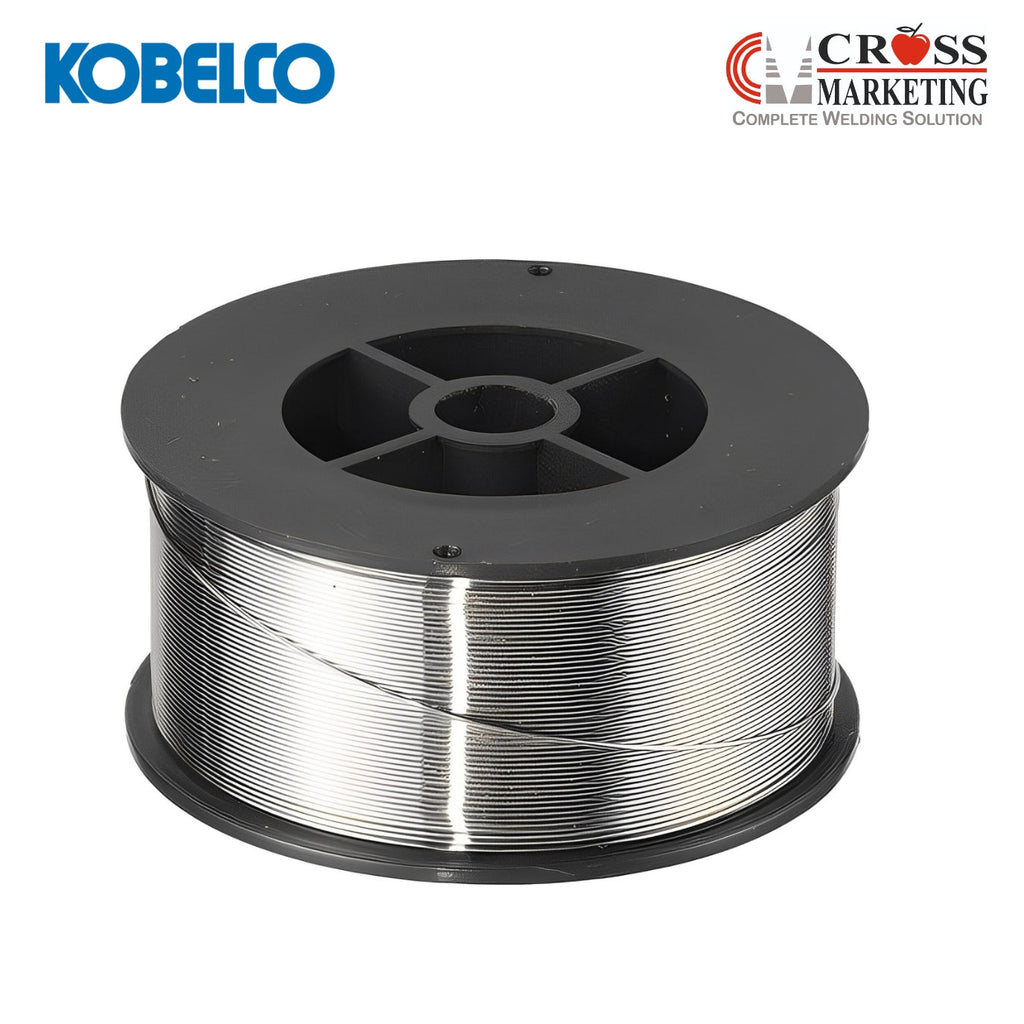

Kobelco; AWS A5.22 E308LT1-1/4; DW-308LP-XR; FCAW(Flux cored wire)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.22 E308LT1-1/4; DW-308LP-XR; FCAW(Flux cored wire)

Kobelco; AWS A5.22 E308LT1-1/4; DW-308LP-XR; FCAW(Flux cored wire)

Description

Features:
  • Applied for 304L type stainless steel
  • Low Cr (Ⅵ) stainless steel flux cored wire
Classification: AWS A5.22 E308LT1-1/4
Shielding gas: CO2 or Ar-CO2
Polarity: DCEP



Packaging data

φ mm Spool
1.2 12.5kg
Volume mm 295W, 110H, 295L

Composition (wire mass%)


 Typical (Ar-CO2) Guarantya
C 0.03 0.04
Si 0.8 1.0
Mn 1.8 0.5~2.5
P 0.02 0.04
S <0.01 0.03
Ni 10.4 9.0~11.0
Cr 19.5 18.0~21.0
Mo 0.02 0.75
Cu 0.04 0.75
Note: aSingle values are maximium.

Welding parameters (A)

φ mm 1F, 1G, 2F 2G 3G uphill 4G
1.2 130~270 150~220 130~220 150~200

All-weld mechanical properties


 Typical (Ar-CO2) Guaranty
0.2%YS (MPa) 386 -
TS (MPa) 551 518min.
El on 4d (%) 42 30min.

Approvals / Click here for certificates

ABS* MG（AWS A5.22 E308LT1-4）
CWB E308LT1-1, E308LT1-4
Note: *Ar-25%CO2
