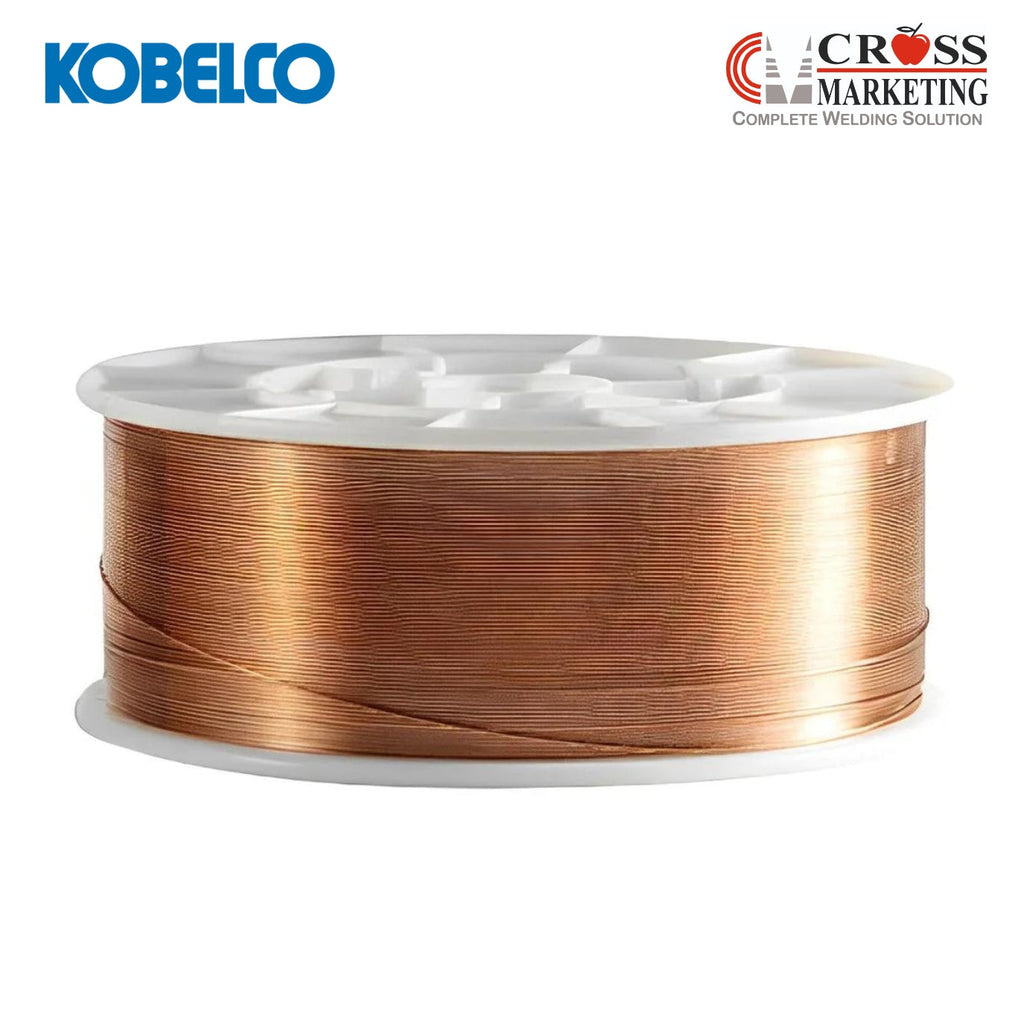

Kobelco; AWS A5.28 ER80S-B2; MG-S80B2F; GMAW (Solid wire)
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.28 ER80S-B2; MG-S80B2F; GMAW (Solid wire)

Kobelco; AWS A5.28 ER80S-B2; MG-S80B2F; GMAW (Solid wire)

Description

Features:
  • Applied for ASTM A387 Gr.11 and equivalents
  • Suitable for 1 pass fillet welding in the panel fin tube fabrication
  • Do not use for multi-pass welding
Classification: AWS A5.28 ER80S-B2
Shielding gas: Ar-2~5%O2, Ar-5~20%CO2 mixture
Polarity: DCEP



Packaging data

φ mm
 Spool
 Drum
0.9 10kg
 20kg
 -
 -
1.0 10kg
 20kg
 250kg
 -
1.2
 10kg
 20kg
 250kg
 400kg
1.4
 10kg
 20kg
 -
 -
1.6
 10kg
 20kg
 -
 400kg
Volume mm 240W, 110H, 230L
 280W, 110H, 270L
 530φ, 820H
 680φ, 770H

Composition (wire mass%)


 Typical
 Guarantya
C
 0.11
 0.07~0.12
Si
 0.50
 0.40~0.70
Mn 0.67
 0.47~0.70
P 0.004
 0.025
S 0.004
 0.025
Cr 1.40
 1.20~1.50
Ni 0.01
 0.20
Mo 0.55
 0.40~0.65
Cu 0.15
 0.35
Note: aSingle values are maximium.

Welding parameters (A)

φ mm
 1F, 1G, 2F
 2G, 4G
1.2 240~300
 130~190

All-weld mechanical properties


 Typical
 Guaranty
0.2%YS (MPa)
 550
 470min.
TS (MPa)
 650
 550min.
El on 4d (%) 28
 19min.
IV -18°C (J) 140
 -
PWHT (°Cxh) 620x1
 620±15x1
SG Ar-2%O2 Ar-2%O2
