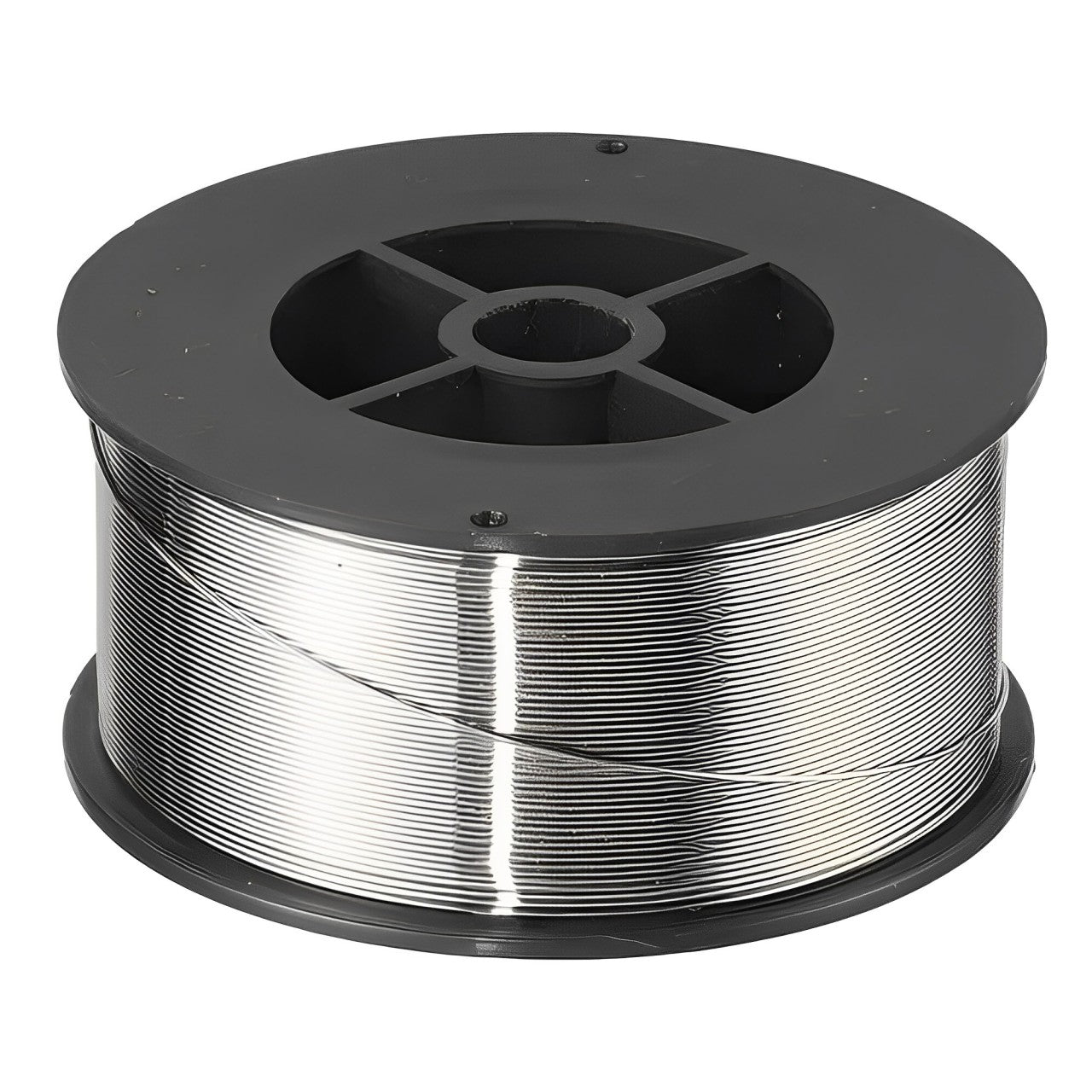

Kobelco;AWS A5.34 ENiCrMo3T1-1/4; DW-N625; FCAW(Flux cored wire)
Roll over image to zoom in Click on image to zoom
Kobelco;AWS A5.34 ENiCrMo3T1-1/4; DW-N625; FCAW(Flux cored wire)

Kobelco;AWS A5.34 ENiCrMo3T1-1/4; DW-N625; FCAW(Flux cored wire)

Description

Features:
  • Suitable for Ni-based alloy of 625, dissimilar-metal joints and overlaying
Classification: AWS A5.34 ENiCrMo3T1-1/4
Shielding gas: Ar-CO2, CO2
Polarity: DCEP



Packaging data

φ mm Spool
1.2 12.5kg
Vollume mm 259W, 110H, 295L

Composition (all-weld metal mass %)

  Typical (Ar-CO2) Guarantya
C 0.03 0.10
Si 0.37 0.50
Mn 0.28 0.50
P 0.01 0.02
S 0.003 0.015
Ni 63.3 58.0min.
Cr 21.6 20.0-23.0
Mo 8.6 8.0-10.0
Cu 0.01 0.50
Fe 1.8 5.0
Nb+Ta 3.57 3.15-4.15
Ti 0.11 0.40
Note: aSingle values are maximium.

Welding parameters (A)

φ mm 1F, 1G, 2F, 2G 3G uphill
1.2 150-210 130-180

All-weld mechanical properties

  Typical Guaranty
0.2%YS (MPa) 472 -
TS (MPa) 752 690min.
EI on 4d (%) 38 25min.
IV 0°C (J) 67 -

Approvals / Click here for certificates

ABS MG
BV UP (ENiCrMo3T1-4)
Note: Ar-CO2
