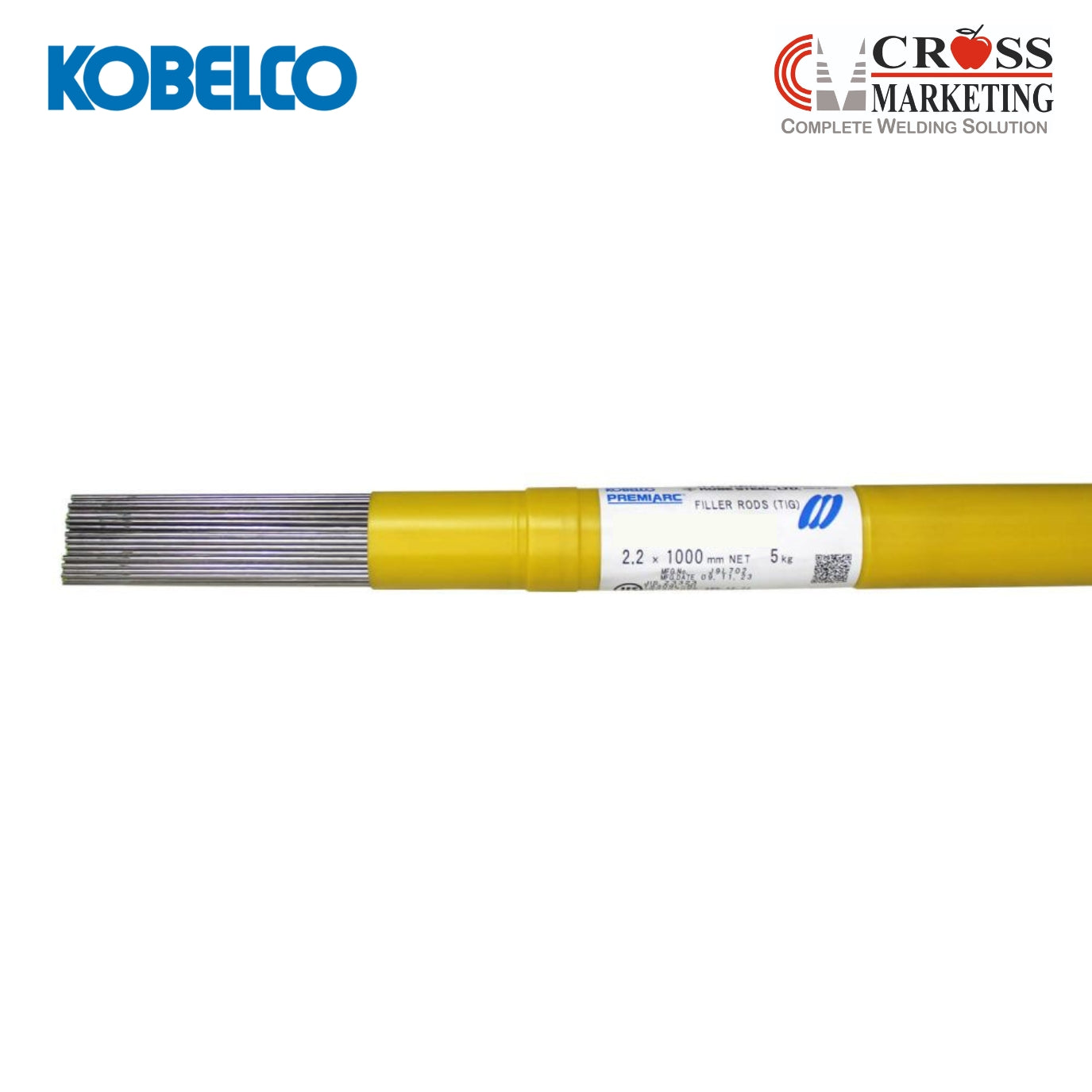

Kobelco; AWS ER 90SB91; TGS 90B91; GTAW (Tig welding rod); P91 Welding Filler Wire
Roll over image to zoom in Click on image to zoom
Kobelco; AWS ER 90SB91; TGS 90B91; GTAW (Tig welding rod); P91 Welding Filler Wire

Kobelco; AWS ER 90SB91; TGS 90B91; GTAW (Tig welding rod); P91 Welding Filler Wire

Description

Features:
  • Applied for ASTM A387 Gr.91 and equivalents
  • Excellent creep rupture strength
Classification: AWS A5.28 ER90S-B91
Shielding gas: Ar
Identification color: 1st Purple Blue
Polarity: DCEN



Packaging data


 Spool
 Tube
φ mm
 kg kg Length mm g/piece
1.0
 10
 -
 -
 -
1.2
 10
 -
 -
 -
1.6
 10
 5 1,000 16
2.0
 -
 5
 1,000
 25
2.4
 -
 5
 1,000
 35
3.2
 -
 5
 1,000
 63
Volume mm 240W, 110H, 230L
 40W, 35H, 1015L

Composition (wire mass%)


 Typical
 Guarantya
C 0.10
 0.07~0.13
Si
 0.29 0.15~0.50
Mn 0.72
 1.20
P 0.004
 0.010
S 0.005
 0.010
Cu 0.01
 0.20
Cr 8.36
 8.00~10.50
Mo 0.97
 0.85~1.20
Ni 0.15
 0.80
Co 0.41
 -
V 0.18
 0.15~0.30
Al <0.01
 0.04
Nb 0.06
 0.02~0.10
N 0.04
 0.03~0.07
Mn+Ni 0.87
 1.50
Note: aSingle values are maximium.

All-weld mechanical properties


 Typical
 Guaranty
0.2%YS (MPa) 620 414min.
TS (MPa)
 750
 621min.
El on 4d (%) 25 16min.
IV 0℃ (J) 150 -
PWHT (°Cxh) 760x2
 760±15x2
