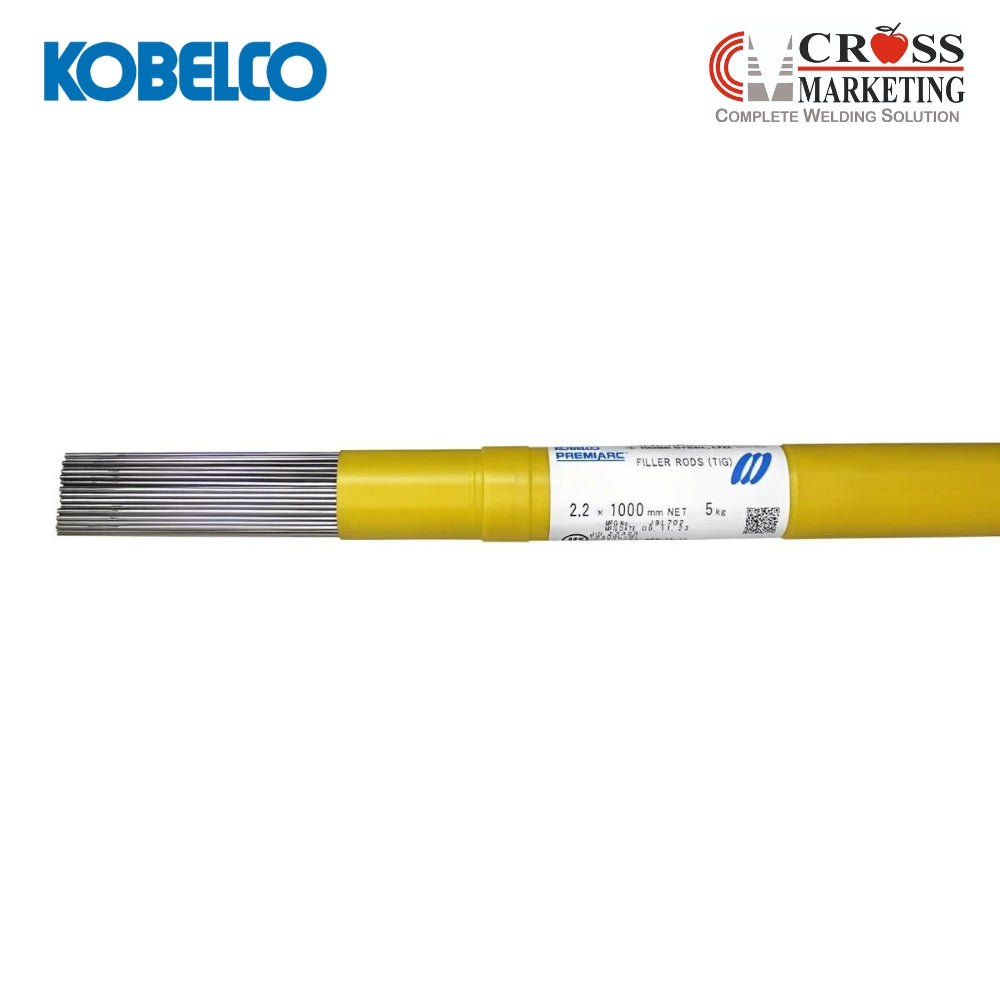

Kobelco; AWS R347T1-5; TGX 347; Non Purging Filler Wire for SS 347
Roll over image to zoom in Click on image to zoom
Kobelco; AWS R347T1-5; TGX 347; Non Purging Filler Wire for SS 347

Kobelco; AWS R316LT1-5; TGX 316L; Non Purging Filler Wire for SS 316L

Description

Features:
  • Applicable for 316 and 316L type steels
  • Suitable for root pass in one-side TIG welding without back shielding
  • In order to avoid defects, TG-X filler rod must be moved quickly at short pitch, unlike TIG filler rod
Classification: AWS A5.22 R316LT1-5
Shielding gas: Ar
Identification color: Green
Polarity: DCEN



Packaging data

  Tube
φ mm kg Length mm g/piece Volume mm
2.2 5 1,000 26 42W, 35H, 1015L

Composition (all-weld metal mass %)

  Typical Guarantya
C 0.02 0.03
Si 0.7 1.2
Mn 1.4 0.5-2.5
P 0.02 0.04
S <0.01 0.03
Ni 12.0 11.0-14.0
Cr 18.4 17.0-20.0
Mo 2.2 2.0-3.0
Cu 0.05 0.75
Bi >0.002 -
Note: aSingle values are maximium.

Welding parameters (A)

thickness mm 3-5 6-9 Over 10
current A 80-90 90-105 90-110

All-weld mechanical properties

  Typical Guaranty
0.2%YS (MPa) 440 -
TS (MPa) 600 483min.
EI on 4d (%) 38 30min.
IV 0°C (J) 110 -

Approvals / Click here for certificates

NK MG
