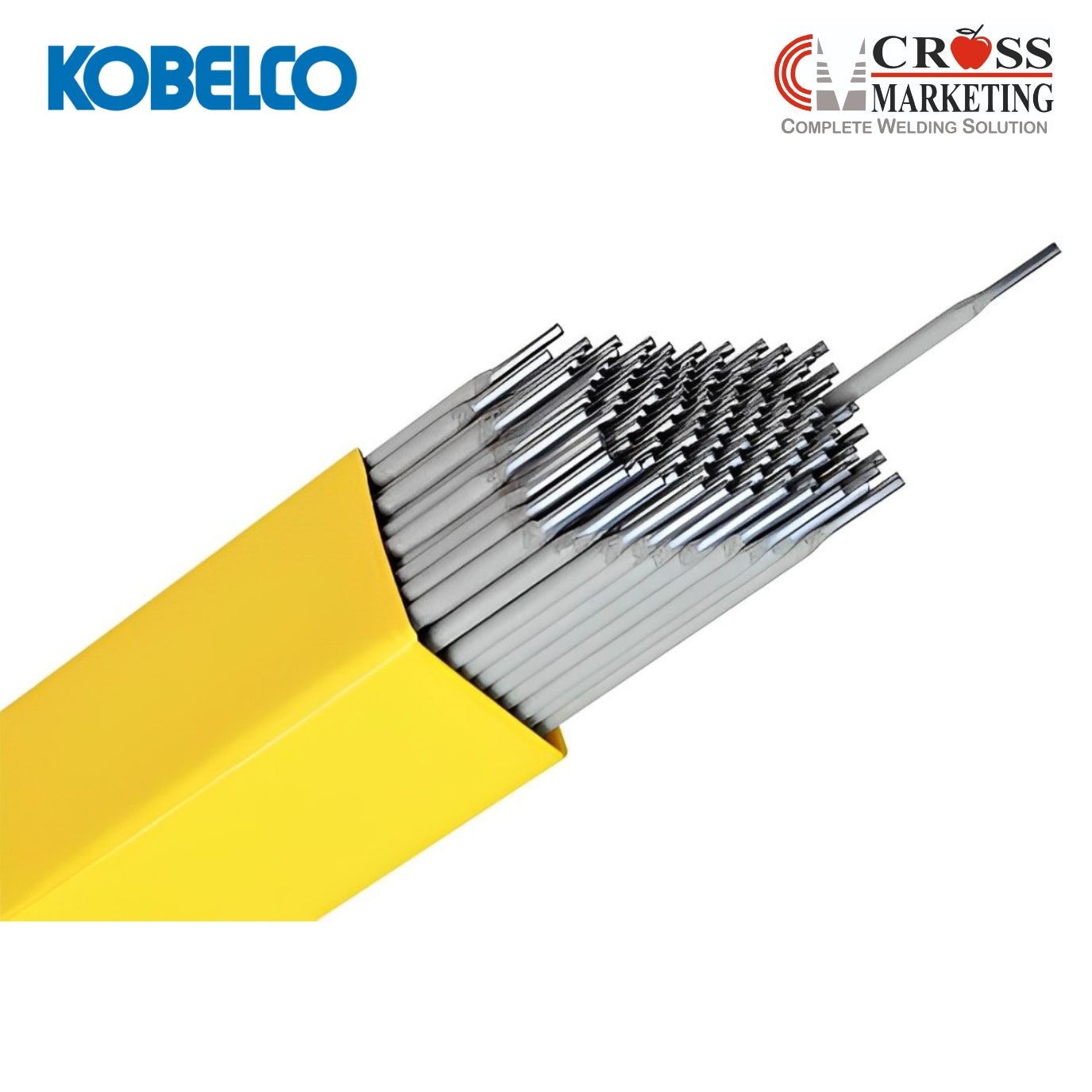

Kobelco; AWS A5.5 E9015-B91; CM-95B91; SMAW (Stick Electrode); P91 Welding Electrode
Roll over image to zoom in Click on image to zoom
Kobelco; AWS A5.5 E9015-B91; CM-95B91; SMAW (Stick Electrode); P91 Welding Electrode

Kobelco; AWS A5.5 E9015-B91; CM-95B91; SMAW (Stick Electrode); P91 Welding Electrode

Description

Features:
  • Applied for ASTM A387 Gr.91 and equivalents
  • Excellent creep rupture strength
  • P91 Steel / Pipe Welding
Classification: AWS A5.5 E9015-B91
Redrying Conditions: 325~375℃x1h
Polarity: DCEP



Packaging data

φ mm
 Length mm
 kg/pack
 kg/carton
 g/piece
 carton mm
2.5/2.6
 300
 2
 20
 18
 270W, 85H, 330L
3.2
 350
 5
 20
 31
 170W, 120H, 380L
4.0
 350, 400
 5
 20
 48, 55
 170W, 115H, 430L

Composition (all-weld metal mass %)


 Typical
 Guarantya
C
 0.09 0.08~0.13
Si
 0.23
 0.30
Mn 0.71
 1.20
P 0.01
 0.01
S <0.01
 0.01
Ni 0.10
 0.80
Co 0.42
 -
Cr 8.4
 8.0~10.5
Mo 0.99
 0.85~1.20
Nb 0.06
 0.02~0.10
V 0.21
 0.15~0.30
Cu 0.03
 -
Al <0.01
 0.04
N 0.03
 0.02~0.07
Mn+Ni 0.81
 1.40
Note: aSingle values are maximium.

Welding parameters (A)

φ mm
 1F, 1G, 2F, 2G
 3G uphill, 4G
2.5/2.6 55~90
 50~80
3.2 75~115
 70~110
4.0
 120~160
 90~150

All-weld mechanical properties


 Typical
 Guaranty
0.2%YS (MPa)
 590
 531min.
TS (MPa)
 730
 621min.
El on 4d (%)
 21
 17min.
V 20°C (J) 70
 -
PWHT (°Cxh) 760x2
 760±15x2
