Description
Features: |
|
---|---|
Classification: | - |
Shielding gas: | CO2 |
Polarity: | DCEP |

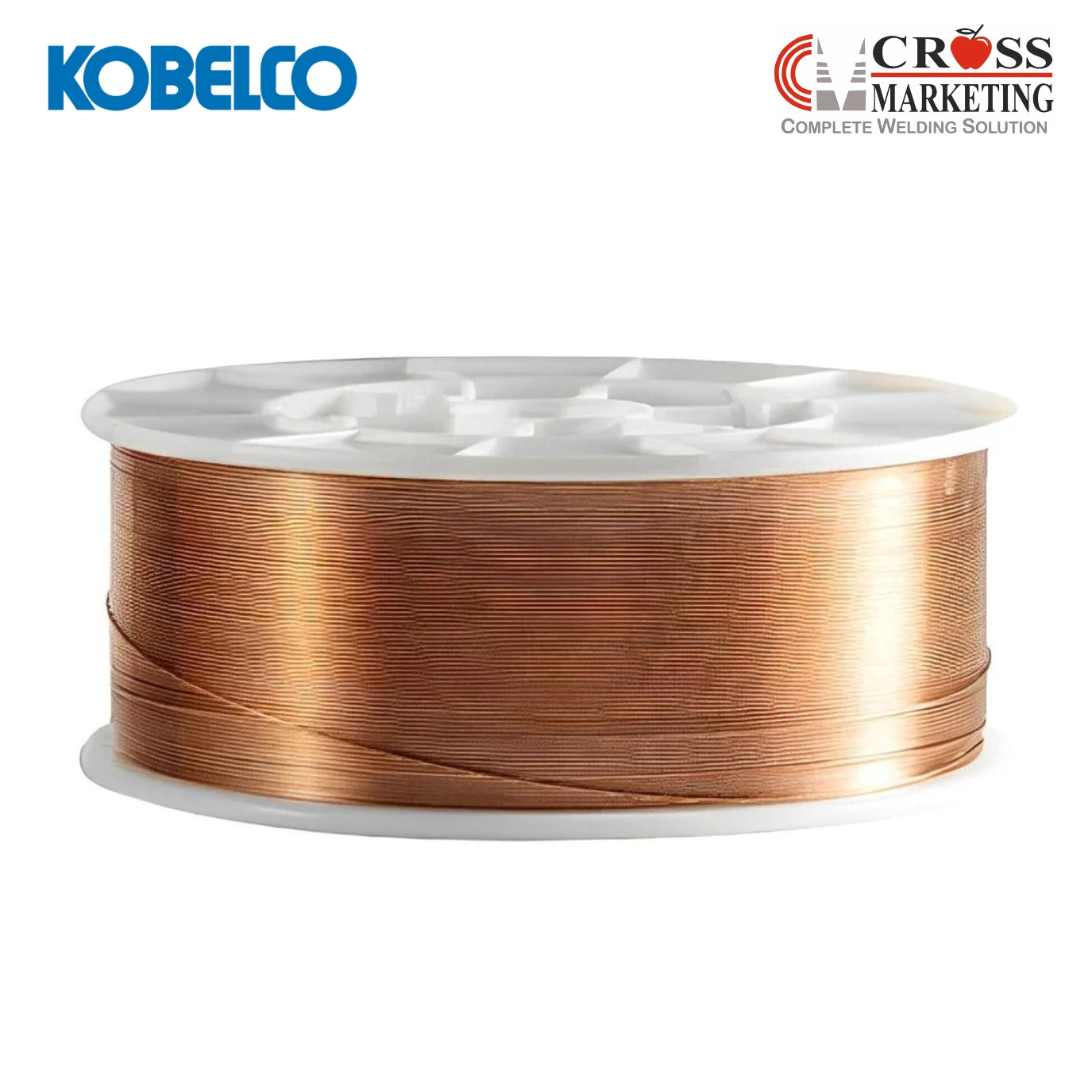

Packaging data
φ mm | Spool |
---|---|
0.9 | 20kg |
1.2 |
20kg |
1.4 |
20kg |
1.6 |
20kg |
Volume mm | 280W, 110H,270L |
Composition (wire mass%)
Typical | Guarantya | |
---|---|---|
C | 0.04 | 0.12 |
Si | 0.82 | 0.60-1.00 |
Mn | 1.95 | 1.40-2.10 |
P | 0.013 | 0.025 |
S | 0.010 | 0.025 |
Mo | 0.35 | 0.10-0.45 |
Cu | 0.25 | 0.50 |
Ti | 0.20 | 0.02-0.30 |
Note: aSingle values are maximium. |
Welding parameters (A)
φ mm | 1F, 1G, 2F | 2G |
---|---|---|
0.9 | 50-200 | 50-180 |
1.2 | 100-350 | 100-300 |
1.4 | 150-450 | 150-350 |
1.6 | 200-550 | 200-400 |
All-weld mechanical properties
Typical | Guaranty | ||
---|---|---|---|
0.2%YS (MPa) | 590 | 570 | 500min. |
TS (MPa) | 670 | 660 | 552min. |
EI on 4d (%) | 28 | 29 | 19min. |
IV -18°C (J) | 90 | 80 | -5°C: 47min. |
PWHT (°Cxh) | AW | 620x5 | AW |
Approvals / Click here for certificates
ABS | 3YQ500 |
---|---|
DNV | ⅢY46MS, MG |
NK | KSW3Y50G (C) H5 |
