Description
Important Features
Robust Welding torches for Mild Steel & Stainless Steel fabrication
| Industrial Applications |
|---|
| Fabrication |
| Maintenance & Repair |
| Process |
| MIG/MAG(GMAW |
| Flux Cored(FCAW) |
*Aluminium MIG also possible with Teflon Liner
| Technical Specifications | |||||
| Rated welding current | Torch model | 20CS4 | 35CS4 | 40CS4 | 50CS4 |
| Duty cycle | 60%,(CO2),Amps | 200 | 350 | 350 | 450 |
| 25%,(Ar-CO2),Amps | 200 | ||||
| 35%,(Ar-CO2),Amps | 350 | 350 | 450 | ||
| 100%,(CO2),Amps | 155 | 270 | 270 | 350 | |
| 100%,(Ar-CO2),Amps | 100 | 200 | 200 | 270 | |
| Applicable wire dia | mm | 0.8,1.0 | 0.8,1.0,1.2 | 0.8,1.0,1.2 | 1.2,1.6 |
| Cable length# | metre | 3 | 3 | 3 | 3 |
| Weight(incl. cable) | Kg | 1.9 | 2.8 | 2.8 | 3.6 |
| Standard | IEC60974.7-2000 | ||||
| Ordering information | |||||

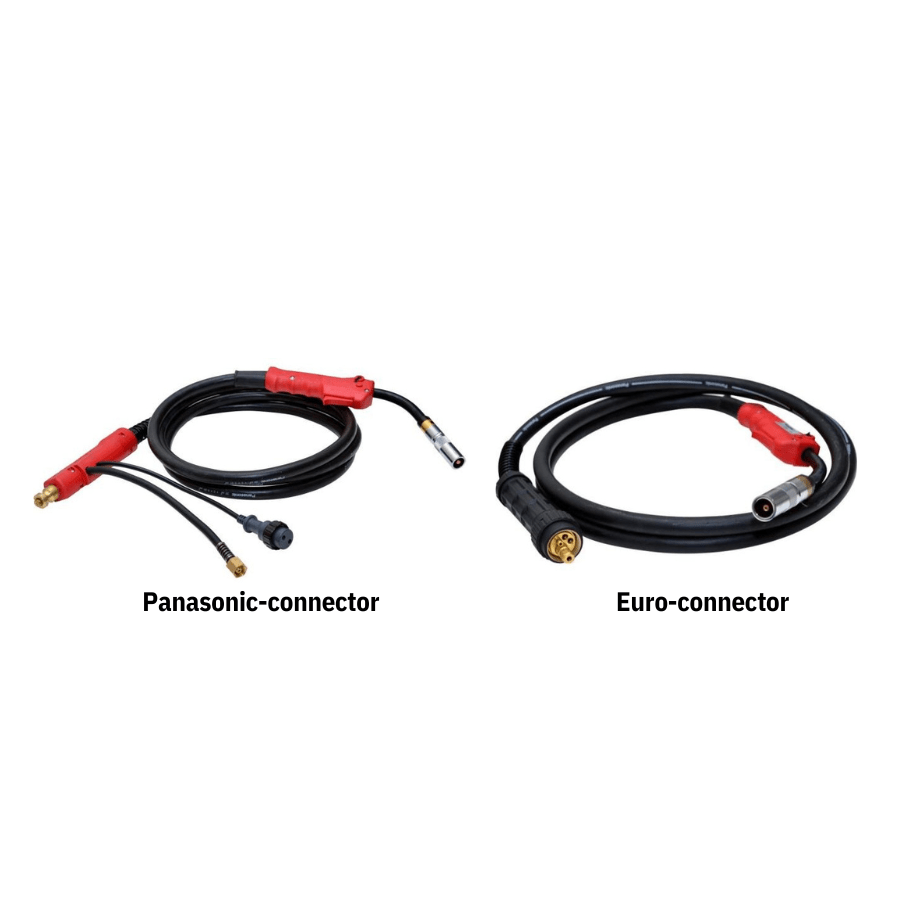

| Panasonic-connector | YT-20CS4DAE | YT-35CS4DA1 | YT-40CS4DAF | YT-50CS4DAF | |
| Euro-connector | YT-20CS4DE1 | YT-35CS4DE1 | YT-40CS4DE1 | YT-50CS4DE1 | |
| (#2 metre & 4.5 metre length also available on request) | |||||
